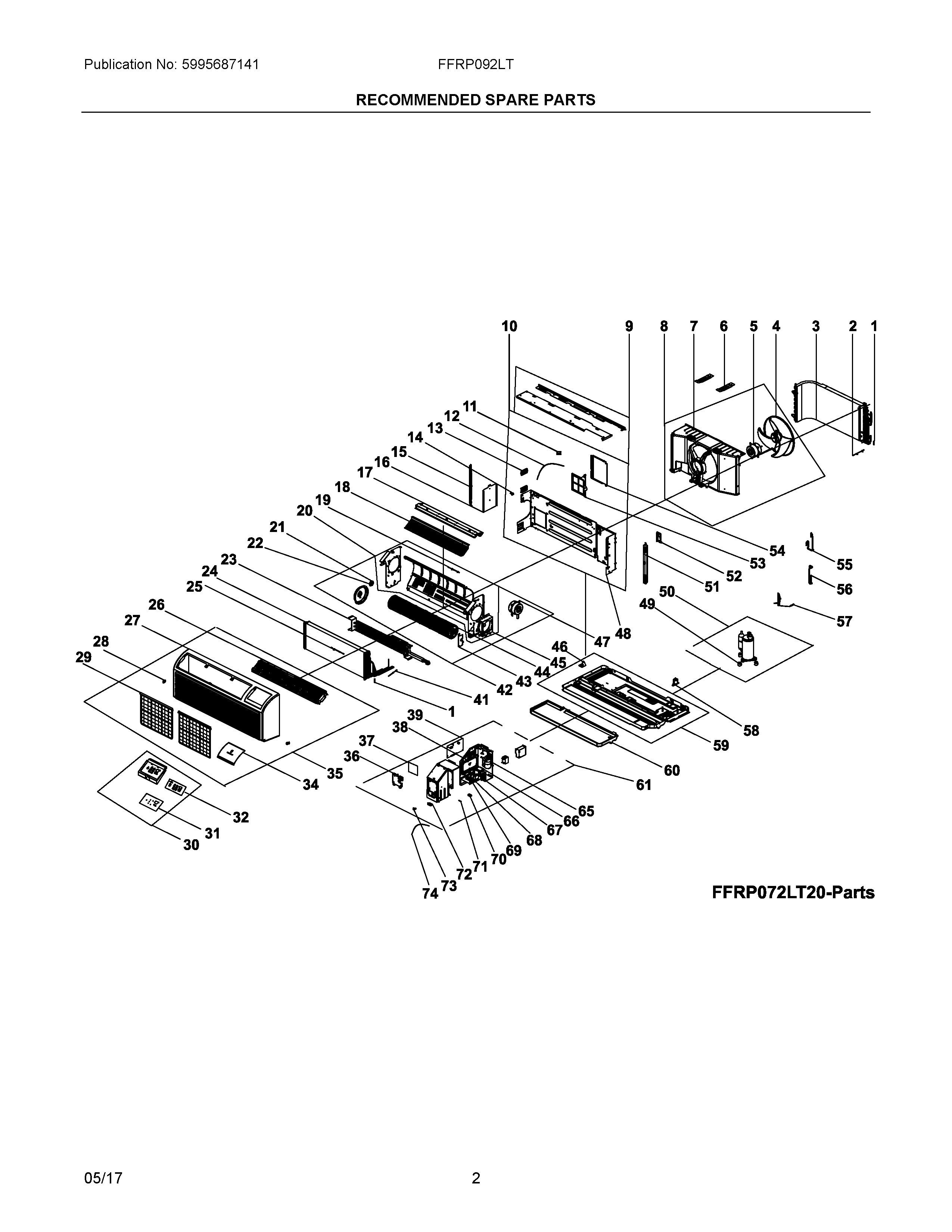

FFRP092LT20 02 – RECOMMENDED SPARE PARTS

FFRP092LT20 02 – RECOMMENDED SPARE PARTS

FFRP092LT20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1SLEEVE, TEMP SENSOR
2WCI 5304510599
3WCI 5304510600
45304483797 Frigidaire Air Conditioner Fan Blade
55304510604 Frigidaire Assembly Shroud
6WCI 5304510602
7WCI 5304510603
9WCI 5304510605
10WCI 5304510606
11CLAMP, PLASTIC, (2)
12WCI 5304510608
13WCI 5304510609
14WCI 5304510610
15SUPPORT, BULKHEAD, OUTER LEFT
16WCI 5304510611
17WCI 5304510612
18WCI 5304510613
19WCI 5304510614
20WCI 5304510615
21HOUSING, BEARING BLOCK
22WCI 5304510616
23WCI 5304510617
24WCI 5304510658
255304483971 Frigidaire Air Conditioner Sensor
265304483944 Frigidaire Air Conditioner Grill
275304483945 Frigidaire Air Conditioner Panel
28CLIP, MOUNTING, FRONT PANEL
295304525609 Frigidaire Air Conditioner Filter
305304510619 Frigidaire Air Conditioner Control Panel
31WCI 5304510620
325304510621 Frigidaire Air Conditioner Board
345304483961 Frigidaire Air Conditioner Cover
355304510622 Frigidaire Front Panel
36WCI 5304510623
375304510624 Frigidaire Air Conditioner PC Board
38WCI 5304510625
395304510626 Frigidaire Air Conditioner PC Board
415304459793 Frigidaire Air Conditioner Thermistor
42WCI 5304510659
43WCI 5304510628
445304510629 Frigidaire Wheel
45BRACKET, MOTOR SUPPORT
46WCI 5304510630
475304510661 Frigidaire Air Conditioner Motor
48CLAPBOARD
49WCI 5304510633
505304510662 Frigidaire Air Conditioner Compressor
51SUPPORT, BULKHEAD, OUTER RIGHT
52WCI 5304510635
53WCI 5304510636
54WCI 5304510637
555304510663 Frigidaire Air Conditioner Tube
56WCI 5304510664
575304510665 Frigidaire Air Conditioner Tube Assembly
58VALVE, DRAIN
59WCI 5304510641
60WCI 5304510642
615304510666 Frigidaire Air Conditioner Assembly Box
655304510667 Frigidaire Capacitor
665304483969 Frigidaire TRANSFORMER
675304510645 Frigidaire Capacitor
685304510668 Frigidaire Capacitor
695304459674 Frigidaire Air Conditioner Terminal Block
705304484110 Frigidaire Air Conditioner Heat Sink
715304510646 Frigidaire Air Conditioner Fuse
725304483950 Frigidaire Air Conditioner Connector
735304483970 Frigidaire Air Conditioner Terminal
74WCI 5304510647
