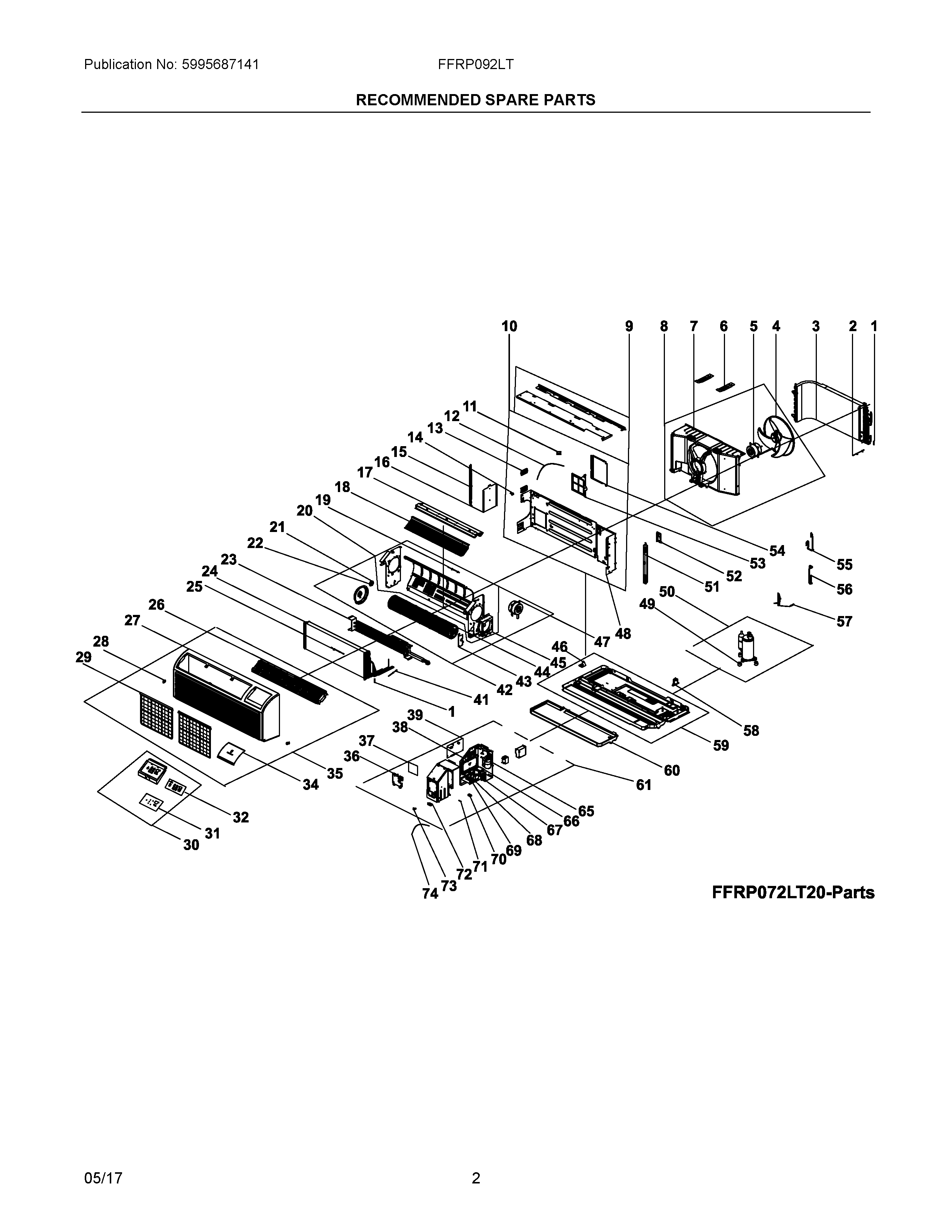

FFRP092LT30 02 – RECOMMENDED SPARE PARTSadmin2025-04-26T09:00:00+00:00FFRP092LT30 02 – RECOMMENDED SPARE PARTS
Products
| Position | Product |
|---|
| 1 | SLEEVE, TEMP SENSOR |
| 2 | WCI 5304510599 |
| 3 | WCI 5304510600 |
| 4 | 5304483797 Frigidaire Air Conditioner Fan Blade |
| 5 | 5304510604 Frigidaire Assembly Shroud |
| 6 | WCI 5304510602 |
| 7 | WCI 5304510603 |
| 9 | WCI 5304510605 |
| 10 | WCI 5304510606 |
| 11 | CLAMP, PLASTIC, (2) |
| 12 | WCI 5304510608 |
| 13 | WCI 5304510609 |
| 14 | WCI 5304510610 |
| 15 | SUPPORT, BULKHEAD, OUTER LEFT |
| 16 | WCI 5304510611 |
| 17 | WCI 5304510612 |
| 18 | WCI 5304510613 |
| 19 | WCI 5304510614 |
| 20 | WCI 5304510615 |
| 21 | HOUSING, BEARING BLOCK |
| 22 | WCI 5304510616 |
| 23 | WCI 5304510648 |
| 24 | WCI 5304510658 |
| 25 | 5304483971 Frigidaire Air Conditioner Sensor |
| 26 | 5304483944 Frigidaire Air Conditioner Grill |
| 27 | 5304483945 Frigidaire Air Conditioner Panel |
| 28 | CLIP, MOUNTING, FRONT PANEL |
| 29 | 5304525609 Frigidaire Air Conditioner Filter |
| 30 | 5304510619 Frigidaire Air Conditioner Control Panel |
| 31 | WCI 5304510620 |
| 32 | 5304510621 Frigidaire Air Conditioner Board |
| 34 | 5304483961 Frigidaire Air Conditioner Cover |
| 35 | 5304510622 Frigidaire Front Panel |
| 36 | WCI 5304510623 |
| 37 | 5304510624 Frigidaire Air Conditioner PC Board |
| 38 | WCI 5304510625 |
| 39 | 5304510626 Frigidaire Air Conditioner PC Board |
| 41 | 5304459793 Frigidaire Air Conditioner Thermistor |
| 42 | WCI 5304510660 |
| 43 | WCI 5304510628 |
| 44 | 5304510629 Frigidaire Wheel |
| 45 | BRACKET, MOTOR SUPPORT |
| 46 | WCI 5304510630 |
| 47 | 5304510661 Frigidaire Air Conditioner Motor |
| 48 | CLAPBOARD |
| 49 | WCI 5304510633 |
| 50 | 5304510662 Frigidaire Air Conditioner Compressor |
| 51 | SUPPORT, BULKHEAD, OUTER RIGHT |
| 52 | WCI 5304510635 |
| 53 | WCI 5304510636 |
| 54 | WCI 5304510637 |
| 55 | 5304510663 Frigidaire Air Conditioner Tube |
| 56 | WCI 5304510664 |
| 57 | 5304510665 Frigidaire Air Conditioner Tube Assembly |
| 58 | VALVE, DRAIN |
| 59 | WCI 5304510641 |
| 60 | WCI 5304510642 |
| 61 | 5304510666 Frigidaire Air Conditioner Assembly Box |
| 65 | 5304510667 Frigidaire Capacitor |
| 66 | 5304483969 Frigidaire TRANSFORMER |
| 67 | 5304510645 Frigidaire Capacitor |
| 68 | 5304510668 Frigidaire Capacitor |
| 69 | 5304459674 Frigidaire Air Conditioner Terminal Block |
| 70 | 5304484110 Frigidaire Air Conditioner Heat Sink |
| 71 | 5304510646 Frigidaire Air Conditioner Fuse |
| 72 | 5304483950 Frigidaire Air Conditioner Connector |
| 73 | 5304483970 Frigidaire Air Conditioner Terminal |
| 74 | 5304510651 Frigidaire Air Conditioner Power Cord |
