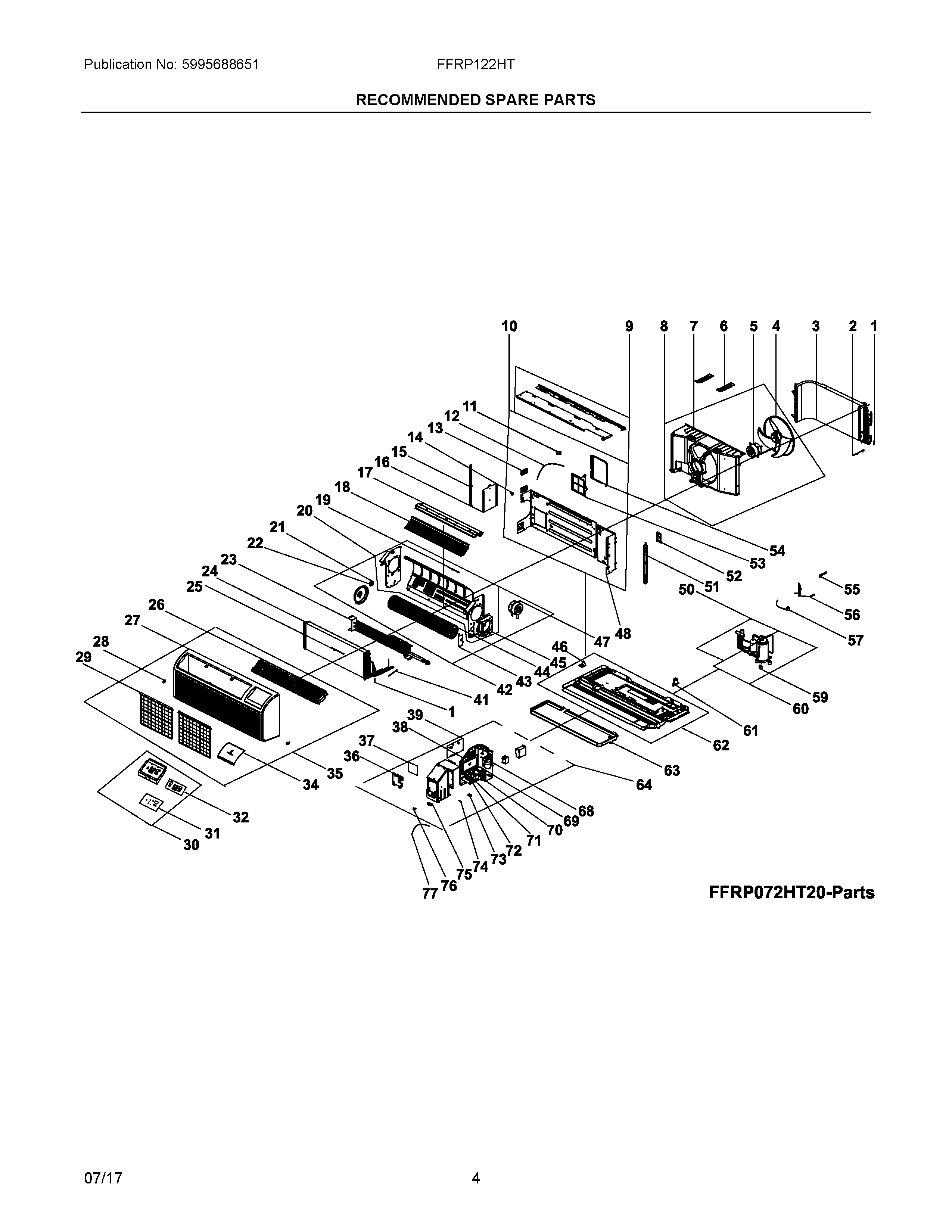

FFRP122HT30 02 – RECOMMENDED SPARE PARTS

FFRP122HT30 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRP122HT30 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1SLEEVE, TEMP SENSOR
2WCI 5304510599
3WCI 5304510684
45304483797 Frigidaire Air Conditioner Fan Blade
55304510673 Frigidaire Motor
6WCI 5304510602
7WCI 5304510603
8WCI 5304510674
9WCI 5304510605
10WCI 5304510606
11CLAMP, PLASTIC, (2)
12WCI 5304510608
13WCI 5304510609
14WCI 5304510610
15SUPPORT, BULKHEAD, OUTER LEFT
16WCI 5304510611
17WCI 5304510612
18WCI 5304510613
19WCI 5304510614
20WCI 5304510615
21HOUSING, BEARING BLOCK
22WCI 5304510616
23WCI 5304510648
24WCI 5304510676
255304483971 Frigidaire Air Conditioner Sensor
265304483944 Frigidaire Air Conditioner Grill
275304483945 Frigidaire Air Conditioner Panel
28CLIP, MOUNTING, FRONT PANEL
295304525609 Frigidaire Air Conditioner Filter
305304510619 Frigidaire Air Conditioner Control Panel
31WCI 5304510620
325304510621 Frigidaire Air Conditioner Board
345304483961 Frigidaire Air Conditioner Cover
355304510622 Frigidaire Front Panel
36WCI 5304510623
375304510654 Frigidaire Pc Board
38WCI 5304510625
395304510626 Frigidaire Air Conditioner PC Board
415304459793 Frigidaire Air Conditioner Thermistor
42WCI 5304510677
43WCI 5304510628
445304510629 Frigidaire Wheel
45BRACKET, MOTOR SUPPORT
46WCI 5304510630
475304510678 Frigidaire Air Conditioner Motor
48CLAPBOARD
50WCI 5304510685
51SUPPORT, BULKHEAD, OUTER RIGHT
52WCI 5304510635
53WCI 5304510636
54WCI 5304510637
55VALVE, 1-WAY
565304510686 Frigidaire Air Conditioner Assembly-Tube
57COIL, 4-WAY VALVE, MAGNETIC
59WCI 5304510633
605304510679 Frigidaire Air Conditioner Compressor
61VALVE, DRAIN
62WCI 5304510641
63WCI 5304510642
64WCI 5304510687
68WCI 5304503727
695304483969 Frigidaire TRANSFORMER
705304508682 Frigidaire Air Conditioner Capacitor
715304508681 Frigidaire Air Conditioner Capacitor
725304459674 Frigidaire Air Conditioner Terminal Block
735304484110 Frigidaire Air Conditioner Heat Sink
745304510646 Frigidaire Air Conditioner Fuse
755304483950 Frigidaire Air Conditioner Connector
765304483970 Frigidaire Air Conditioner Terminal
775304510651 Frigidaire Air Conditioner Power Cord
