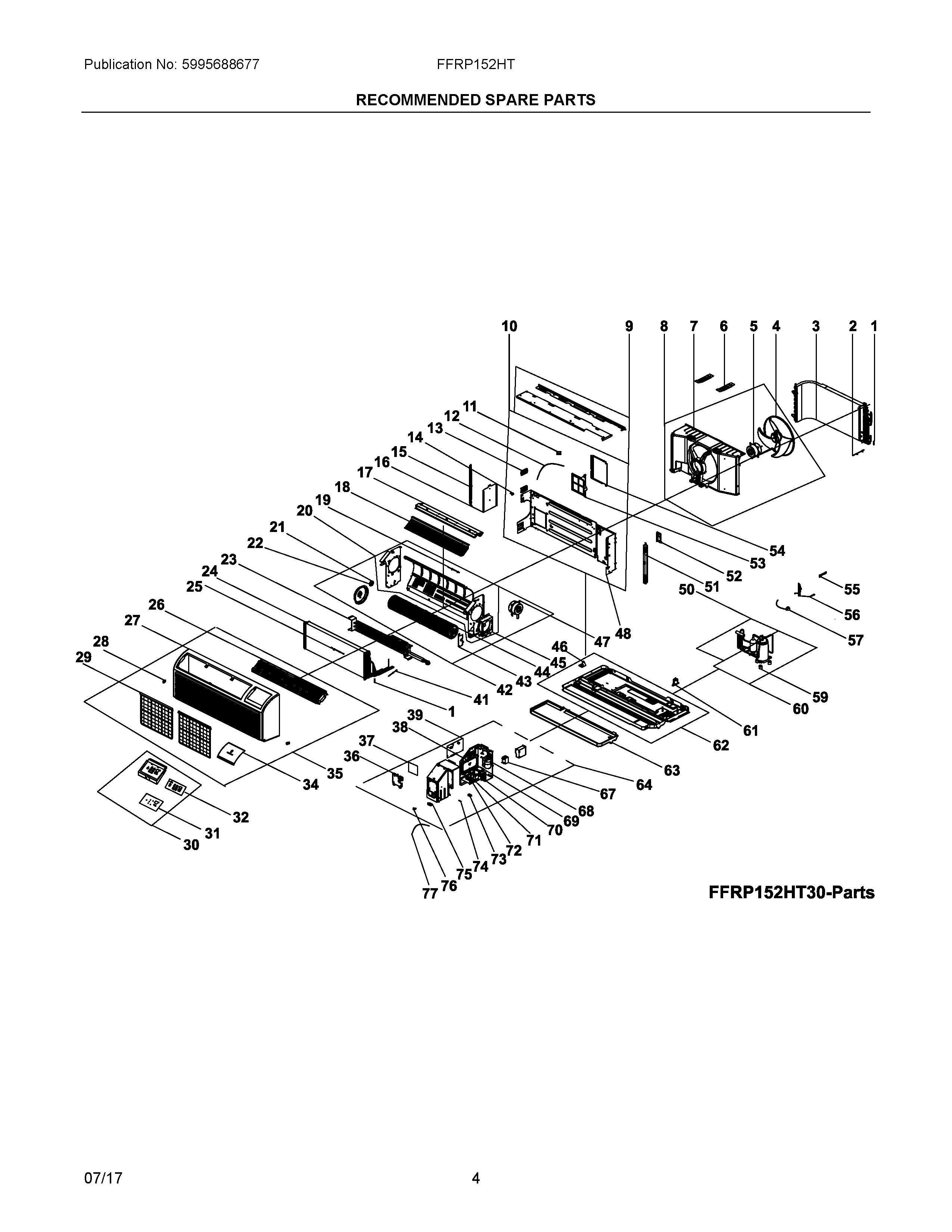

FFRP152HT60 02 – RECOMMENDED SPARE PARTS

FFRP152HT60 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRP152HT60 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1SLEEVE, TEMP SENSOR
2WCI 5304510599
3WCI 5304510698
45304483797 Frigidaire Air Conditioner Fan Blade
55304510791 Frigidaire Motor
6WCI 5304510602
7WCI 5304510603
8WCI 5304510792
9WCI 5304510605
10WCI 5304510606
11CLAMP, PLASTIC, (2)
12WCI 5304510608
13WCI 5304510609
14WCI 5304510610
15SUPPORT, BULKHEAD, OUTER LEFT
16WCI 5304510611
17WCI 5304510612
18WCI 5304510613
19WCI 5304510614
20WCI 5304510615
21HOUSING, BEARING BLOCK
22WCI 5304510616
235304510772 Frigidaire Heater Air Conditioner
24WCI 5304510676
255304483971 Frigidaire Air Conditioner Sensor
265304483944 Frigidaire Air Conditioner Grill
275304483945 Frigidaire Air Conditioner Panel
28CLIP, MOUNTING, FRONT PANEL
295304525609 Frigidaire Air Conditioner Filter
30CONTROL PANEL, ASSEMBLY, W/BOARD-OVERLAY
31WCI 5304510620
325304510621 Frigidaire Air Conditioner Board
345304483961 Frigidaire Air Conditioner Cover
35FRONT PANEL, ASSEMBLY, W/FILTERS
36WCI 5304510623
37WCI 5304510702
38WCI 5304510625
395304510764 Frigidaire PC Board
415304459793 Frigidaire Air Conditioner Thermistor
42WCI 5304510801
43WCI 5304510628
445304510629 Frigidaire Wheel
45BRACKET, MOTOR SUPPORT
46WCI 5304510630
475304510794 Frigidaire Motor
48CLAPBOARD
50WCI 5304510812
51SUPPORT, BULKHEAD, OUTER RIGHT
52WCI 5304510635
53WCI 5304510636
54WCI 5304510637
55VALVE, 1-WAY
56WCI 5304510813
57COIL
59WCI 5304460010
60WCI 5304510802
61VALVE, DRAIN
62WCI 5304510806
63WCI 5304510642
64WCI 5304510800
685304510667 Frigidaire Capacitor
69TRANSFORMER
705304508682 Frigidaire Air Conditioner Capacitor
715304510668 Frigidaire Capacitor
725304459674 Frigidaire Air Conditioner Terminal Block
735304484110 Frigidaire Air Conditioner Heat Sink
745304510771 Frigidaire Fuse
755304483950 Frigidaire Air Conditioner Connector
765304483970 Frigidaire Air Conditioner Terminal
775304510775 Frigidaire Cord
