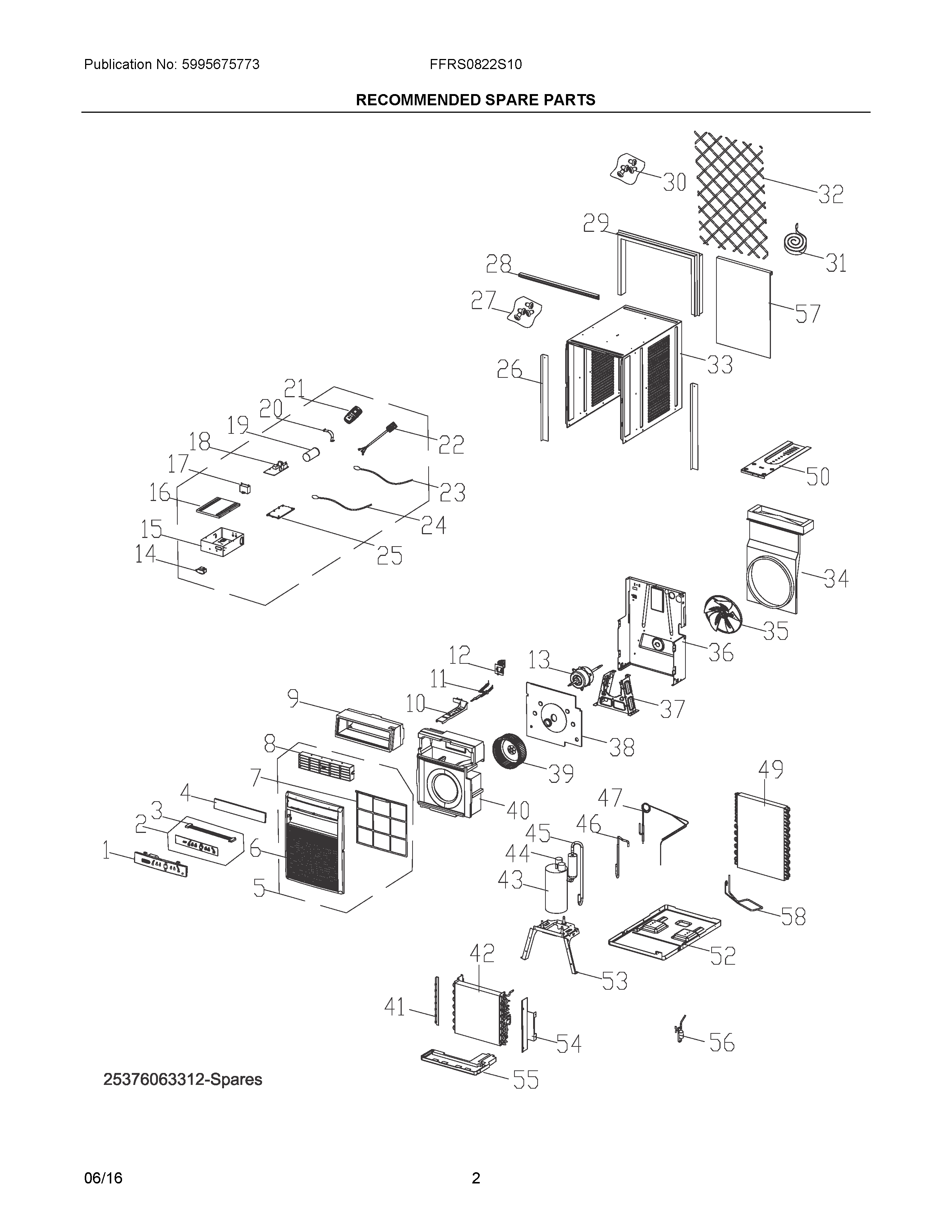

FFRS0822S10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Control Panel,with overlay
25304500946 Frigidaire PC Board Air Conditioner
35304480400 Frigidaire Air Conditioner Wire
4WCI 5304476461
55304525590 Frigidaire Air Conditioner Front Assembly
65304500947 Frigidaire Panel
75304525657 Frigidaire Filter
85304476465 Frigidaire LOUVER ASSEMBLY
9WCI 5304487580
105304476466 Frigidaire SUPPORT
11WCI 5304476467
125304471356 Frigidaire DOOR
13WCI 5304501880
145304470989 Frigidaire Air Conditioner Transformer
15WCI 5304500948
16WCI 5304500949
17WCI 5304487581
185304495510 Frigidaire Air Conditioner PC Board
195304473968 Frigidaire CAPACITOR
20WCI 5304471070
21WCI 5304476904
22WCI 5304500950
235304499959 Frigidaire Thermistor
245304500951 Frigidaire Thermistor
25WCI 5304495029
26WCI 5304476474
275304471644 Frigidaire Screw KIT
28WCI 5304476475
295304495780 Frigidaire Frame
305304524246 Frigidaire Installation Kit
31WCI 5304471646
32WCI 5304476477
33WCI 5304476503
34WCI 5304500952
355304471366 Frigidaire Air Conditioner Fan Blade
36WCI 5304487591
37WCI 5304500953
38WCI 5304487590
395304499958 Frigidaire Blower Wheel
40WCI 5304487592
41WCI 5304476504
42WCI 5304496181
435304489721 Frigidaire Air Conditioner Compressor
445304492022 Frigidaire Air Conditioner Overload Protector
45WCI 5304496187
46WCI 5304496188
47WCI 5304496183
495304500959 Frigidaire Condenser
50WCI 5304476494
52WCI 5304500960
535304500961 Frigidaire Base
54WCI 5304476512
55WCI 5304471379
565304476367 Frigidaire Air Conditioner Filter Drier
575304491890 Frigidaire Air Conditioner Panel
58WCI 5304500962
