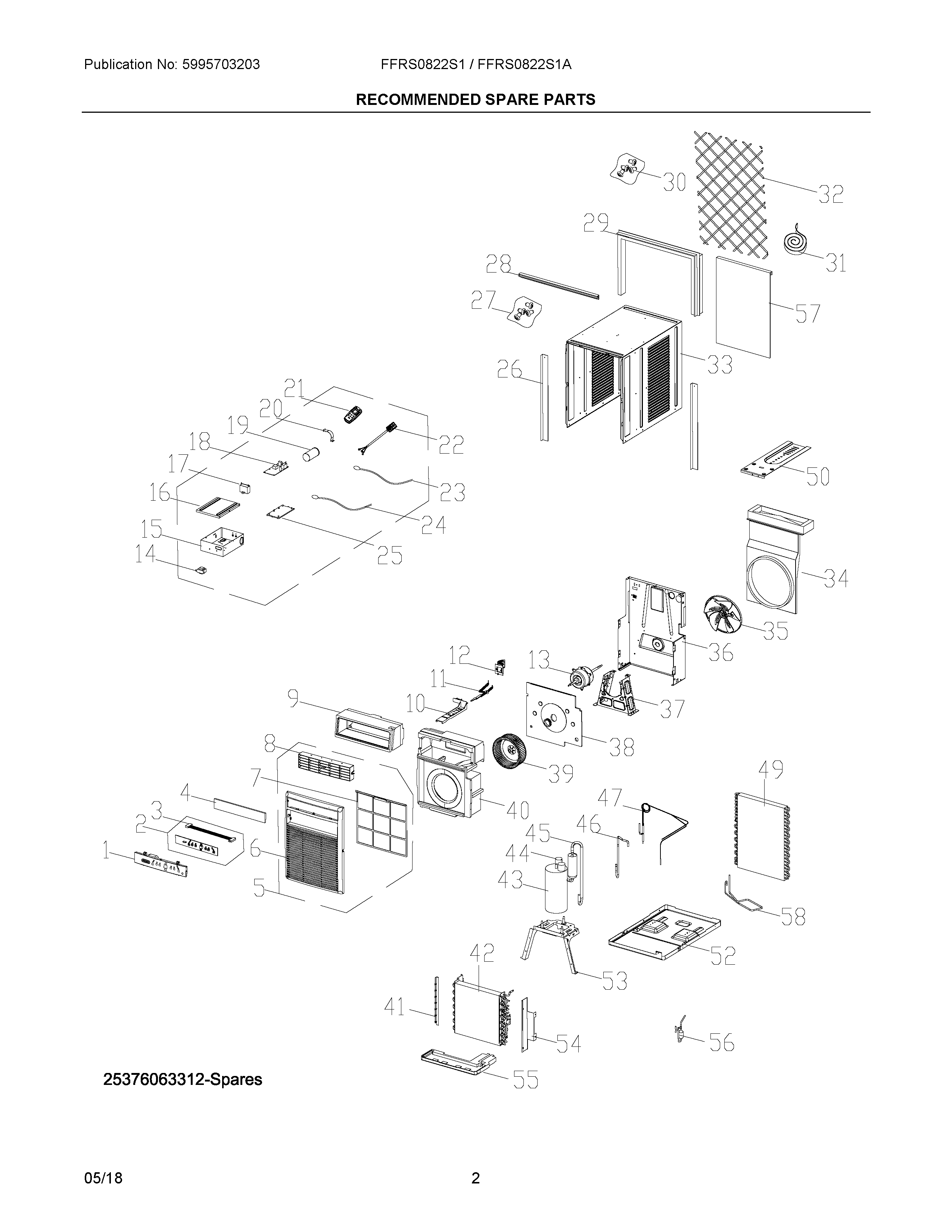

FFRS0822S11 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Control Panel,with overlay
2	5304500946 Frigidaire PC Board Air Conditioner
3	5304480400 Frigidaire Air Conditioner Wire
4	WCI 5304476461
5	5304525590 Frigidaire Air Conditioner Front Assembly
6	5304500947 Frigidaire Panel
7	5304525657 Frigidaire Filter
8	5304476465 Frigidaire LOUVER ASSEMBLY
9	WCI 5304487580
10	5304476466 Frigidaire SUPPORT
11	WCI 5304476467
12	5304471356 Frigidaire DOOR
13	WCI 5304501880
14	5304470989 Frigidaire Air Conditioner Transformer
15	WCI 5304512414
16	WCI 5304500949
17	WCI 5304512415
18	5304512416 Frigidaire Air Conditioner Pc Board
19	CAPACITOR, COMPRESSOR
20	WCI 5304512417
21	WCI 5304476904
22	WCI 5304512418
23	5304512419 Frigidaire Thermistor
24	5304512420 Frigidaire Thermistor
26	WCI 5304476474
27	5304471644 Frigidaire Screw KIT
28	WCI 5304476475
29	5304495780 Frigidaire Frame
30	5304524246 Frigidaire Installation Kit
31	WCI 5304471646
32	WCI 5304476477
33	WCI 5304476503
34	WCI 5304500952
35	5304471366 Frigidaire Air Conditioner Fan Blade
36	WCI 5304487591
37	WCI 5304500953
38	WCI 5304487590
39	5304499958 Frigidaire Blower Wheel
40	WCI 5304487592
41	WCI 5304476504
42	WCI 5304496181
43	5304489721 Frigidaire Air Conditioner Compressor
44	5304492022 Frigidaire Air Conditioner Overload Protector
45	WCI 5304496187
46	WCI 5304496188
47	WCI 5304496183
49	5304500959 Frigidaire Condenser
50	WCI 5304476494
52	WCI 5304500960
53	5304500961 Frigidaire Base
54	WCI 5304476512
55	WCI 5304471379
56	5304476367 Frigidaire Air Conditioner Filter Drier
57	5304491890 Frigidaire Air Conditioner Panel
58	WCI 5304500962
