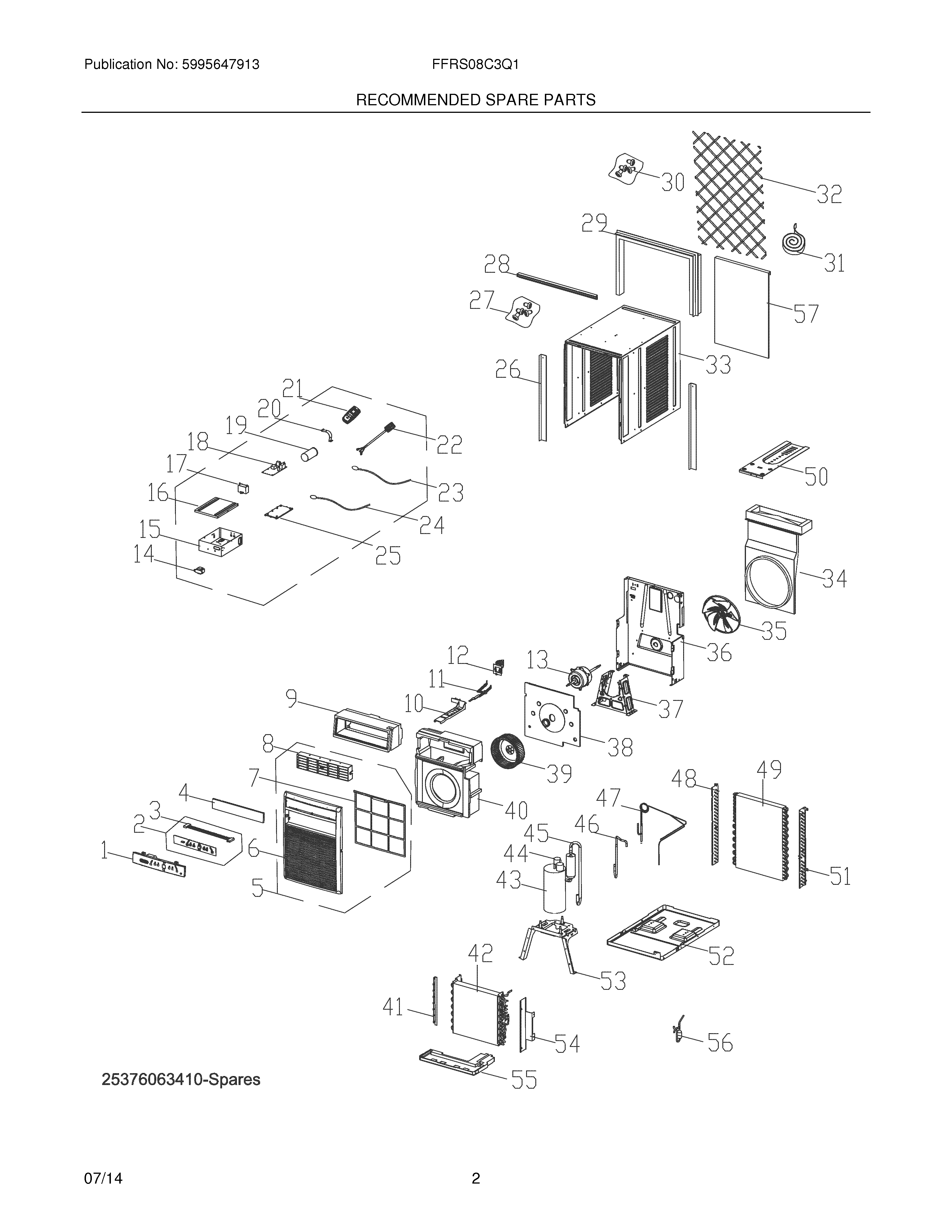

FFRS08C3Q10 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	CONTROL PANEL, WITH OVERLAY
2	5304476460 Frigidaire Air Conditioner PC Board
3	5304480400 Frigidaire Air Conditioner Wire
4	WCI 5304476461
5	5304525590 Frigidaire Air Conditioner Front Assembly
6	WCI 5304476463
7	5304525657 Frigidaire Filter
8	5304476465 Frigidaire LOUVER ASSEMBLY
9	WCI 5304487580
10	5304476466 Frigidaire SUPPORT
11	WCI 5304476467
12	5304471356 Frigidaire DOOR
13	5304477285 Frigidaire MOTOR
14	5304470989 Frigidaire Air Conditioner Transformer
15	WCI 5304491887
16	WCI 5304476469
17	WCI 5304487581
18	WCI 5304495779
19	5304471387 Frigidaire Capacitor
20	WCI 5304487586
21	WCI 5304476904
22	WCI 5304476472
23	WCI 5304487589
24	WCI 5304476473
25	WCI 5304495029
26	WCI 5304476474
27	5304471644 Frigidaire Screw KIT
28	WCI 5304476475
29	5304495780 Frigidaire Frame
30	5304524246 Frigidaire Installation Kit
31	WCI 5304471646
32	WCI 5304476477
33	WCI 5304476503
34	WCI 5304471367
35	5304471366 Frigidaire Air Conditioner Fan Blade
36	WCI 5304487591
37	WCI 5304477290
38	WCI 5304487590
39	WCI 5304471360
40	WCI 5304487592
41	WCI 5304476504
42	WCI 5304496181
43	WCI 5304493827
44	WCI 5304495930
45	WCI 5304496180
46	WCI 5304495786
47	WCI 5304496183
48	WCI 5304476509
49	WCI 5304487597
50	WCI 5304476494
51	WCI 5304476511
52	WCI 5304476496
53	WCI 5304476497
54	WCI 5304476512
55	WCI 5304471379
56	5304476367 Frigidaire Air Conditioner Filter Drier
57	5304491890 Frigidaire Air Conditioner Panel
