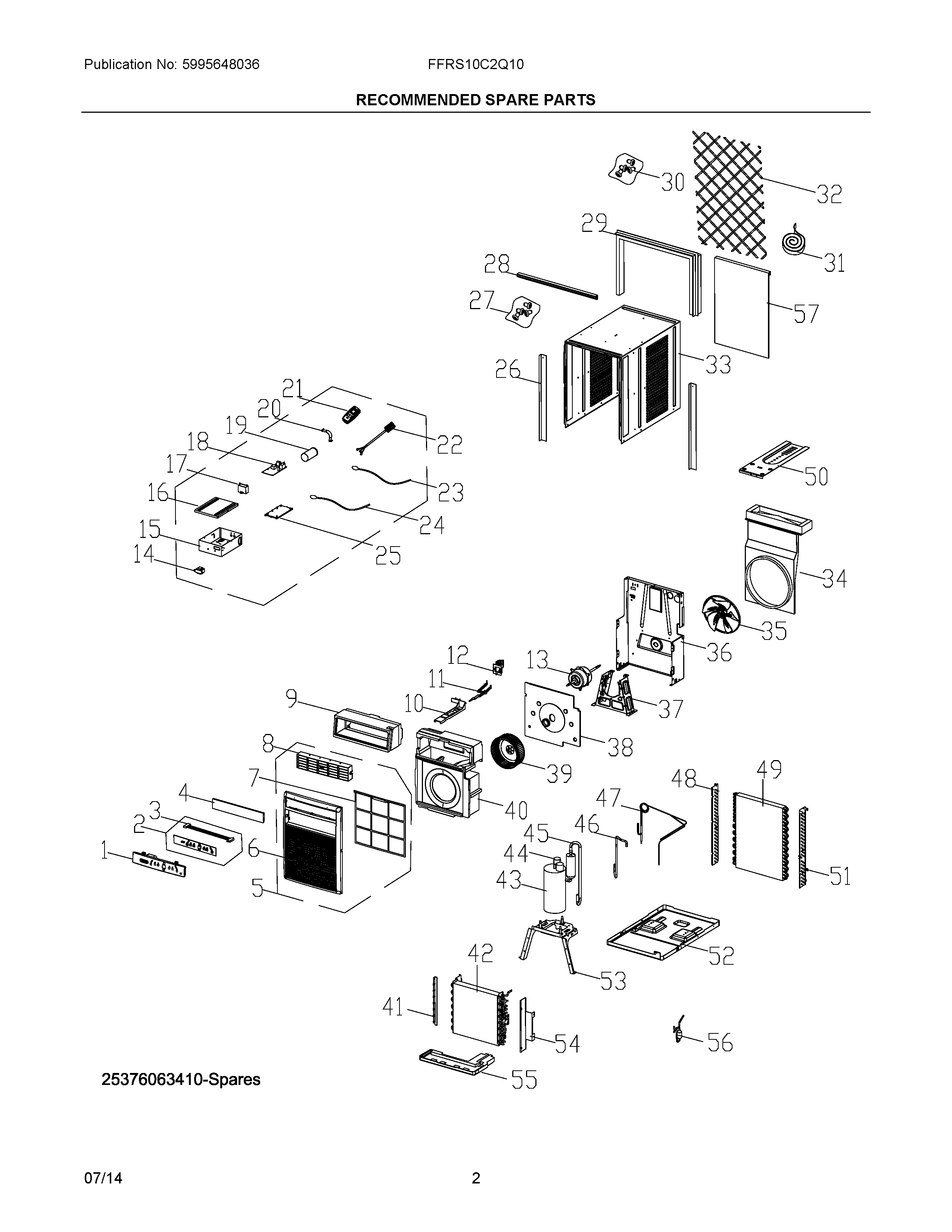

FFRS10C2Q10 02 – RECOMMENDED SPARE PARTS

FFRS10C2Q10 02 – RECOMMENDED SPARE PARTS

Written by

in

FFRS10C2Q10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Control Panel,with overlay
25304476460 Frigidaire Air Conditioner PC Board
35304480400 Frigidaire Air Conditioner Wire
4WCI 5304476461
5WCI 5304477276
6WCI 5304476463
75304525657 Frigidaire Filter
85304476465 Frigidaire LOUVER ASSEMBLY
9WCI 5304487580
105304476466 Frigidaire SUPPORT
11WCI 5304476467
125304471356 Frigidaire DOOR
13WCI 5304475761
145304470989 Frigidaire Air Conditioner Transformer
15WCI 5304491887
16WCI 5304476469
175304483052 Frigidaire Air Conditioner Capacitor
18WCI 5304495779
195304471387 Frigidaire Capacitor
20WCI 5304487586
21WCI 5304476904
22WCI 5304476502
235304483216 Frigidaire Air Conditioner Sensor
24WCI 5304476473
25WCI 5304495029
26WCI 5304476474
275304471644 Frigidaire Screw KIT
28WCI 5304476475
295304495780 Frigidaire Frame
305304524246 Frigidaire Installation Kit
31WCI 5304471646
32WCI 5304476477
33WCI 5304476503
34WCI 5304471367
355304471366 Frigidaire Air Conditioner Fan Blade
36WCI 5304487591
37WCI 5304477290
38WCI 5304487590
39WCI 5304471360
40WCI 5304487592
41WCI 5304476504
42WCI 5304487593
43Compressor,with overload
44WCI 5304496186
45WCI 5304496187
46WCI 5304496188
47WCI 5304487596
48WCI 5304476509
49WCI 5304487597
50WCI 5304476494
51WCI 5304476511
52WCI 5304476496
53WCI 5304476497
54WCI 5304476512
55WCI 5304471379
565304476367 Frigidaire Air Conditioner Filter Drier
575304491890 Frigidaire Air Conditioner Panel
