FFRU17B2QWB 03 – CABINET

FFRU17B2QWB 03 – CABINET

Written by

in

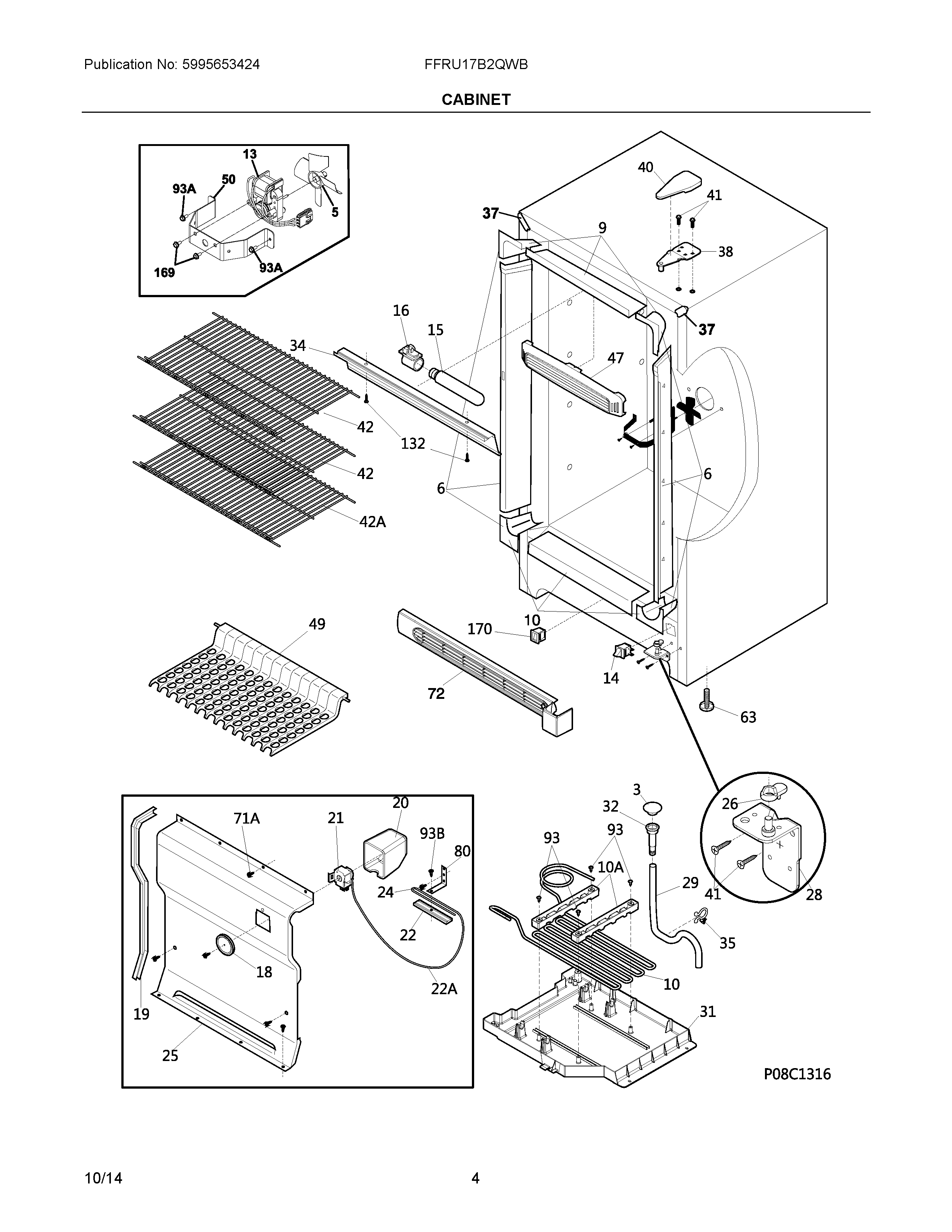

FFRU17B2QWB 03 – CABINET

Products

PositionProduct
NIBBracket,RH leg levelor
NI216502400 Frigidaire Refrigerator Grommet Unit
NI297001704 Frigidaire Refrigerator Insulation
NIABracket,LH leg levelor
NIWCI 5303313703
NIWCI 216946200
NIWCI 5304495698
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297435601 Frigidaire Breaker
9297403901 Frigidaire Refrigerator Breaker
10297403902 Frigidaire Refrigerator Breaker
10AWCI 297177400
10AWCI 297334500
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
21297415203 Frigidaire Refrigerator Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26297415900 Frigidaire Door Closer Ramp
28297416301 Frigidaire Refrigerator Hinge
295304512272 Frigidaire Hose Drain
31297165804 Frigidaire Refrigerator Pan-Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
40297164400 Frigidaire Refrigerator Hinge Cover
41240578902 Frigidaire Screw Mounting Hinge
42A297441901 Frigidaire Refrigerator Shelf
42WCI 297441905
47297192903 Frigidaire Refrigerator Baffle
49216937701 Frigidaire Refrigerator Trivet
50WCI 08013207
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297387920 Frigidaire Refrigerator Kickplate/Grille
79301036 Frigidaire Refrigerator Insert Nut
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
132WCI 5304460601
169216912401 Frigidaire Refrigerator Screw
170297280400 Frigidaire Refrigerator Valve
