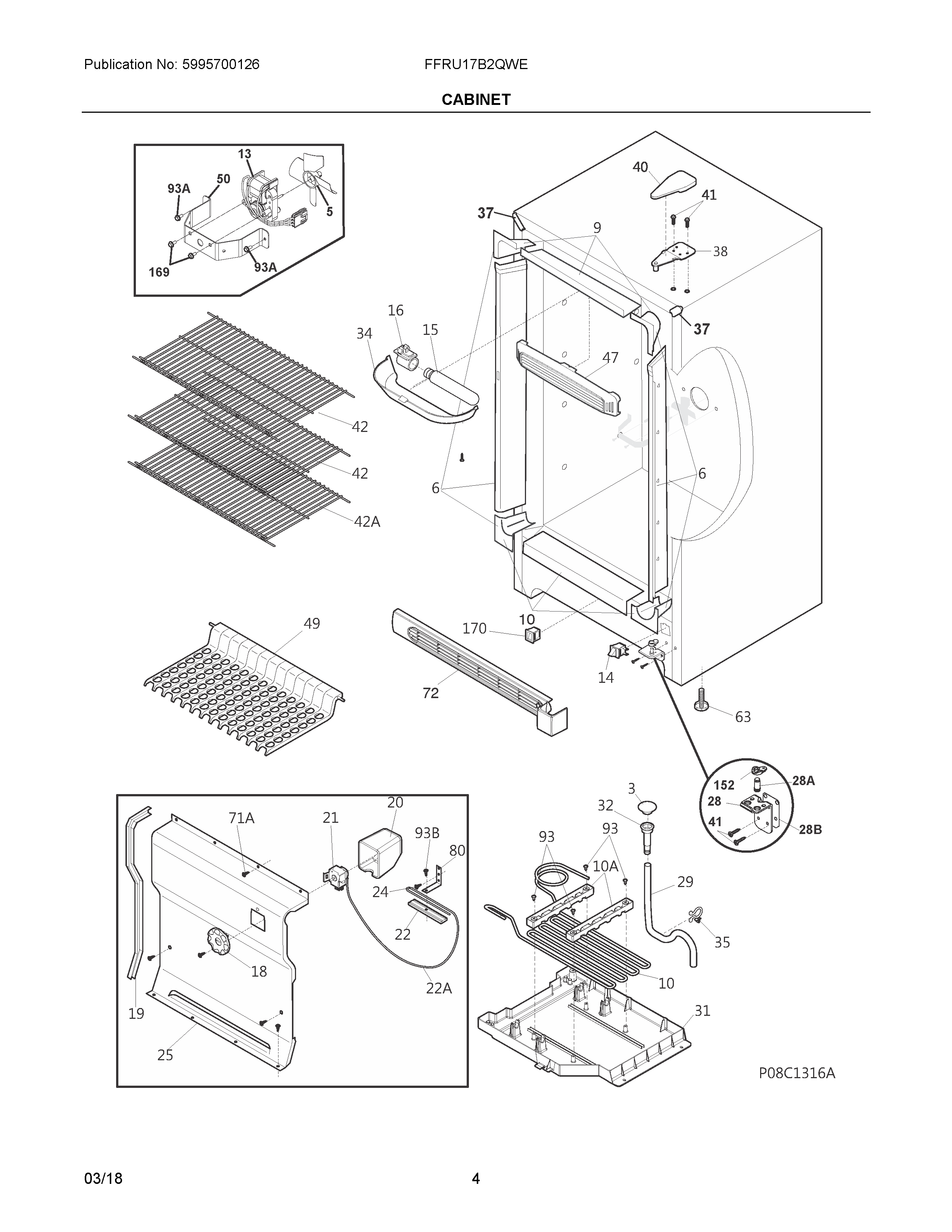

FFRU17B2QWE 03 – CABINET

FFRU17B2QWE 03 – CABINET

Written by

in

FFRU17B2QWE 03 – CABINET

Products

Position	Product
NI	216858001 Frigidaire Refrigerator Screw
NIB	Bracket,RH leg levelor
NIA	Bracket,LH leg levelor
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	216337701 Frigidaire Refrigerator Screw
NI	5304498525 Frigidaire Service Data Sheet
NI	WCI 5304508333
NI	WCI 5303313703
NI	WCI 216946200
NI	5304509705 Frigidaire Refrigerator Grommet
3	216503100 Frigidaire Refrigerator Screen-Drain
5	FAN BLADE, EVAPORATOR
6	297435601 Frigidaire Breaker
9	297403901 Frigidaire Refrigerator Breaker
10A	WCI 297334500
10A	WCI 297177400
10	297403902 Frigidaire Refrigerator Breaker
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	297415203 Frigidaire Refrigerator Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	297415900 Frigidaire Door Closer Ramp
28A	297438300 Frigidaire Refrigerator Pin
28	297416301 Frigidaire Refrigerator Hinge
29	5304510353 Frigidaire Refrigerator Hose
31	297165804 Frigidaire Refrigerator Pan-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42A	297441901 Frigidaire Refrigerator Shelf
42	WCI 5304509721
47	297192903 Frigidaire Refrigerator Baffle
49	216937701 Frigidaire Refrigerator Trivet
50	WCI 08013207
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387920 Frigidaire Refrigerator Kickplate/Grille
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93A	241853202 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
