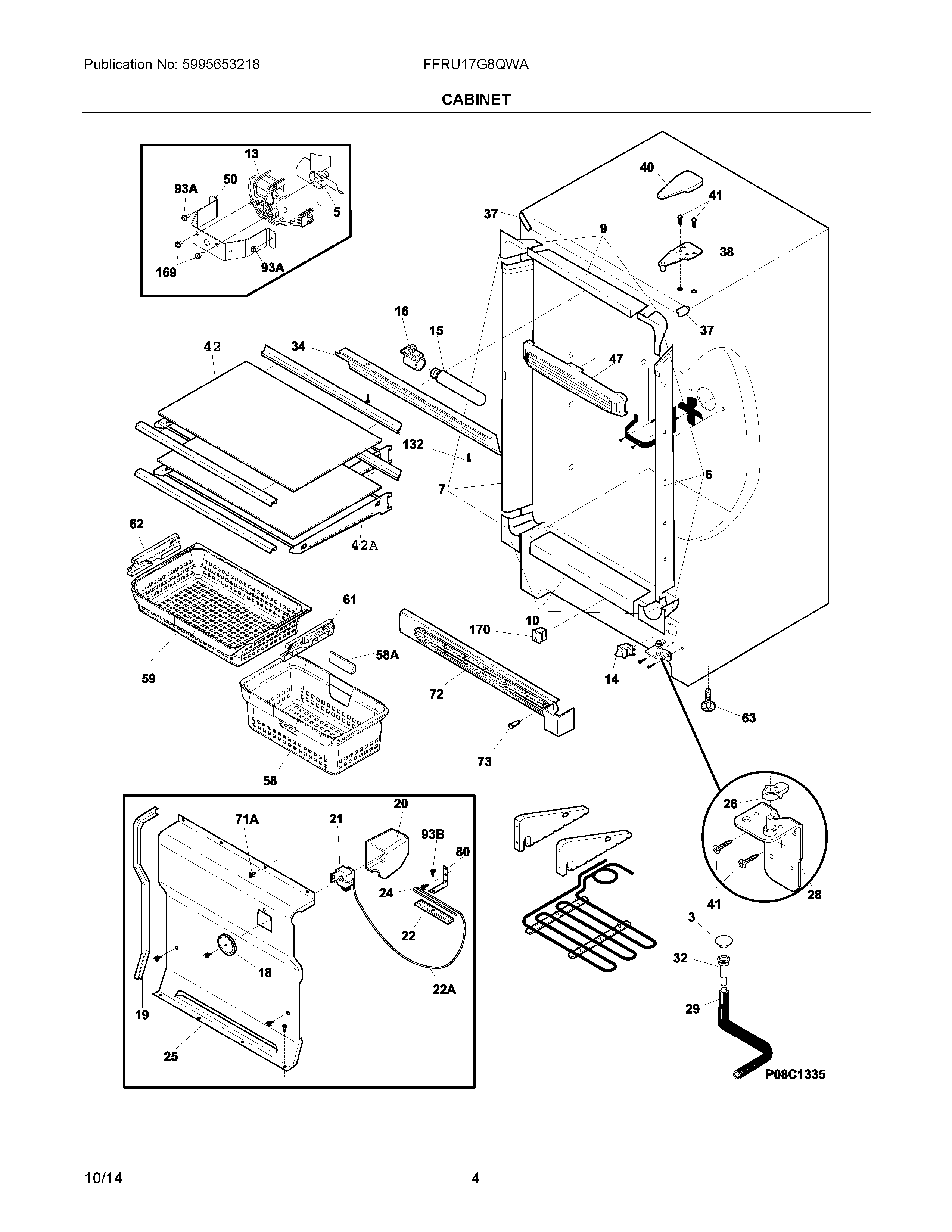

FFRU17G8QWA 03 – CABINET

FFRU17G8QWA 03 – CABINET

Written by

in

FFRU17G8QWA 03 – CABINET

Products

Position	Product
NI	WCI 5303313703
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	297001704 Frigidaire Refrigerator Insulation
NIC	808408304 Frigidaire Refrigerator Clip
NIB	WCI 5304494017
NIAA	HANDLE BASKET, FREEZER GRE
NIA	Bracket,LH leg levelor
NIB	Bracket,RH leg levelor
NI	216337701 Frigidaire Refrigerator Screw
NI	WCI 5304495698
3	216503100 Frigidaire Refrigerator Screen-Drain
5	FAN BLADE, EVAPORATOR
6	297435601 Frigidaire Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
10A	WCI 297334500
10A	WCI 297177400
12	WCI 242062801
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	297415203 Frigidaire Refrigerator Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	Screw,type A ,10-24 x 3/8
26	297415900 Frigidaire Door Closer Ramp
28	297416301 Frigidaire Refrigerator Hinge
29	5304512272 Frigidaire Hose Drain
31A	297165804 Frigidaire Refrigerator Pan-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42A	5304497872 Frigidaire Refrigerator Shelf
42	WCI 297441905
47	297192903 Frigidaire Refrigerator Baffle
50	WCI 08013207
58	808618002 Frigidaire Refrigerator Basket
58A	808408301 Frigidaire Refrigerator Clip
59A	STOP-BASKET, (2)
59	808617902 Frigidaire Refrigerator Mid Level Basket
61	808902901 Frigidaire Hanging Basket Hanger
62	808902902 Frigidaire Hanging Basket Support, Left Hand
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387920 Frigidaire Refrigerator Kickplate/Grille
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
132	WCI 5304460601
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
