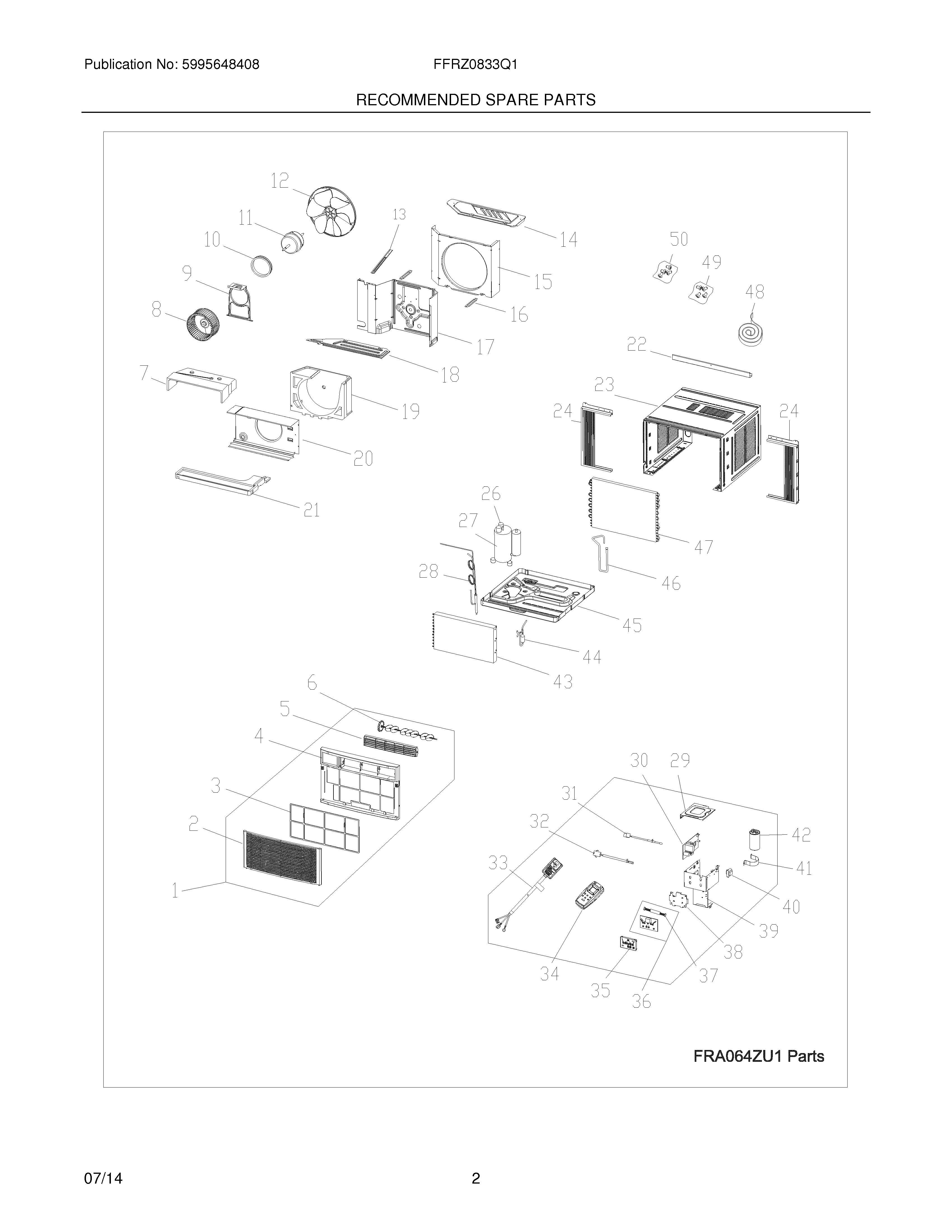

FFRZ0833Q10 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	5304525586 Frigidaire Air Conditioner Front Assembly
2	WCI 5304476382
3	WCI 5304476383
4	WCI 5304476384
5	5304476385 Frigidaire LOUVER
6	5304476386 Frigidaire Louver Assembly
7	WCI 5304487601
8	WCI 5304471283
9	WCI 5304471285
10	WCI 5304471286
11	WCI 5304471284
12	5304471287 Frigidaire Air Conditioner Fan Blade
13	WCI 5304471254
14	WCI 5304471288
15	WCI 5304483211
16	WCI 5304471253
17	WCI 5304487602
18	WCI 5304476388
19	WCI 5304471247
20	WCI 5304495588
21	WCI 5304471265
22	Rail,shutter ,top channel
23	Cabinet,wrapper/sleeve
24	Window Filler Kit,slider panels ,accordion
26	5304492022 Frigidaire Air Conditioner Overload Protector
27	5304489721 Frigidaire Air Conditioner Compressor
28	WCI 5304496363
29	WCI 5304476396
30	WCI 5304496357
31	5304512374 Frigidaire Air Conditioner Sensor
32	5304512375 Frigidaire Air Conditioner Sensor
33	WCI 5304476457
34	WCI 5304476904
35	WCI 5304496358
36	WCI 5304471270
37	WCI 5304482531
38	WCI 5304471271
39	WCI 5304487605
40	5304470989 Frigidaire Air Conditioner Transformer
41	Strap,capacitor clamp
42	WCI 5304476003
43	WCI 5304496364
44	5304476367 Frigidaire Air Conditioner Filter Drier
45	WCI 5304496360
46	WCI 5304496365
47	WCI 5304496366
48	Seal kit,window ,foam strips
49	Hardware Kit,installation
50	Screw Kit,top rail mount
