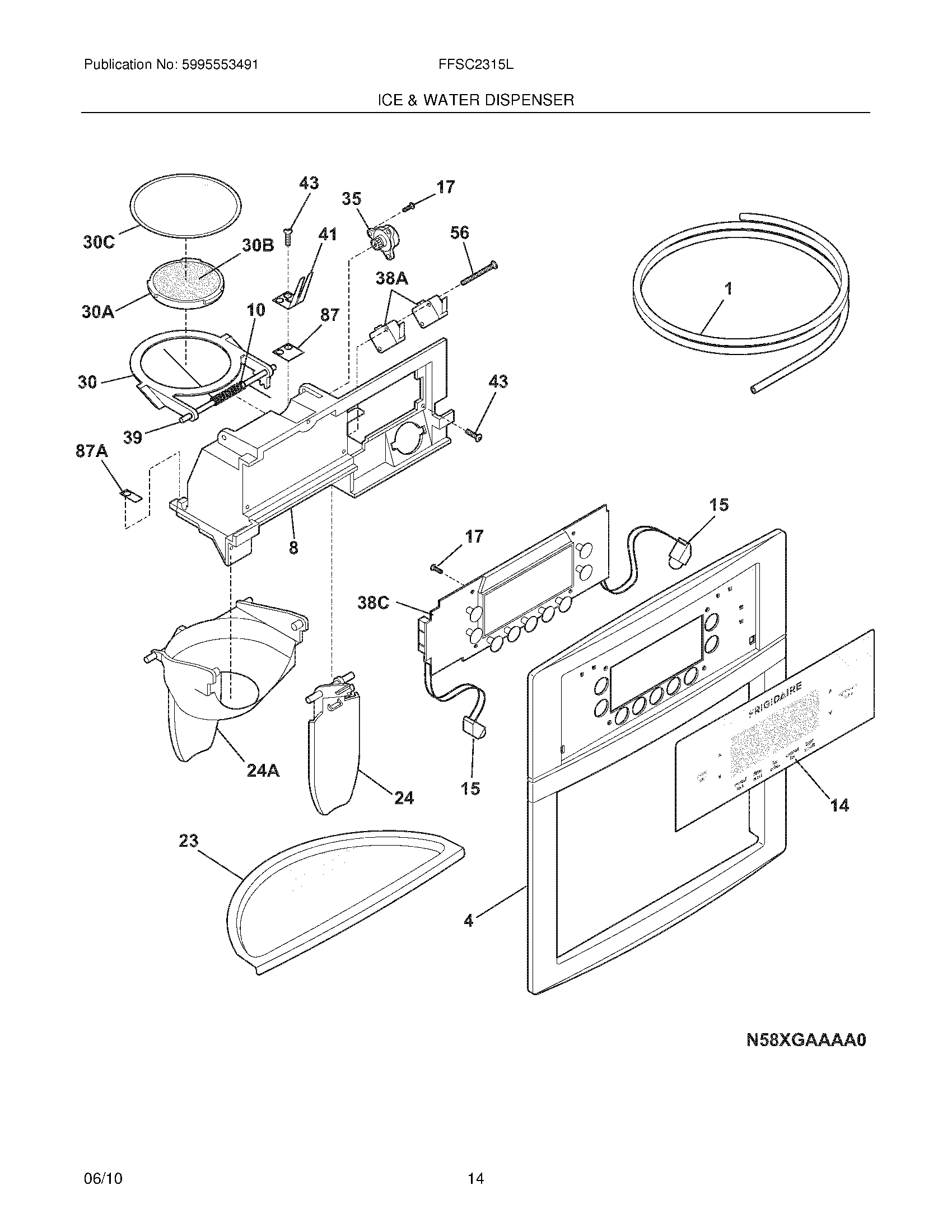

FFSC2315LP0 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	WCI 241733001
NI	WCI 240411502
NI	218976421 Frigidaire Refrigerator Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	218976429 Frigidaire Refrigerator Tube
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 242073001
8	WCI 242073701
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 242073101
15	242065203 Frigidaire Refrigerator Assembly Harness
17	241679801 Frigidaire Screw
23	WCI 242076001
24A	241681901 Frigidaire Refrigerator Ice Actuator
24	241682001 Frigidaire Actuator Lever
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
30B	241688601 Frigidaire Refrigerator Door Insulation
30C	241688701 Frigidaire Refrigerator Door Seal
35	241689301 Frigidaire Refrigerator Rotary Damper
38A	241689106 Frigidaire Refrigerator Micro Switch
38C	WCI 242073201
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
