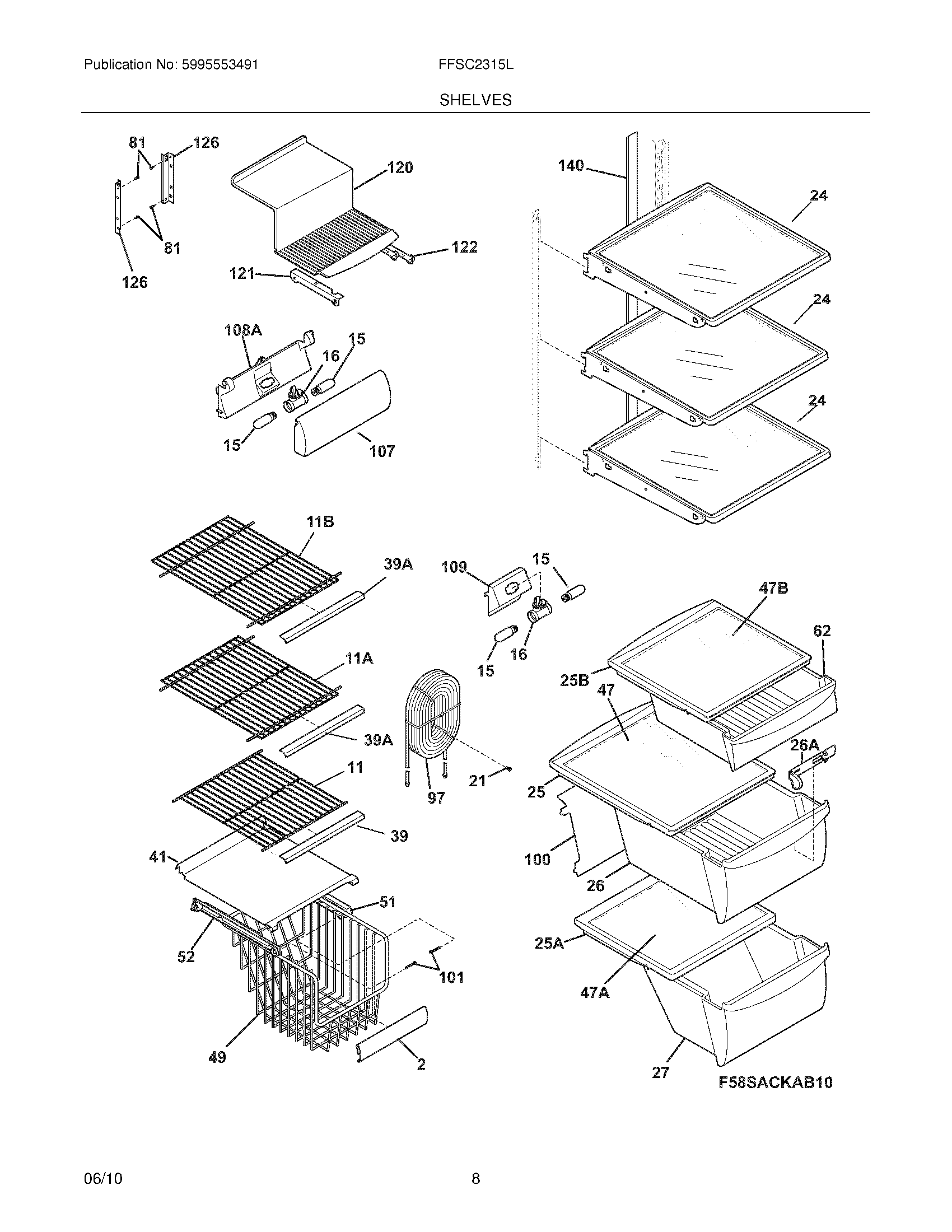

FFSC2315LS0 09 – SHELVES

FFSC2315LS0 09 – SHELVES

Written by

in

FFSC2315LS0 09 – SHELVES

Products

Position	Product
NI	WCI 242028536
NI	241987601 Frigidaire Refrigerator Wiring Harness
NI	240362101 Frigidaire Refrigerator Crisper Cover Clip
NI	240349801 Frigidaire Refrigerator Clip
NI	241595202 Frigidaire Refrigerator Clip
2	WCI 241510605
11A	WCI 241657505
11	SHELF-FREEZER, FLIP-UP
11B	241657506 Frigidaire Refrigerator Freezer Shelf
15	5304517886 Frigidaire Refrigerator Light
16	241622802 Frigidaire Refrigerator Socket-Light
21	218843801 Frigidaire Refrigerator Screw
24	WCI 240355260
25A	240350903 Frigidaire Refrigerator Crisper Pan Cover
25	240599301 Frigidaire Refrigerator Crisper Drawer Frame Cover
25B	240599803 Frigidaire Refrigerator Meat Pan Cover
26A	240362201 Frigidaire Refrigerator Humidity Control
26	240351061 Frigidaire Refrigerator Crisper Pan
27	240351207 Frigidaire Refrigerator Crisper Pan Drawer Lower
39	WCI 240430709
39A	240430710 Frigidaire Refrigerator Shelf Trim
41	WCI 241637601
47B	240443391 Frigidaire Refrigerator Glass Pan Cover Insert
47	GLASS INSERT
47A	240350603 Frigidaire Glass Shelf
49	241515001 Frigidaire Refrigerator Basket Slide
51	241514501 Frigidaire Refrigerator Hanger-Basket
52	241514601 Frigidaire Refrigerator Hanger-Basket
62	241974604 Frigidaire Refrigerator Meat Pan
81	5304455650 Frigidaire Refrigerator Screw
97	242220506 Frigidaire Refrigerator Water Tank
100	240326304 Frigidaire Refrigerator Cover
101	218493101 Frigidaire Refrigerator Screw
107	WCI 241753601
108	WCI 241753701
109	241513202 Frigidaire Refrigerator Base
120	241691701 Frigidaire Refrigerator Ice Cream Shelf
121	241504701 Frigidaire Refrigerator Rail-Ice Cream Shel
122	WCI 241504702
126	241674402 Frigidaire Refrigerator Channel
126	241674401 Frigidaire Refrigerator Channel
140	WCI 241812502
