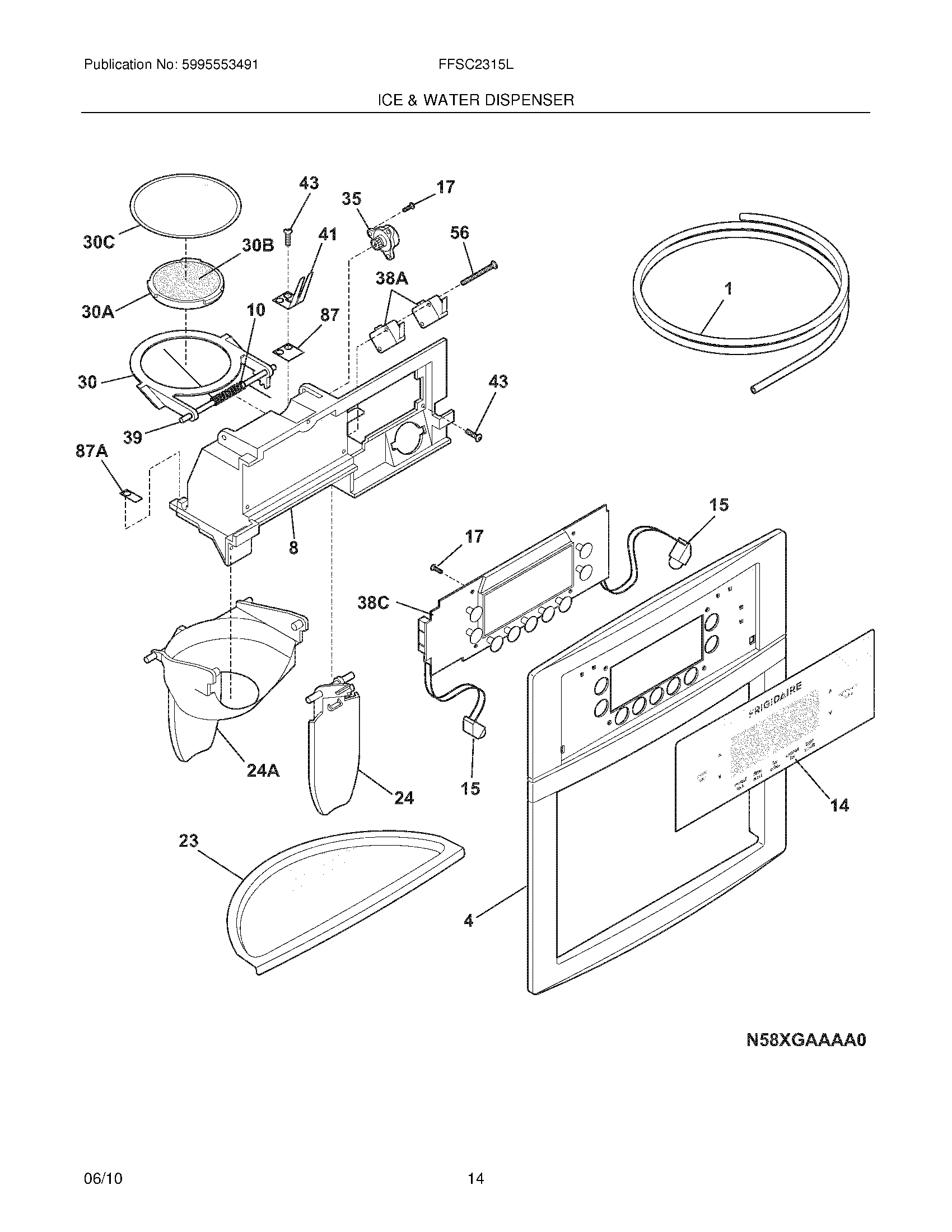

FFSC2315LS0 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976429 Frigidaire Refrigerator Tube
NI	218976421 Frigidaire Refrigerator Water Inlet Tube
NI	240561701 Frigidaire Refrigerator Seal
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	WCI 240411502
NI	WCI 241733001
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 242073003
8	WCI 242073703
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 242073103
15	242065203 Frigidaire Refrigerator Assembly Harness
17	241679801 Frigidaire Screw
23	WCI 242076003
24	241682003 Frigidaire Refrigerator Black Water Dispenser Actuator
24A	241681903 Frigidaire Refrigerator Ice Dispenser Actuator
30B	241688601 Frigidaire Refrigerator Door Insulation
30	241688401 Frigidaire Ice Door Bracket
30C	241688701 Frigidaire Refrigerator Door Seal
30A	241688501 Frigidaire Refrigerator Door Center
35	241689301 Frigidaire Refrigerator Rotary Damper
38C	WCI 242073201
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
87A	241688301 Frigidaire Refrigerator Bearing Plate
87	241688302 Frigidaire Refrigerator Bearing Plate
