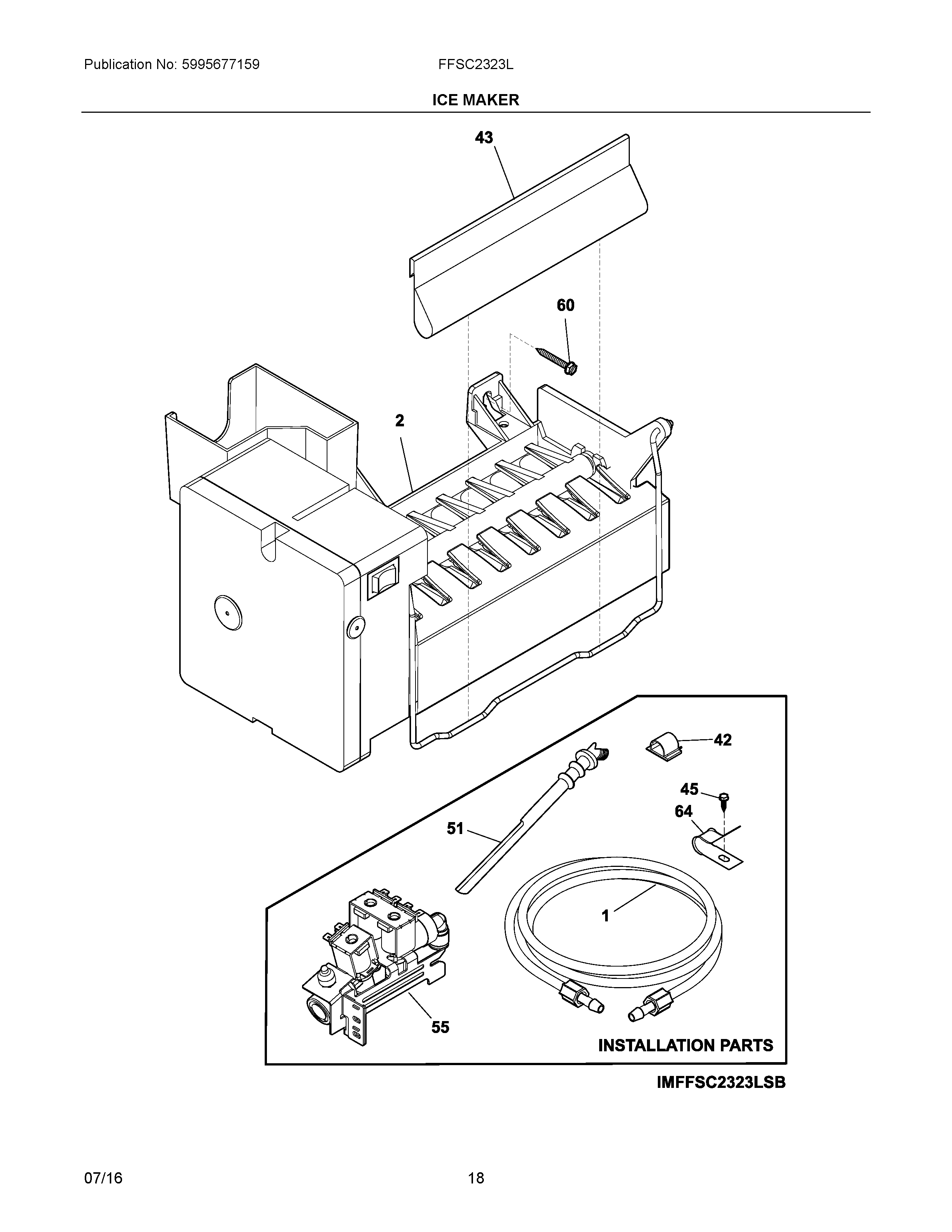

FFSC2323LSCA 10 – ICE MAKER

FFSC2323LSCA 10 – ICE MAKER

Written by

in

FFSC2323LSCA 10 – ICE MAKER

Products

PositionProduct
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIA241850615 Frigidaire Ice Maker Fill Tube Assembly
1218976409 Frigidaire Refrigerator Water Tube
25303918344 Frigidaire Refrigerator Kit Ice Maker
42218515403 Frigidaire Refrigerator Clip-Grille
43241720601 Frigidaire Refrigerator Extension
455304455650 Frigidaire Refrigerator Screw
51241796406 Frigidaire Refrigerator Water Fill Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
