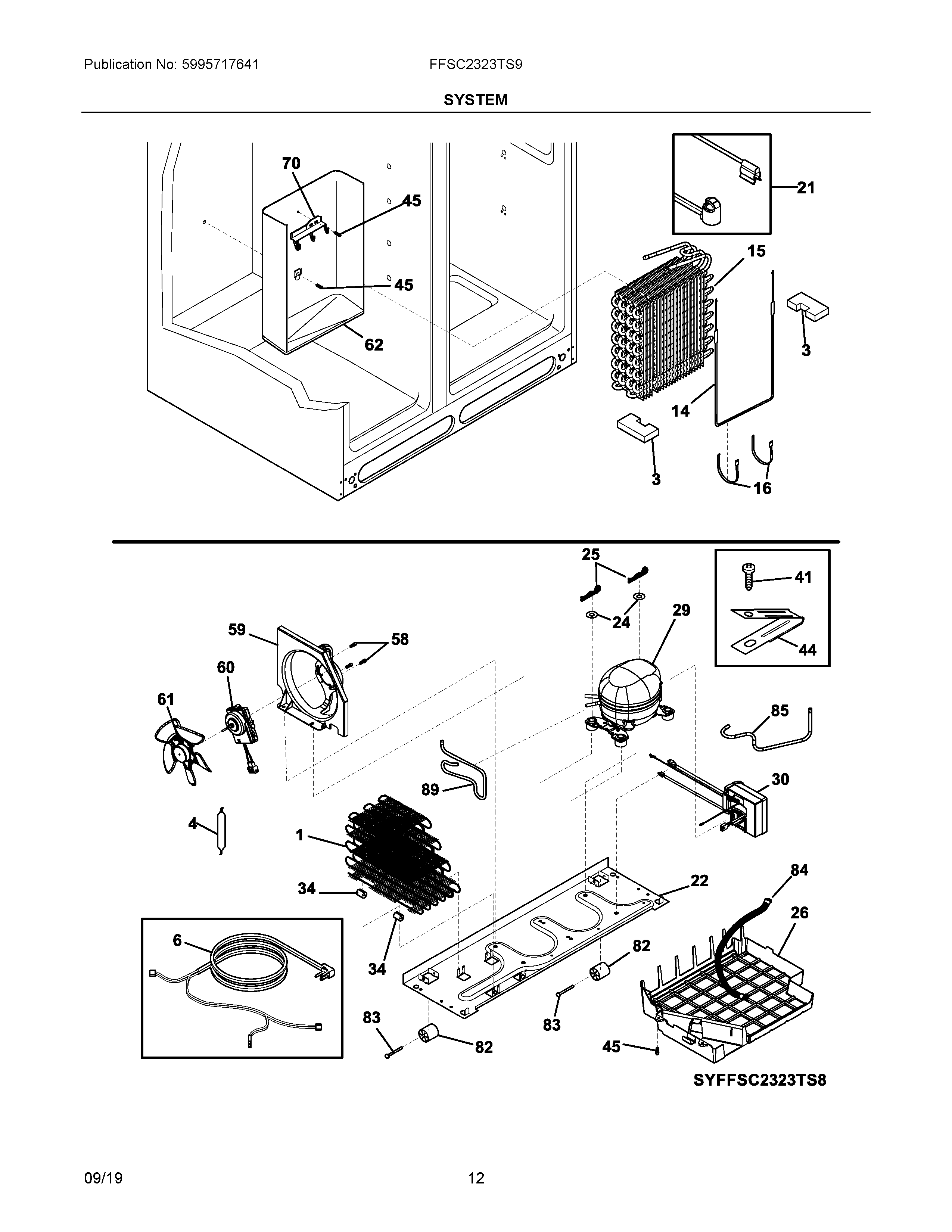

FFSC2323TS9 07 – SYSTEM

FFSC2323TS9 07 – SYSTEM

Written by

in

FFSC2323TS9 07 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NIA5304521774 Frigidaire Refrigerator Wiring Harness
NI5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
1242106605 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215304521276 Frigidaire Refrigerator Harness-Low Side
22240330014 Frigidaire Refrigerator Compressor Base
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697502 Frigidaire Pan-Defrost Drain
295304512654 Frigidaire Refrigerator Panasonic Compressor
305304521262 Frigidaire Refrigerator Inverter Assembly
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
45241500303 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
595304521279 Frigidaire Refrigerator Bracket
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
62240429406 Frigidaire Refrigerator Trough-Drain
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
85TUBE-CONNECTOR, SUCTION
89WCI 215346900
