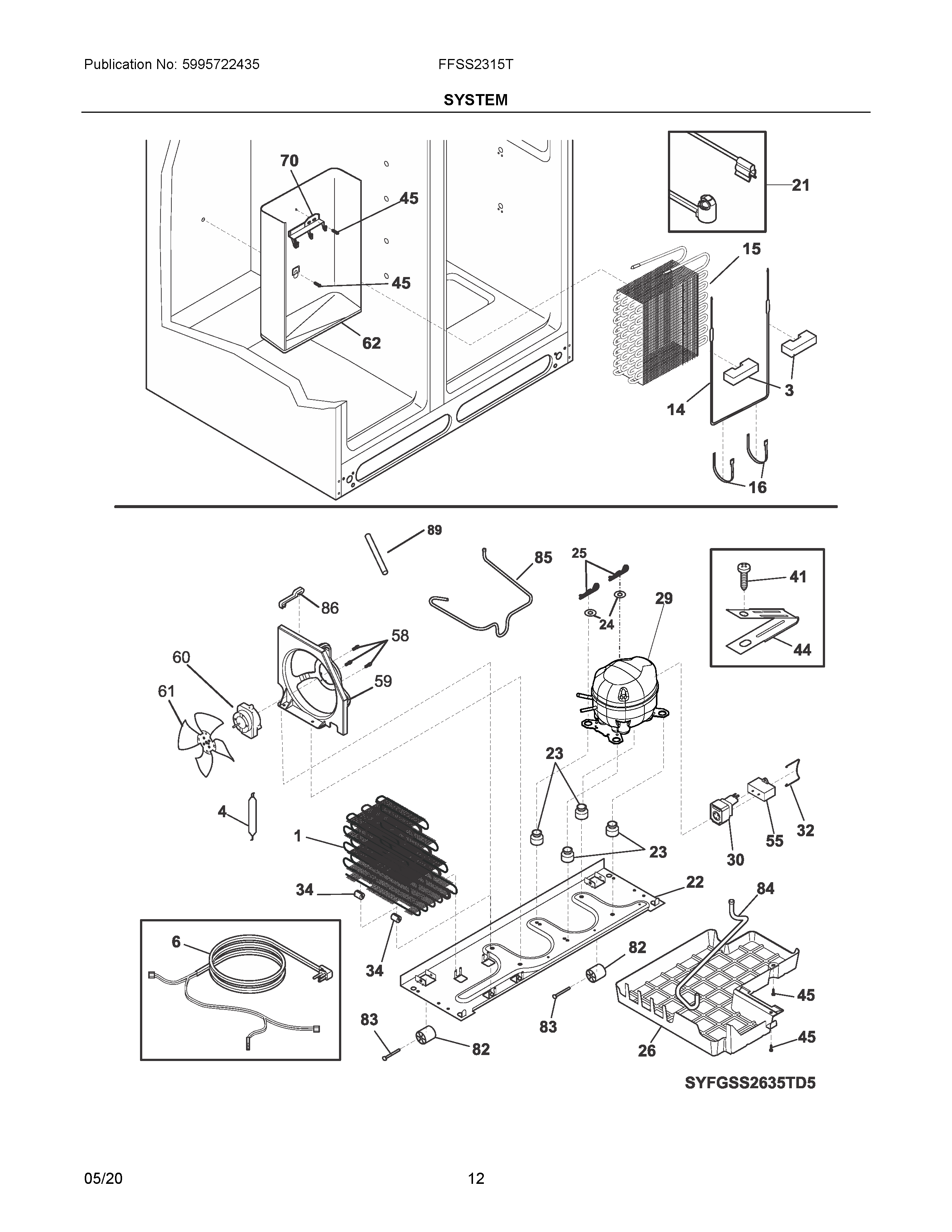

FFSS2315TD4 07 – SYSTEM

FFSS2315TD4 07 – SYSTEM

Written by

in

FFSS2315TD4 07 – SYSTEM

Products

PositionProduct
NIA218252201 Frigidaire Refrigerator Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIA5304521777 Frigidaire Refrigerator Wiring Harness
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
1242106606 Frigidaire Refrigerator Condenser
3218679613 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
65304521699 Frigidaire Refrigerator Machine Wiring Harness
14242044118 Frigidaire Refrigerator Defrost Heater
155303918286 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22240330013 Frigidaire Refrigerator Compressor Base
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697603 Frigidaire Defrost Pan
295304537072 Frigidaire Compressor with Clip, Em2Z70Hlt
30241941005 Frigidaire Refrigerator Start Device
32297030500 Frigidaire Refrigerator Clip
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
58240569202 Frigidaire Refrigerator Screw
595304521279 Frigidaire Refrigerator Bracket
60MOTOR-CONDENSER FAN
61241639502 Frigidaire Refrigerator Condenser Fan Blade
62241719606 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
85TUBE-CONNECTOR, SUCTION
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
89WCI 215346900
