FFSS2618SS0 08 – ICE & WATER DISPENSER

FFSS2618SS0 08 – ICE & WATER DISPENSER

Written by

in

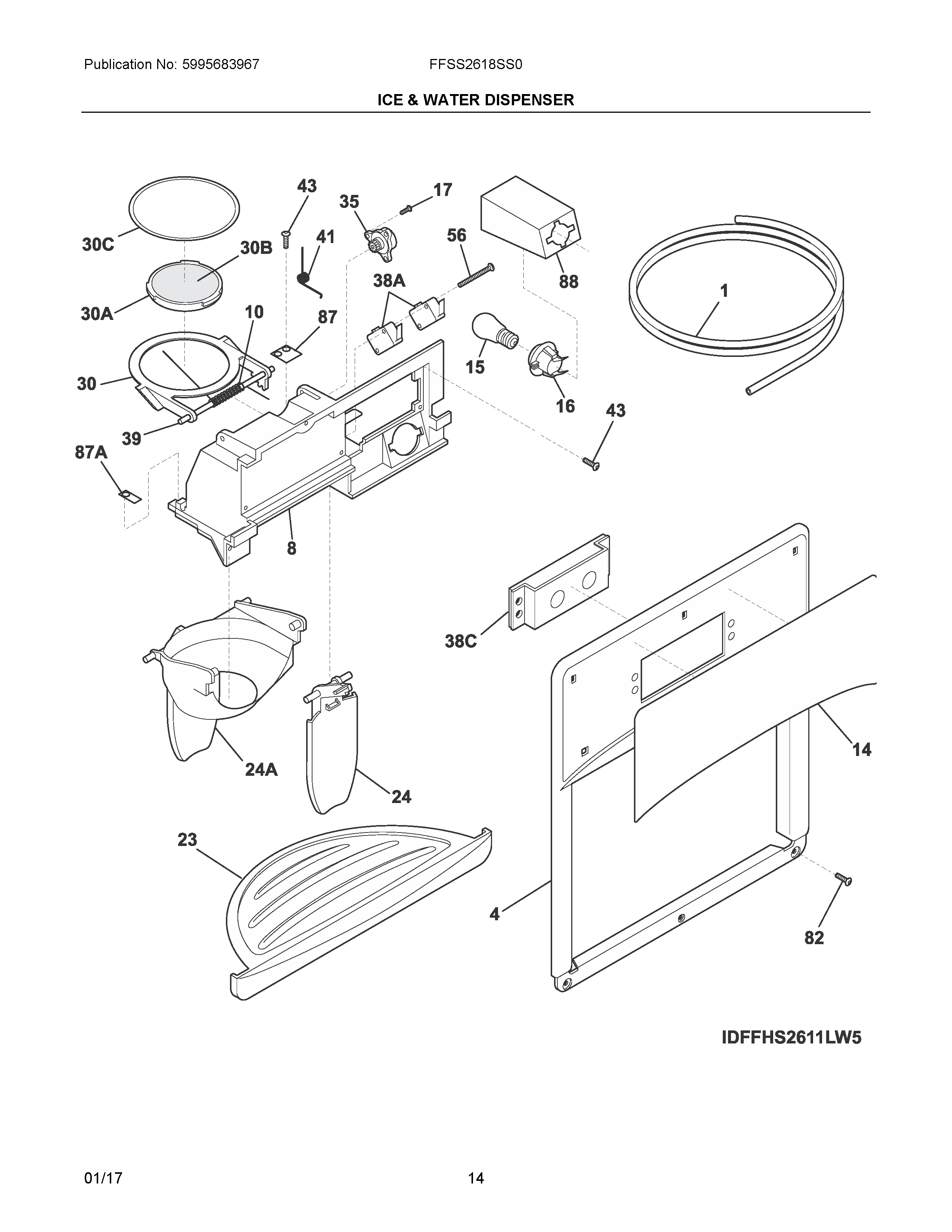

FFSS2618SS0 08 – ICE & WATER DISPENSER

Products

PositionProduct
NIC242220206 Frigidaire Refrigerator Water Inlet Tube
NI218515403 Frigidaire Refrigerator Clip-Grille
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NIB241850615 Frigidaire Ice Maker Fill Tube Assembly
NIAA241679201 Frigidaire Refrigerator Wiring Harness
NICA5304521693 Frigidaire Refrigerator Harness-Facade W/Li
1218976438 Frigidaire Refrigerator Tube
4241679009 Frigidaire Dispenser Front Panel
8WCI 241680512
10241688901 Frigidaire Refrigerator Torsion Spring
14240570235 Frigidaire Dispenser Overlay
15WCI 5304506475
16240548901 Frigidaire Refrigerator P-1 Socket
17241679801 Frigidaire Screw
23241649007 Frigidaire Drip Tray Assembly (Grey)
24WCI 241682007
24AWCI 241681907
30B241688601 Frigidaire Refrigerator Door Insulation
30C241688701 Frigidaire Refrigerator Door Seal
30A241688501 Frigidaire Refrigerator Door Center
30241688401 Frigidaire Ice Door Bracket
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689106 Frigidaire Refrigerator Micro Switch
38C5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
39241688801 Frigidaire Refrigerator Pin-Hinge
41241689001 Frigidaire Refrigerator Actuator Spring
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
88WCI 241686101
