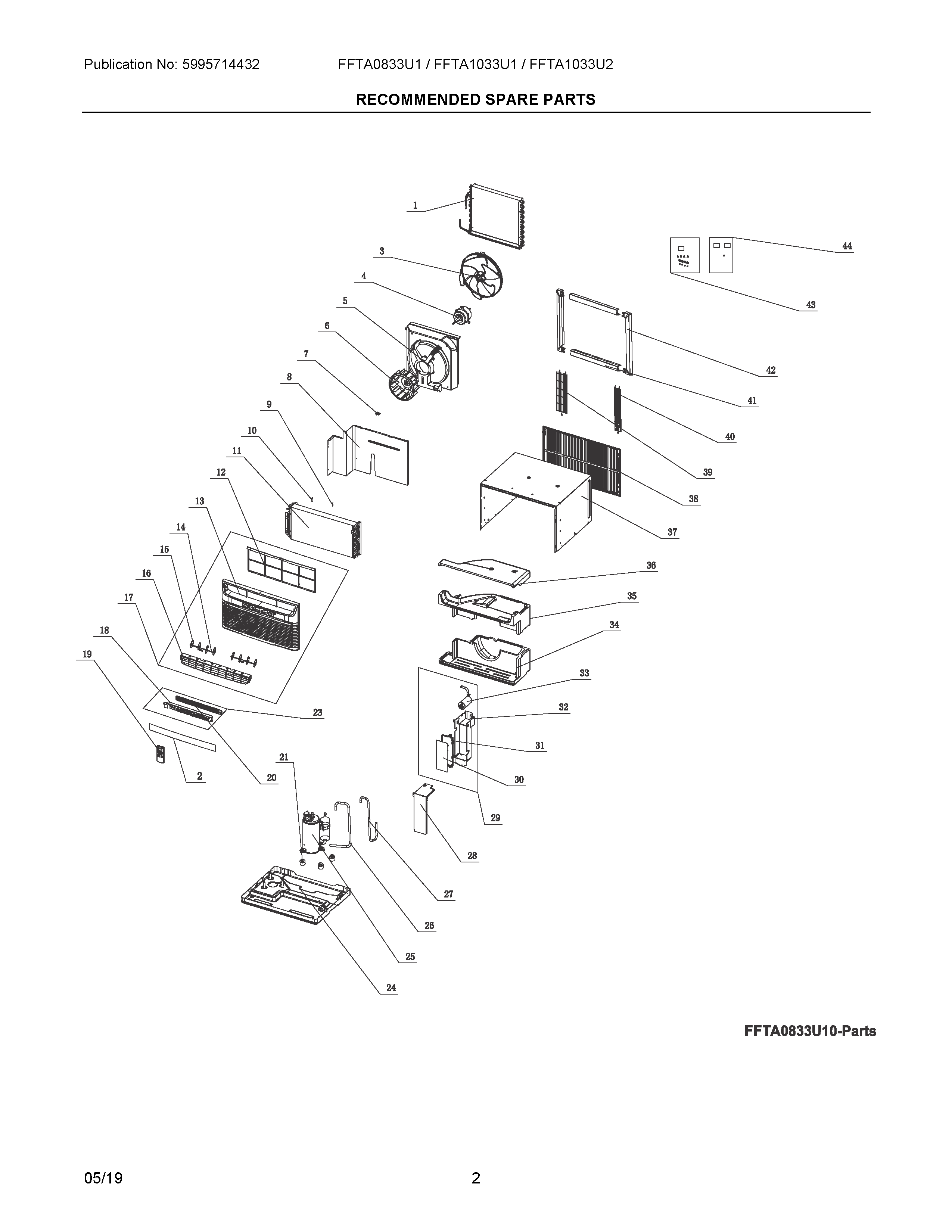

FFTA0833U10 02 – RECOMMENDED SPARE PARTS
Written by
in
FFTA0833U10 02 – RECOMMENDED SPARE PARTS
Products
Position
Product
1
5304516567 Frigidaire Air Conditioner Condenser
2
WCI 5304521645
3
5304516523 Frigidaire Air Conditioner Fan Blade
4
MOTOR, FAN
5
SHROUD, CONDENSER FAN
6
WHEEL, BLOWER
7
CLAMP, PLASTIC, (2)
8
BRACKET, CLAPBOARD
9
CLIP, TEMP SENSOR
10
SLEEVE, TEMP SENSOR
11
EVAPORATOR, ASSEMBLY
12
5304525641 Frigidaire Air Conditioner Filter
13
5304516532 Frigidaire Frame
14
LEVER, AIR LOUVER
15
5304515942 Frigidaire Louver
16
5304525637 Frigidaire Front Assembly
18
5304516584 Frigidaire Air Conditioner Control Panel
19
5304515943 Frigidaire Air Conditioner Remote Control
21
GASKET, COMPRESSOR, (3)
24
BASE ASSEMBLY, CHASSIS
25
COMPRESSOR, W/OVERLOAD
26
5304516544 Frigidaire Tube
27
5304516543 Frigidaire Tube
28
COVER, ELECTRICAL BOX
29
BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR
30
5304516587 Frigidaire Board Assembly
31
BRACKET, BOARD MTG
32
BOX, ELECTRICAL
33
5304516549 Frigidaire Capacitor
34
AIR DUCT, VOLUTE, BOTTOM
35
AIR DUCT, VOLUTE, MIDDLE
36
AIR DUCT, VOLUTE, TOP
37
WRAPPER ASSEMBLY, CABINET
38
GRILLE, AIR DIRECTIONAL, REAR
39
GRILLE, PROTECTIVE, WIDE, REAR
40
WCI 5304467092
41
WCI 5304459821
42
WCI 5304459820
43
WCI 5304459817
44
WCI 5304459818
←
