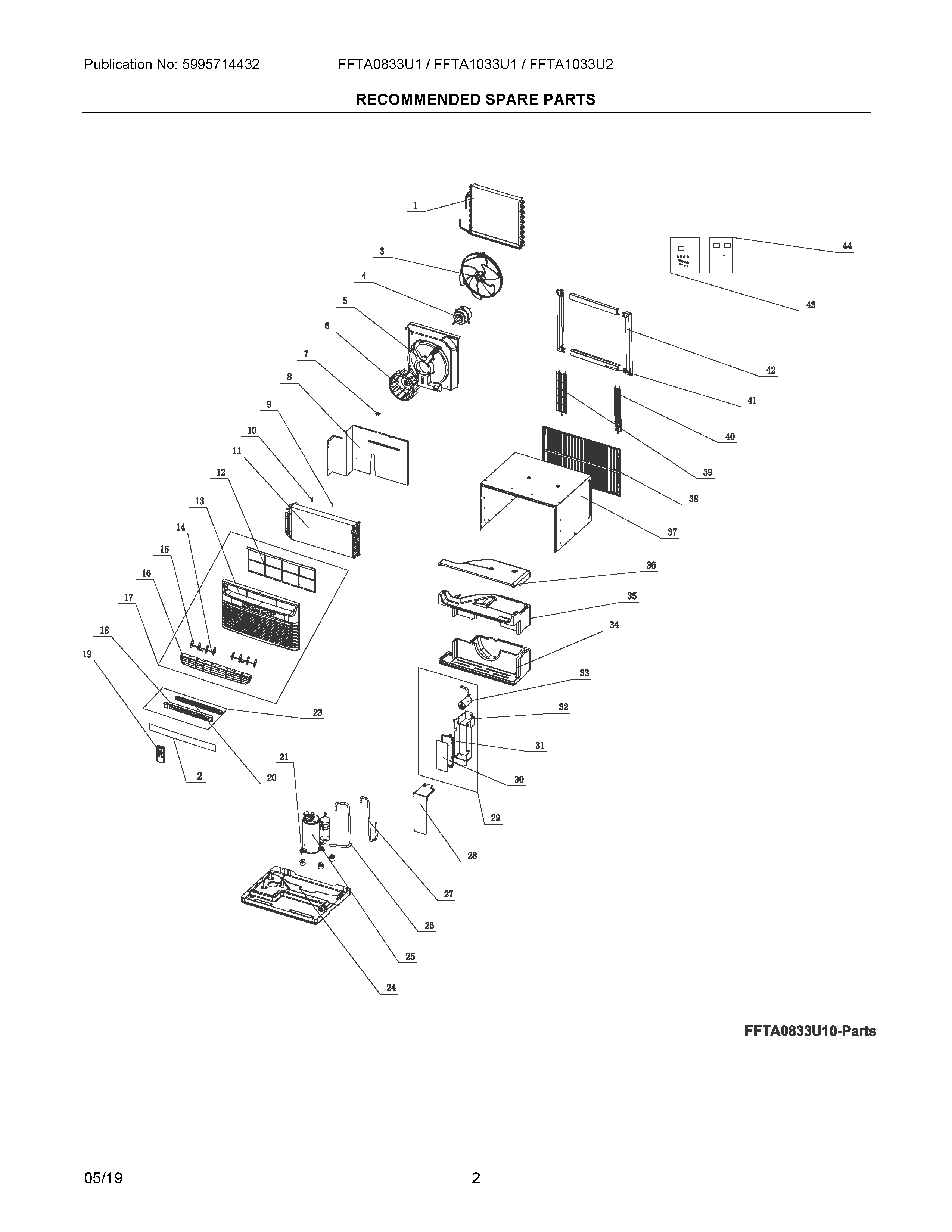

FFTA1033U10 02 – RECOMMENDED SPARE PARTS

FFTA1033U10 02 – RECOMMENDED SPARE PARTS

Written by

in

FFTA1033U10 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
15304516567 Frigidaire Air Conditioner Condenser
2WCI 5304521645
35304516523 Frigidaire Air Conditioner Fan Blade
4MOTOR, FAN
5SHROUD, CONDENSER FAN
6WHEEL, BLOWER
7CLAMP, PLASTIC, (2)
8BRACKET, CLAPBOARD
9CLIP, TEMP SENSOR
10SLEEVE, TEMP SENSOR
11EVAPORATOR, ASSEMBLY
125304525641 Frigidaire Air Conditioner Filter
135304516532 Frigidaire Frame
14LEVER, AIR LOUVER
155304515942 Frigidaire Louver
165304525637 Frigidaire Front Assembly
185304516584 Frigidaire Air Conditioner Control Panel
195304515943 Frigidaire Air Conditioner Remote Control
21GASKET, COMPRESSOR
24BASE ASSEMBLY, CHASSIS
25COMPRESSOR, W/OVERLOAD
26TUBE, DISCHARGE
27TUBE, SUCTION
28COVER, ELECTRICAL BOX
29BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR
305304516587 Frigidaire Board Assembly
31BRACKET, BOARD MTG
32BOX, ELECTRICAL
33CAPACITOR, CBB65
34AIR DUCT, VOLUTE, BOTTOM
35AIR DUCT, VOLUTE, MIDDLE
36AIR DUCT, VOLUTE, TOP
37WRAPPER ASSEMBLY, CABINET
38GRILLE, AIR DIRECTIONAL, REAR
39GRILLE, PROTECTIVE, WIDE, REAR
40WCI 5304467092
41WCI 5304459821
42WCI 5304459820
43WCI 5304459817
44WCI 5304459818
