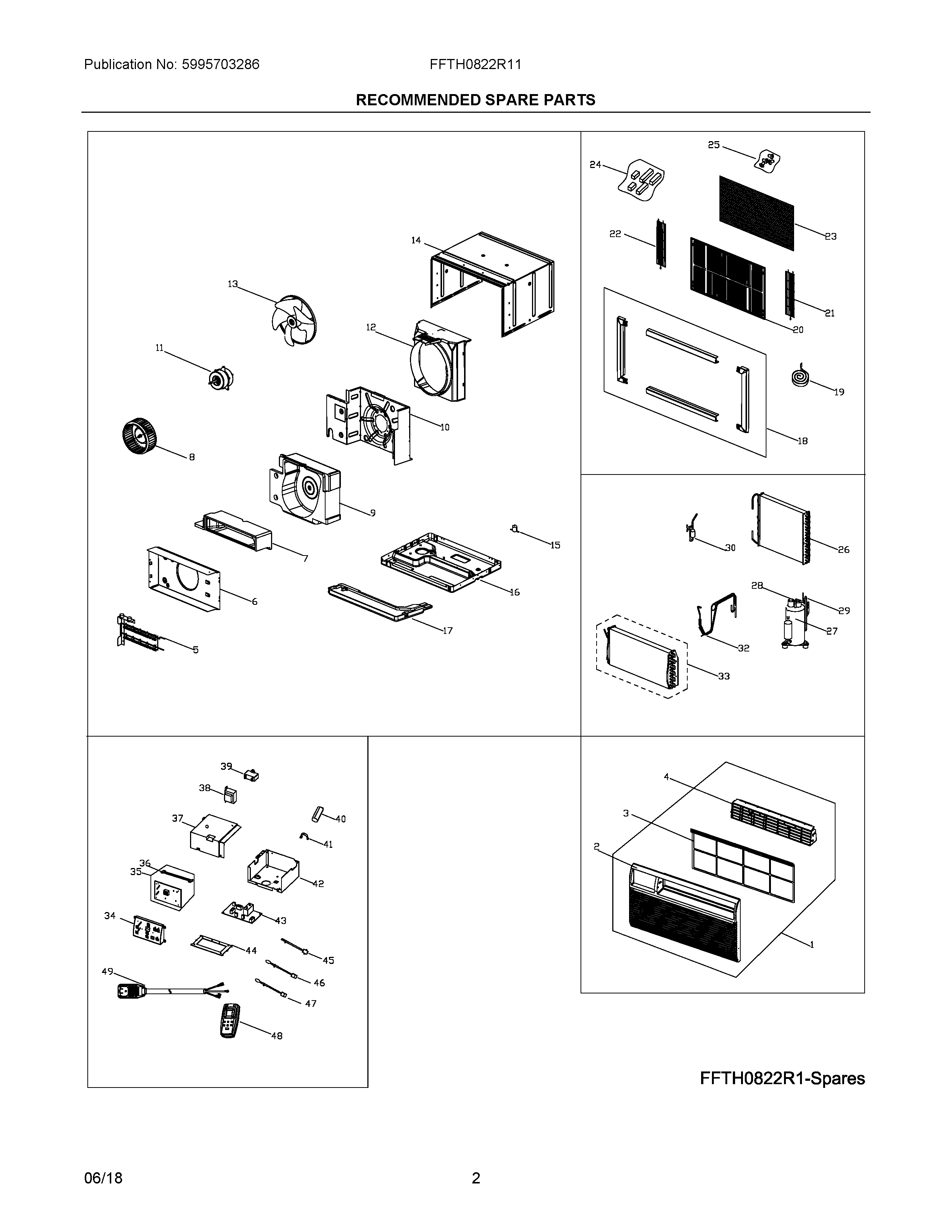

FFTH0822R11 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
NI	WCI 5304512468
1	WCI 5304492061
2	WCI 5304476435
3	5304528926 Frigidaire Air Conditioner Filter
4	5304492062 Frigidaire Louver Assembly
5	HEATER, ELECTRIC
6	WCI 5304501965
7	WCI 5304501084
8	5304476623 Frigidaire Blower Wheel
9	SCROLL, BLOWER HOUSING, REAR
10	WCI 5304501086
11	5304499951 Frigidaire Motor
12	WCI 5304501088
13	5304470971 Frigidaire Air Conditioner Fan Blade
14	WCI 5304501087
15	5304476624 Frigidaire Valve
16	BASE, UNIT CHASSIS
17	WCI 5304501090
18	5304535826 Frigidaire Trim
19	WCI 5304470974
20	WCI 5304482549
21	WCI 5304501091
22	WCI 5304501092
23	5304470975 Frigidaire Grill
24	WCI 5304470979
25	WCI 5304470978
26	5304501093 Frigidaire Condenser
27	5304489721 Frigidaire Air Conditioner Compressor
28	5304492022 Frigidaire Air Conditioner Overload Protector
29	TUBE, DISCHARGE
30	5304476367 Frigidaire Air Conditioner Filter Drier
32	5304501094 Frigidaire Tube Assembly
33	EVAPORATOR, +CAPILLARY TUBE
34	CONTROL PANEL, WITH OVERLAY
35	5304501982 Frigidaire Air Conditioner PC Board
36	5304480400 Frigidaire Air Conditioner Wire
37	WCI 5304501097
38	5304512409 Frigidaire Air Conditioner Transformer
39	CAPACITOR, FAN MOTOR
40	CAPACITOR, COMPRESSOR
41	WCI 5304512465
42	WCI 5304512466
43	5304512467 Frigidaire Electrical Control
44	WCI 5304495029
45	5304505896 Frigidaire Air Conditioner Sensor
46	5304512374 Frigidaire Air Conditioner Sensor
47	5304512401 Frigidaire Air Conditioner Sensor
48	5304476631 Frigidaire Air Conditioner Remote Control
49	POWER CORD
