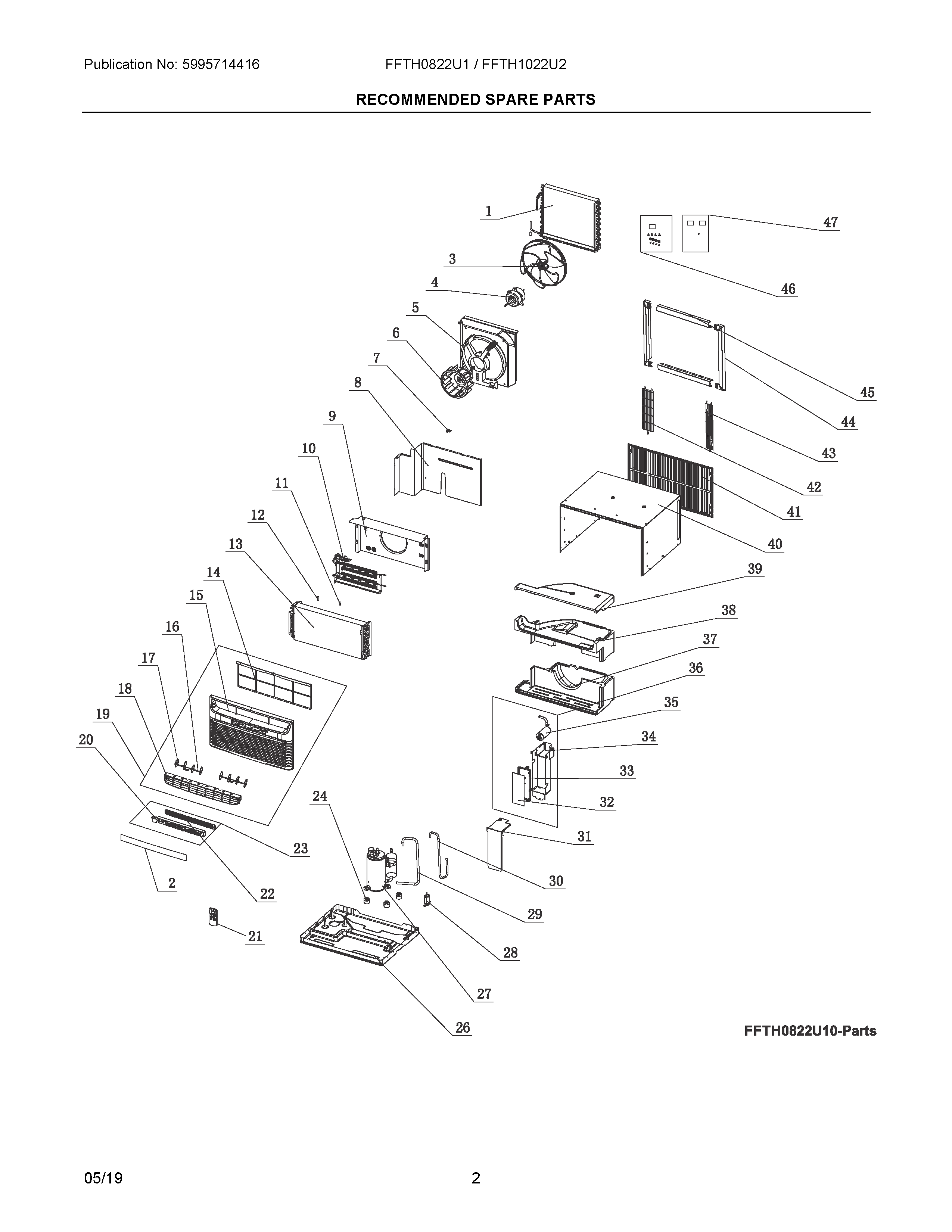

FFTH0822U10 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	CONDENSER, ASSEMBLY
2	OVERLAY, CONTROL
3	5304516523 Frigidaire Air Conditioner Fan Blade
4	MOTOR, FAN
5	SHROUD, CONDENSER FAN
6	WHEEL, BLOWER
7	CLAMP, PLASTIC, (2)
8	BRACKET, CLAPBOARD
9	SHIELD, ELECTRIC HEATER
10	WCI 5304467103
11	CLIP, TEMP SENSOR
12	SLEEVE, TEMP SENSOR
13	EVAPORATOR, ASSEMBLY
14	5304525641 Frigidaire Air Conditioner Filter
15	5304516532 Frigidaire Frame
16	LEVER, AIR LOUVER
17	5304515942 Frigidaire Louver
18	5304525637 Frigidaire Front Assembly
20	5304516584 Frigidaire Air Conditioner Control Panel
21	5304516537 Frigidaire Remote Control
23	5304516539 Frigidaire Control Panel
24	GASKET, COMPRESSOR, (3)
26	BASE ASSEMBLY, CHASSIS
27	COMPRESSOR, W/OVERLOAD
28	VALVE, DRAIN
29	5304516543 Frigidaire Tube
30	5304516544 Frigidaire Tube
31	COVER, ELECTRICAL BOX
32	BOARD ASSEMBLY, MAIN
33	BRACKET, BOARD MTG
34	BOX, ELECTRICAL
35	5304516549 Frigidaire Capacitor
36	BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR
37	AIR DUCT, VOLUTE, BOTTOM
38	AIR DUCT, VOLUTE, MIDDLE
39	AIR DUCT, VOLUTE, TOP
40	WRAPPER ASSEMBLY, CABINET
41	GRILLE, AIR DIRECTIONAL, REAR
42	GRILLE, PROTECTIVE, WIDE, REAR
43	WCI 5304467092
44	WCI 5304459820
45	WCI 5304459821
46	WCI 5304459817
47	WCI 5304459818
