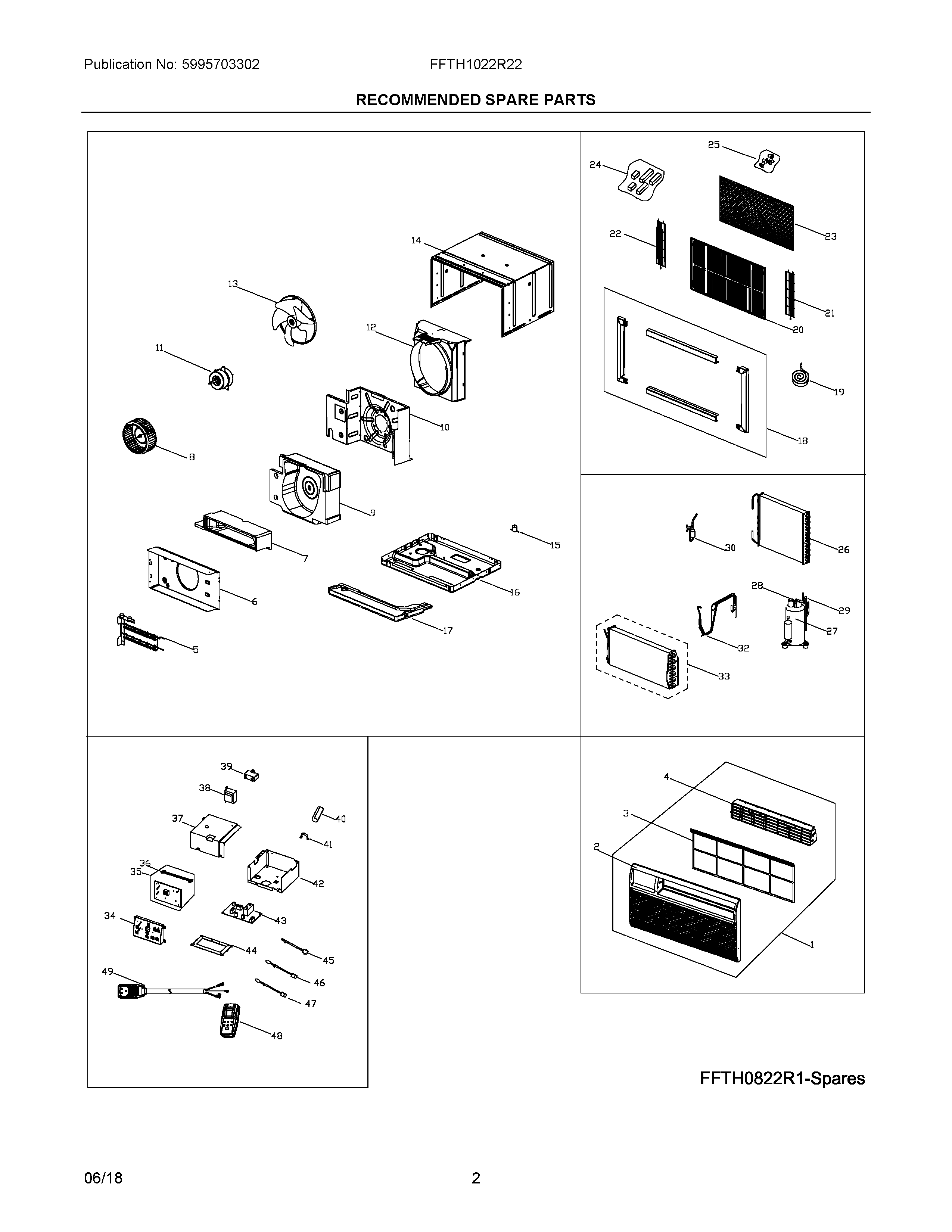

FFTH1022R22 02 – RECOMMENDED SPARE PARTS

FFTH1022R22 02 – RECOMMENDED SPARE PARTS

Written by

in

FFTH1022R22 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NIWCI 5304512468
1WCI 5304492061
2WCI 5304476435
35304528926 Frigidaire Air Conditioner Filter
45304492062 Frigidaire Louver Assembly
55304476390 Frigidaire Air Conditioner Heater Assembly
6WCI 5304501083
7WCI 5304501084
85304476623 Frigidaire Blower Wheel
9SCROLL, BLOWER HOUSING, REAR
10WCI 5304501086
115304501969 Frigidaire Motor
12WCI 5304501088
135304470971 Frigidaire Air Conditioner Fan Blade
14WCI 5304501087
155304476624 Frigidaire Valve
16BASE, UNIT CHASSIS
17WCI 5304501090
185304535826 Frigidaire Trim
19WCI 5304470974
20WCI 5304482549
21WCI 5304501091
22WCI 5304501092
235304470975 Frigidaire Grill
24WCI 5304470979
25WCI 5304470978
265304501103 Frigidaire Air Conditioner Condenser
27WCI 5304496471
28WCI 5304496482
29WCI 5304496468
305304476367 Frigidaire Air Conditioner Filter Drier
32WCI 5304501970
33WCI 5304501971
34CONTROL PANEL, WITH OVERLAY
355304501982 Frigidaire Air Conditioner PC Board
365304480400 Frigidaire Air Conditioner Wire
37WCI 5304501097
385304512376 Frigidaire Air Conditioner Transformer
39CAPACITOR, FAN MOTOR
40WCI 5304512469
415304512422 Frigidaire Clamp
42WCI 5304512470
435304512471 Frigidaire Air Conditioner Electrical Control
44WCI 5304495029
455304505896 Frigidaire Air Conditioner Sensor
465304512374 Frigidaire Air Conditioner Sensor
475304512401 Frigidaire Air Conditioner Sensor
485304476631 Frigidaire Air Conditioner Remote Control
495304536813 Frigidaire Power Cord
