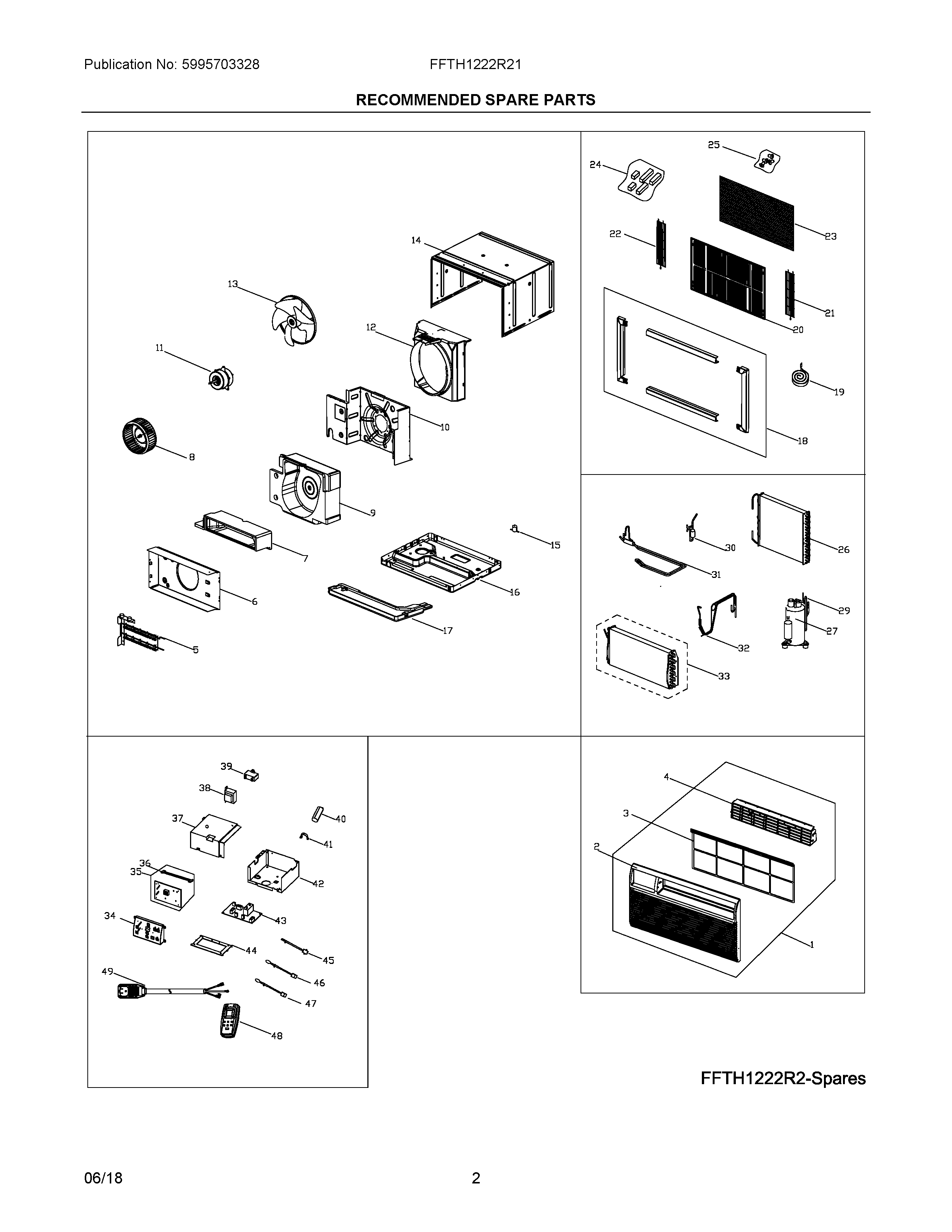

FFTH1222R21 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
NI	WCI 5304512468
1	WCI 5304492061
2	WCI 5304476435
3	5304528926 Frigidaire Air Conditioner Filter
4	5304492062 Frigidaire Louver Assembly
5	5304476390 Frigidaire Air Conditioner Heater Assembly
6	WCI 5304501083
7	WCI 5304501084
8	5304476623 Frigidaire Blower Wheel
9	SCROLL, BLOWER HOUSING, REAR
10	WCI 5304501086
11	5304499952 Frigidaire Air Conditioner Motor
12	WCI 5304501088
13	5304470971 Frigidaire Air Conditioner Fan Blade
14	WCI 5304501087
15	5304476624 Frigidaire Valve
16	BASE, UNIT CHASSIS
17	WCI 5304501090
18	5304535826 Frigidaire Trim
19	WCI 5304470974
20	WCI 5304482549
21	WCI 5304501091
22	WCI 5304501092
23	5304470975 Frigidaire Grill
24	WCI 5304470979
25	WCI 5304470978
26	5304501103 Frigidaire Air Conditioner Condenser
27	5304499947 Frigidaire Air Conditioner Compressor
29	5304495514 Frigidaire Tube
30	5304476367 Frigidaire Air Conditioner Filter Drier
31	5304501104 Frigidaire Tube
32	5304501105 Frigidaire Tube
33	WCI 5304501106
34	CONTROL PANEL, WITH OVERLAY
35	5304501982 Frigidaire Air Conditioner PC Board
36	5304480400 Frigidaire Air Conditioner Wire
37	WCI 5304501097
38	5304512376 Frigidaire Air Conditioner Transformer
39	WCI 5304512460
40	5304512431 Frigidaire Capacitor
41	5304512422 Frigidaire Clamp
42	WCI 5304512472
43	5304512473 Frigidaire Control-Electrical
44	WCI 5304495029
45	5304505896 Frigidaire Air Conditioner Sensor
46	5304512374 Frigidaire Air Conditioner Sensor
47	5304512401 Frigidaire Air Conditioner Sensor
48	5304476631 Frigidaire Air Conditioner Remote Control
49	5304536813 Frigidaire Power Cord
