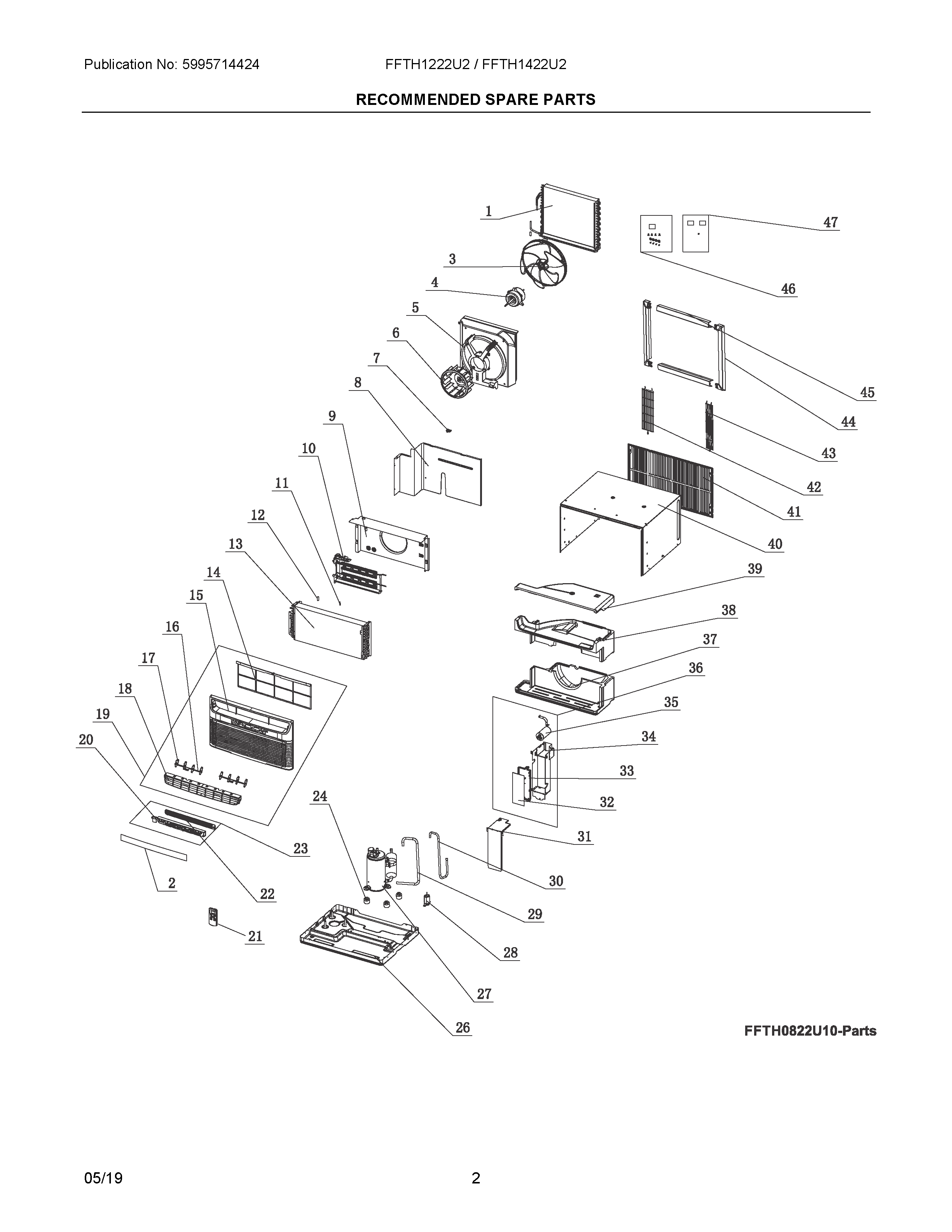

FFTH1422U20 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	5304516567 Frigidaire Air Conditioner Condenser
2	OVERLAY, CONTROL
3	5304516523 Frigidaire Air Conditioner Fan Blade
4	5304516568 Frigidaire Motor
5	SHROUD, CONDENSER FAN
6	WHEEL, BLOWER
7	CLAMP, PLASTIC, (2)
8	BRACKET, CLAPBOARD
9	SHIELD, ELECTRIC HEATER
10	HEATER, ELECTRIC
11	CLIP, TEMP SENSOR
12	SLEEVE, TEMP SENSOR
13	5304516574 Frigidaire Air Conditioner Evaporator Assembly
14	5304525641 Frigidaire Air Conditioner Filter
15	5304516532 Frigidaire Frame
16	LEVER, AIR LOUVER
17	5304515942 Frigidaire Louver
18	5304525637 Frigidaire Front Assembly
20	5304516584 Frigidaire Air Conditioner Control Panel
21	5304516537 Frigidaire Remote Control
23	5304516539 Frigidaire Control Panel
24	GASKET, COMPRESSOR
26	BASE ASSEMBLY, CHASSIS
27	5304516577 Frigidaire Air Conditioner Compressor
28	VALVE, DRAIN
29	5304516570 Frigidaire Tube Assembly
30	5304516578 Frigidaire Tube
31	COVER, ELECTRICAL BOX
32	5304516572 Frigidaire Air Conditioner Assembly-Board
33	BRACKET, BOARD MTG
34	BOX, ELECTRICAL
35	5304516579 Frigidaire Air Conditioner Capacitor
36	5304516580 Frigidaire Box Assembly
37	AIR DUCT, VOLUTE, BOTTOM
38	AIR DUCT, VOLUTE, MIDDLE
39	AIR DUCT, VOLUTE, TOP
40	WRAPPER ASSEMBLY, CABINET
41	GRILLE, AIR DIRECTIONAL, REAR
42	GRILLE, PROTECTIVE, WIDE, REAR
43	WCI 5304467092
44	WCI 5304459820
45	WCI 5304459821
46	WCI 5304459817
47	WCI 5304459818
