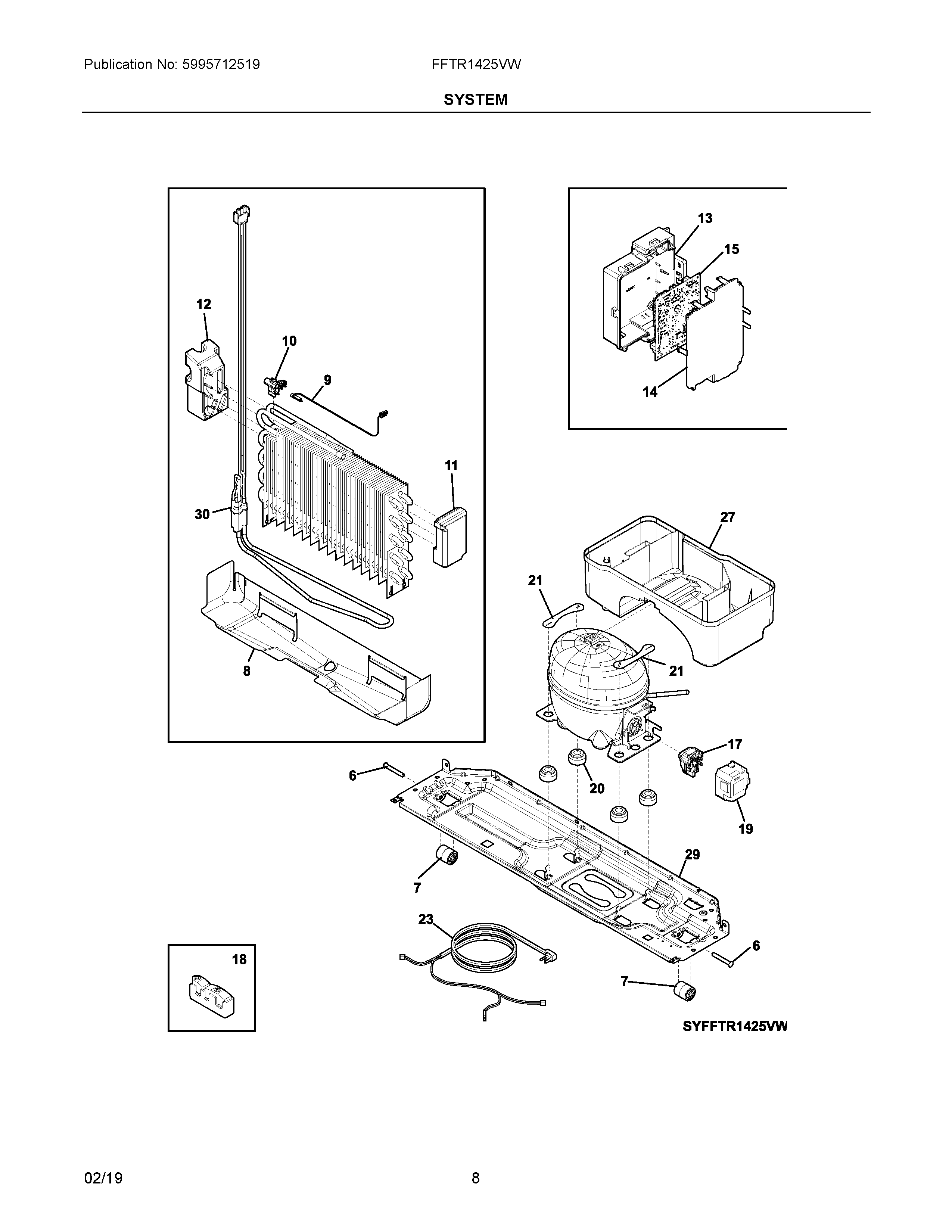

FFTR1425VW 05 – SYSTEM

FFTR1425VW 05 – SYSTEM

Written by

in

FFTR1425VW 05 – SYSTEM

Products

PositionProduct
NI811949401 Frigidaire Refrigerator Screw
NIA5304519110 Frigidaire Screw
NI808337903 Frigidaire Refrigerator Screw
6811998302 Frigidaire Refrigerator Shaft
7807822703 Frigidaire Base Assembly
85304520498 Frigidaire Refrigerator Tray
95304520944 Frigidaire Refrigerator Sensor
10811980406 Frigidaire Clamp
11SUPPORT, EVAPORATOR, RH
12SUPPORT, EVAPORATOR, LH
13HOUSING, CONTROL BOARD, MAIN
145304525319 Frigidaire Cover Assembly
155304526091 Frigidaire Refrigerator PC Board
175304520504 Frigidaire Refrigerator Electricals
18242535801 Frigidaire Clamp Assembly
19242563302 Frigidaire Cover
20811978901 Frigidaire Refrigerator Grommet
215304524607 Frigidaire Clamp
235304520505 Frigidaire Refrigerator Power Cord
275304534928 Frigidaire Refrigerator Drain Pan
305304520507 Frigidaire Refrigerator Heater
