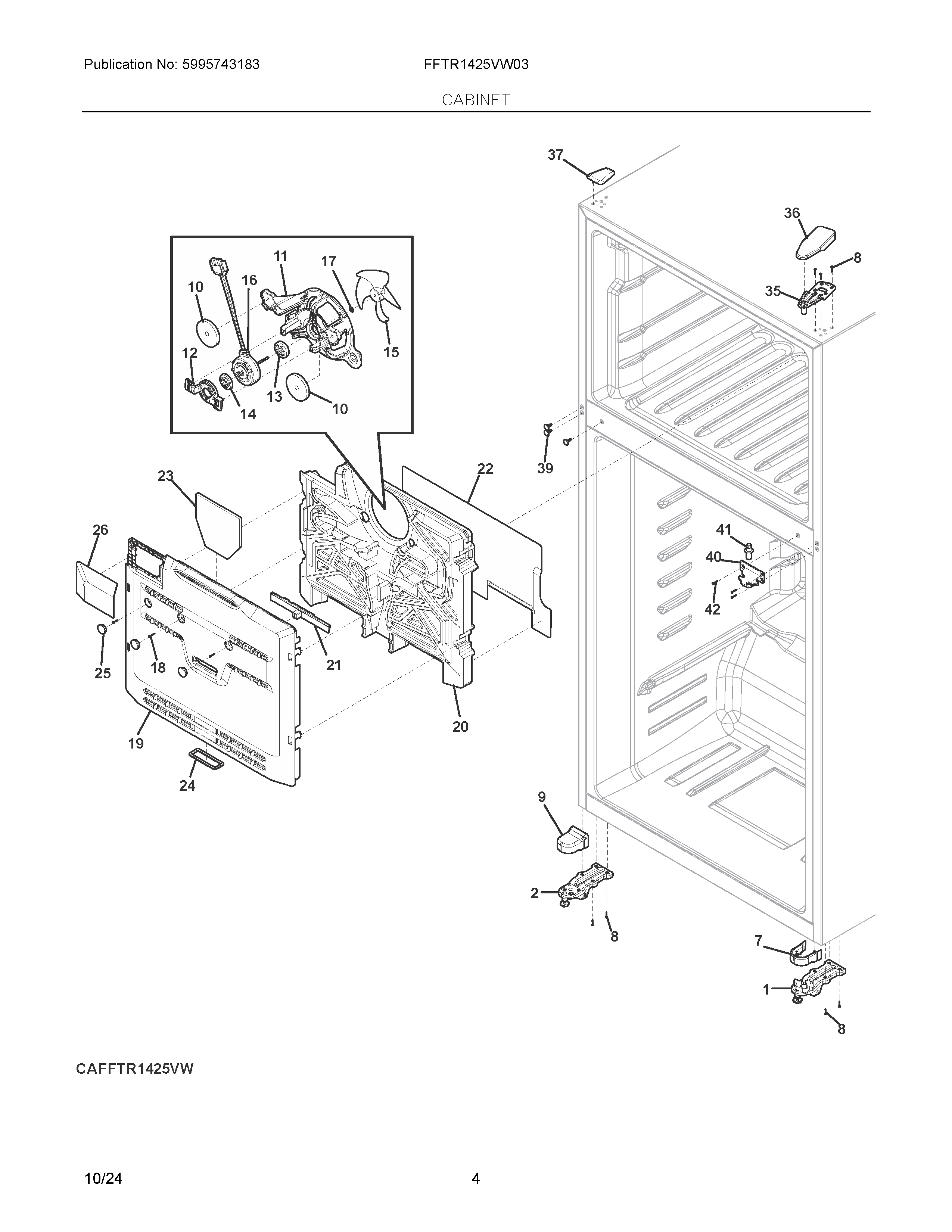

FFTR1425VW03 03 – CABINET

Products

Position	Product
NIA	5304520470 Frigidaire Refrigerator Seal
1	5304520629 Frigidaire Refrigerator Assembly Bracket
2	5304520630 Frigidaire Refrigerator Bracket Assembly
7	COVER, BRACKET, WHITE, BOTTOM HINGE
8	811949401 Frigidaire Refrigerator Screw
9	5304520467 Frigidaire Cover
10	5304520468 Frigidaire Grommet
11	811974401 Frigidaire Shroud
12	5304519177 Frigidaire Refrigerator Clip
13	5304520469 Frigidaire Grommet
14	5304519178 Frigidaire Refrigerator Grommet
15	BLADE, EVAPORATOR FAN
16	809069207 Frigidaire Refrigerator Motor
17	WASHER, SLINGER, NYLON
18	811949503 Frigidaire Screw
19	5304529994 Frigidaire Refrigerator Cover
20	5304535848 Frigidaire Duct
21	5304520473 Frigidaire Refrigerator Slide
22	5304520474 Frigidaire Refrigerator Tape
23	807305102 Frigidaire Insulation
24	811950002 Frigidaire Refrigerator Seal
25	5304524004 Frigidaire Refrigerator Cover
26	5304520475 Frigidaire Refrigerator Cover
35	5304520476 Frigidaire Refrigerator Hinge
36	5304530010 Frigidaire Cover Assembly
37	COVER, HINGE HOLES, WHITE, CABINET TOP
39	5304522071 Frigidaire Refrigerator Cover
40	5304522614 Frigidaire Refrigerator Hinge
41	5304520479 Frigidaire Refrigerator Pin
42	5304520480 Frigidaire Refrigerator Screw
