FFTR1830QS1 03 – CABINET

FFTR1830QS1 03 – CABINET

Written by

in

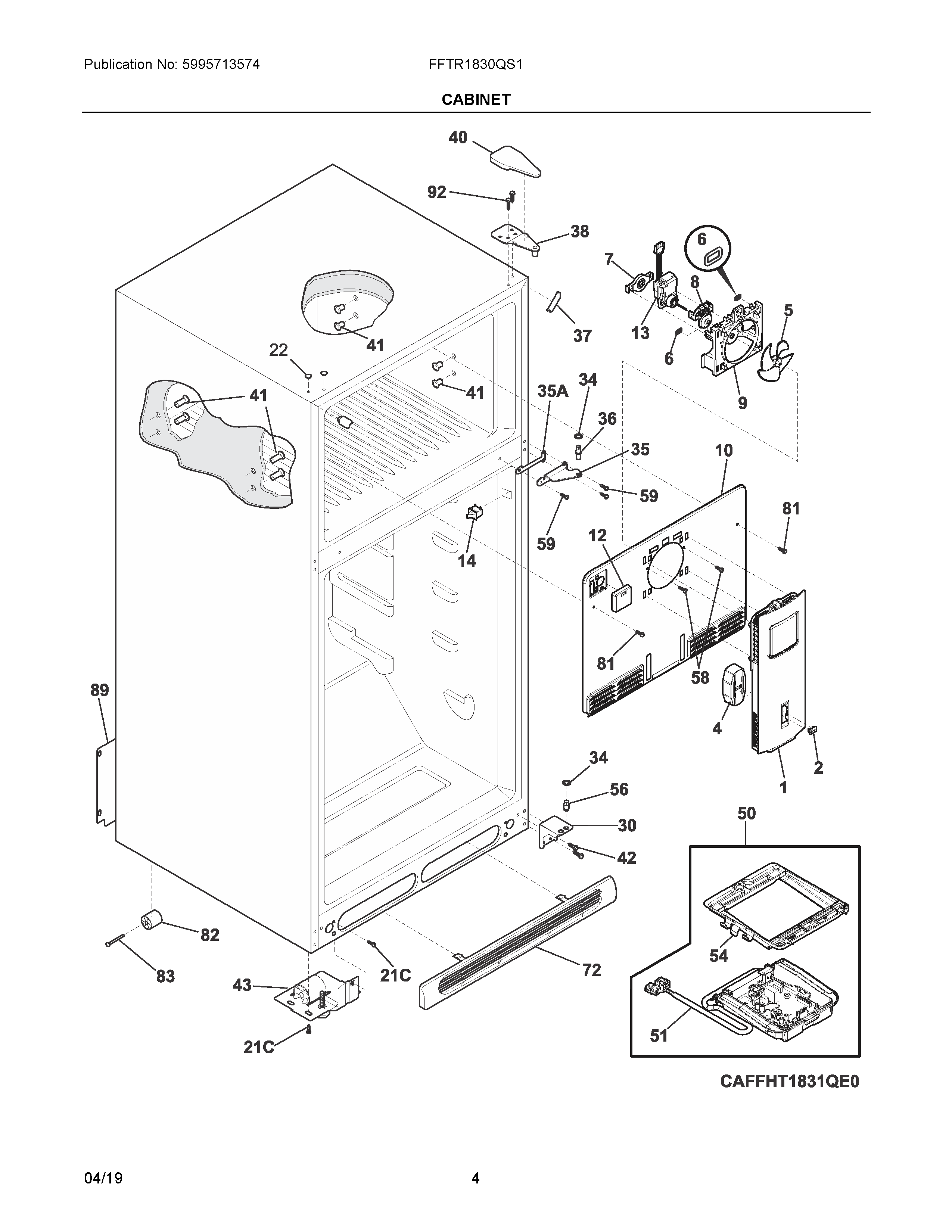

FFTR1830QS1 03 – CABINET

Products

Position	Product
NIA	218515401 Frigidaire Refrigerator Clip
NIB	5304453707 Frigidaire Oven Screw
NI	240494001 Frigidaire Refrigerator Plug Button
NI	218990901 Frigidaire Clip
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	241889001 Frigidaire Refrigerator Roller Assembly
NIA	5304434189 Frigidaire Refrigerator Seal Kit
NIA	241500305 Frigidaire Refrigerator Screw
NIA	241586701 Frigidaire Refrigerator Plug
1	242230902 Frigidaire Refrigerator Cover
2	242229401 Frigidaire Refrigerator Knob
4	242294704 Frigidaire Refrigerator Fan Cover & Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8A	242237301 Frigidaire Grommet
8	215474201 Frigidaire Refrigerator Washer
9	242229301 Frigidaire Refrigerator Shroud Bracket
10	242239304 Frigidaire Refrigerator Cover
12	242249201 Frigidaire Refrigerator Cover
13	5303918786 Frigidaire Refrigerator Evaporator Fan Motor & Ha
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
35A	240336803 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38	240313703 Frigidaire Refrigerator Hinge
40	240354404 Frigidaire Refrigerator Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	241889002 Frigidaire Refrigerator Roller Assembly
50	5303918900 Frigidaire Main Board Kit W/O Housing
51	808700401 Frigidaire Harness
54	807854301 Frigidaire Refrigerator Support
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
57	240542601 Frigidaire Clip-WIRING Harness
58	240433204 Frigidaire Refrigerator Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839407 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
