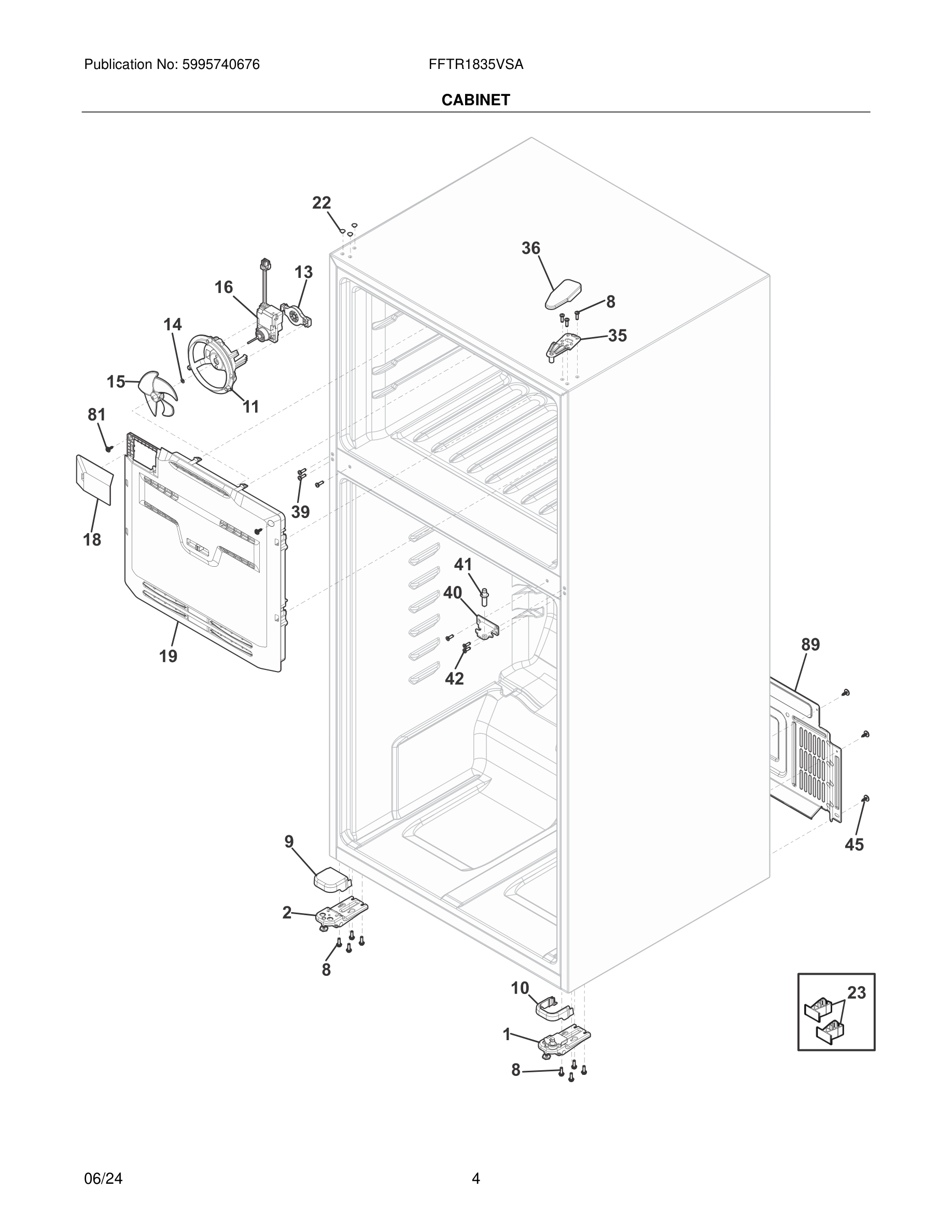

FFTR1835VSA 05 – CABINET

Products

Position	Product
1	5304528866 Frigidaire Refrigerator Assembly-Hinge
2	5304519776 Frigidaire Hinge Assembly
8	5304522279 Frigidaire Screw
9	5304522221 Frigidaire Refrigerator Cover
10	5304522246 Frigidaire Refrigerator Cover
11	5304519752 Frigidaire Refrigerator Shroud
13	242287501 Frigidaire Refrigerator Grommet
14	215474201 Frigidaire Refrigerator Washer
15	242219302 Frigidaire Refrigerator Evaporator Fan Blade
16#	5304530651 Frigidaire Refrigerator Motor
18	5304519662 Frigidaire Refrigerator Cover
19	5304519654 Frigidaire Refrigerator Cover Assembly
22	5304524036 Frigidaire Label
23	CLIP
35	5304519646 Frigidaire Refrigerator Hinge
36	5304530085 Frigidaire Refrigerator Cover
39	5304522253 Frigidaire Screw
40*	5304524219 Frigidaire Refrigerator Spacer
40	5304522100 Frigidaire Refrigerator Hinge
41	5304519642 Frigidaire Refrigerator Pin
42	SCREW-FLT HD M5x16 QDRX
45	241500305 Frigidaire Refrigerator Screw
81	5304519765 Frigidaire Refrigerator Screw
89	5304522114 Frigidaire Refrigerator Access Cover
