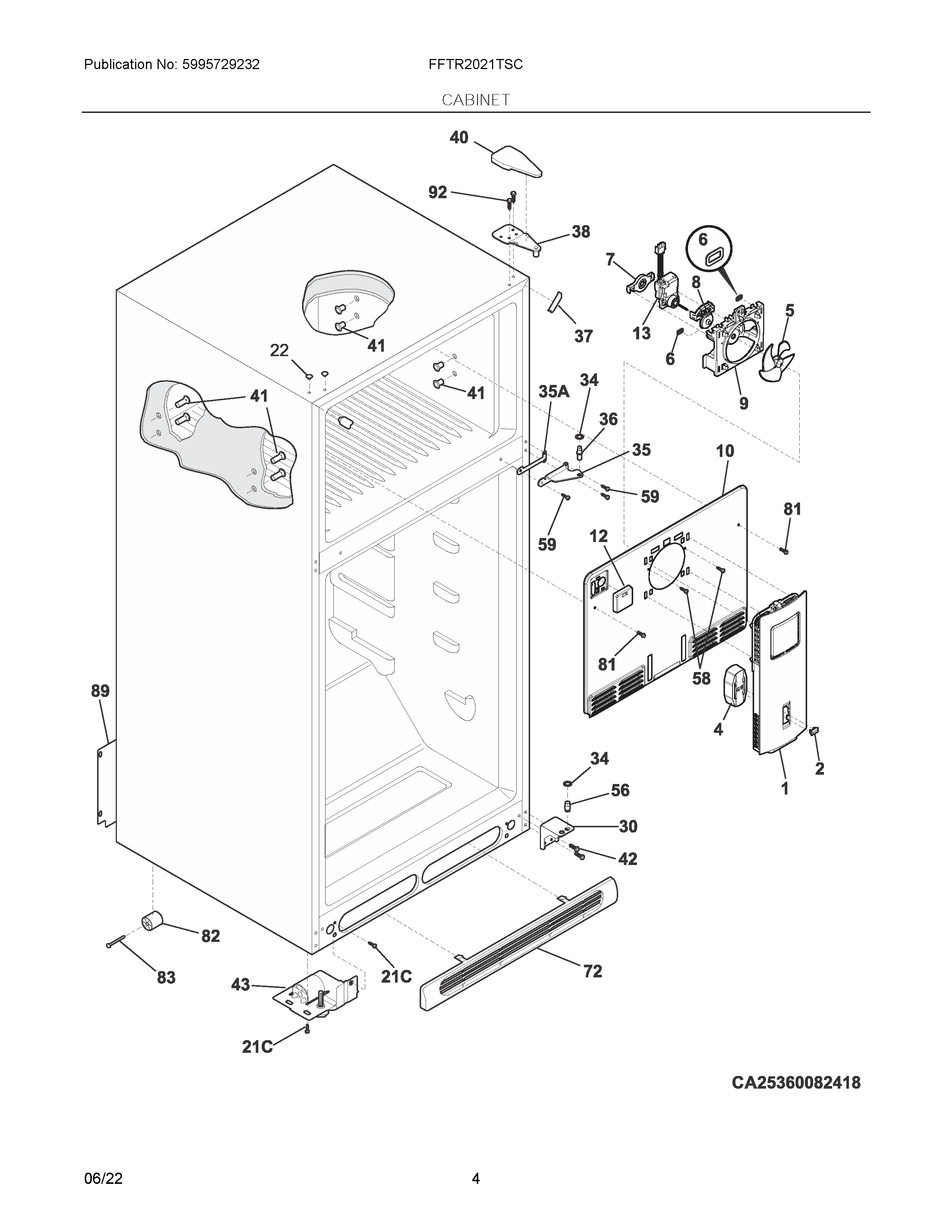

FFTR2021TSC 03 – CABINET

FFTR2021TSC 03 – CABINET

Written by

in

FFTR2021TSC 03 – CABINET

Products

Position	Product
NIA	241586701 Frigidaire Refrigerator Plug
NIB	240568606 Frigidaire Refrigerator Coil Cover Seal
NIB	5304453707 Frigidaire Oven Screw
NIA	218515401 Frigidaire Refrigerator Clip
NIA	241889001 Frigidaire Refrigerator Roller Assembly
NIA	241500303 Frigidaire Refrigerator Screw
NI	240494001 Frigidaire Refrigerator Plug Button
NI	218990901 Frigidaire Clip
NIA	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
NIB	241500305 Frigidaire Refrigerator Screw
1	242294707 Frigidaire Refrigerator Cover Assembly
2	242229401 Frigidaire Refrigerator Knob
4	242294704 Frigidaire Refrigerator Fan Cover & Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8	215474201 Frigidaire Refrigerator Washer
8	242237301 Frigidaire Grommet
9	242229301 Frigidaire Refrigerator Shroud Bracket
10A	242239407 Frigidaire Refrigerator Cover
10	242239404 Frigidaire Refrigerator Cover
12	242249201 Frigidaire Refrigerator Cover
13	5304521244 Frigidaire Refrigerator Evaporator Fan Motor
14A	241554901 Frigidaire Refrigerator Light/Lamp Switch
14	240494007 Frigidaire Refrigerator Gray Hinge Button Plug
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
21C	218252201 Frigidaire Refrigerator Screw
22	215774918 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35A	240336803 Frigidaire Refrigerator Hinge Spacer
35	240313803 Frigidaire Refrigerator Center Hinge Bracket
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354404 Frigidaire Refrigerator Upper Hinge Cover
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
42	5308000039 Frigidaire Refrigerator Screw
43	241889002 Frigidaire Refrigerator Roller Assembly
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	240442707 Frigidaire Refrigerator Screw #10-32 X 3/4
72	241839407 Frigidaire Refrigerator Kickplate/Grille
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	5304522713 Frigidaire Refrigerator Cover-Access
92	241710601 Frigidaire Refrigerator Screw
