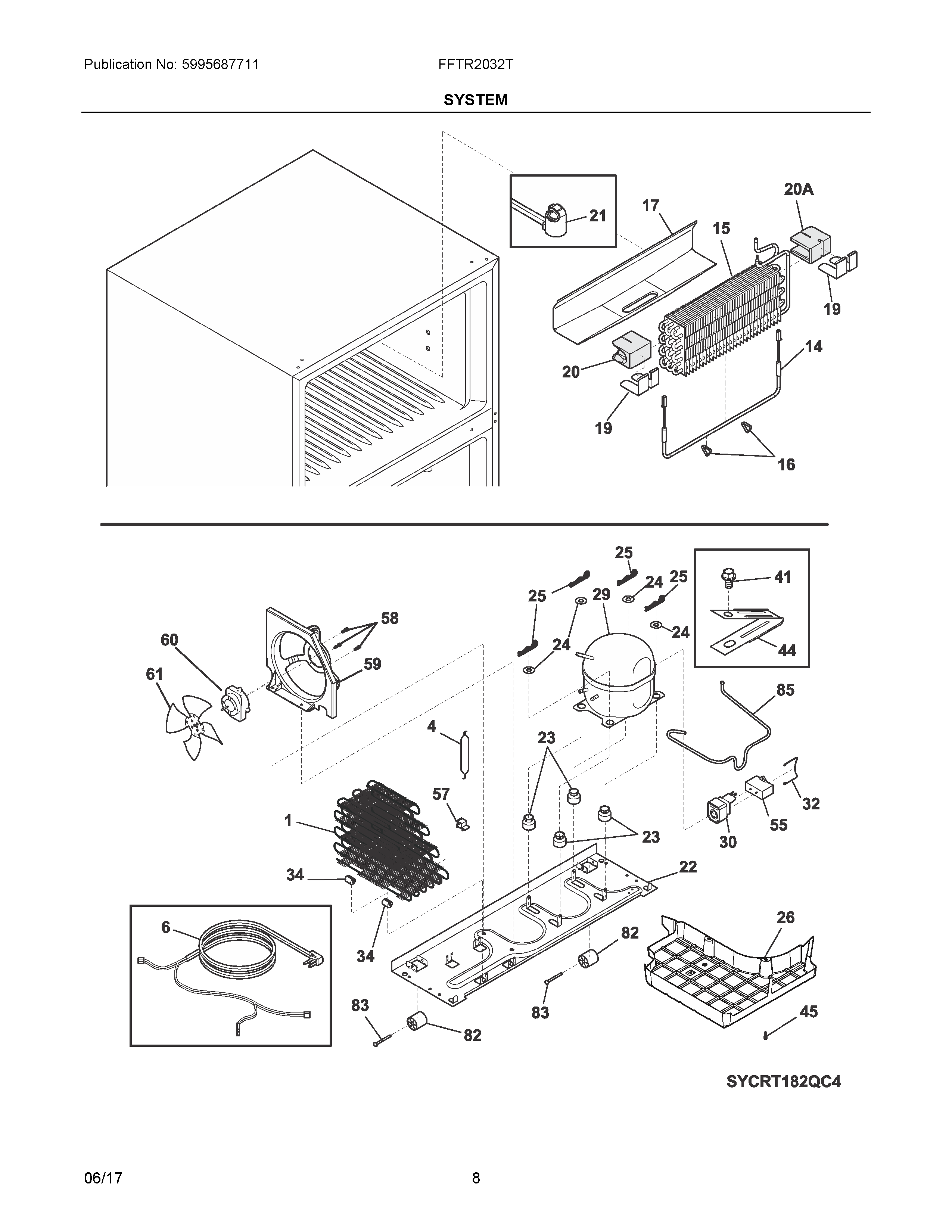

FFTR2032TE0 05 – SYSTEM

FFTR2032TE0 05 – SYSTEM

Written by

in

FFTR2032TE0 05 – SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NI	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIB	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	5304504903 Frigidaire Refrigerator Condenser
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	5304521791 Frigidaire Refrigerator Harness
14	242044021 Frigidaire Refrigerator Defrost Heater
15	5303918274 Frigidaire Refrigerator P1-Evaporator Kit Os1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
19	242320401 Frigidaire Refrigerator Shield
20	5304527429 Frigidaire Refrigerator Block
20A	5304527430 Frigidaire Refrigerator Block
21	5303918634 Frigidaire Kit Thermostat
22	241665504 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	PAN-DEFROST
29	5304524545 Frigidaire Refrigerator Compressor
30	297259505 Frigidaire Refrigerator Starter
32	241650901 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
85	241856909 Frigidaire Refrigerator Connector Tube
