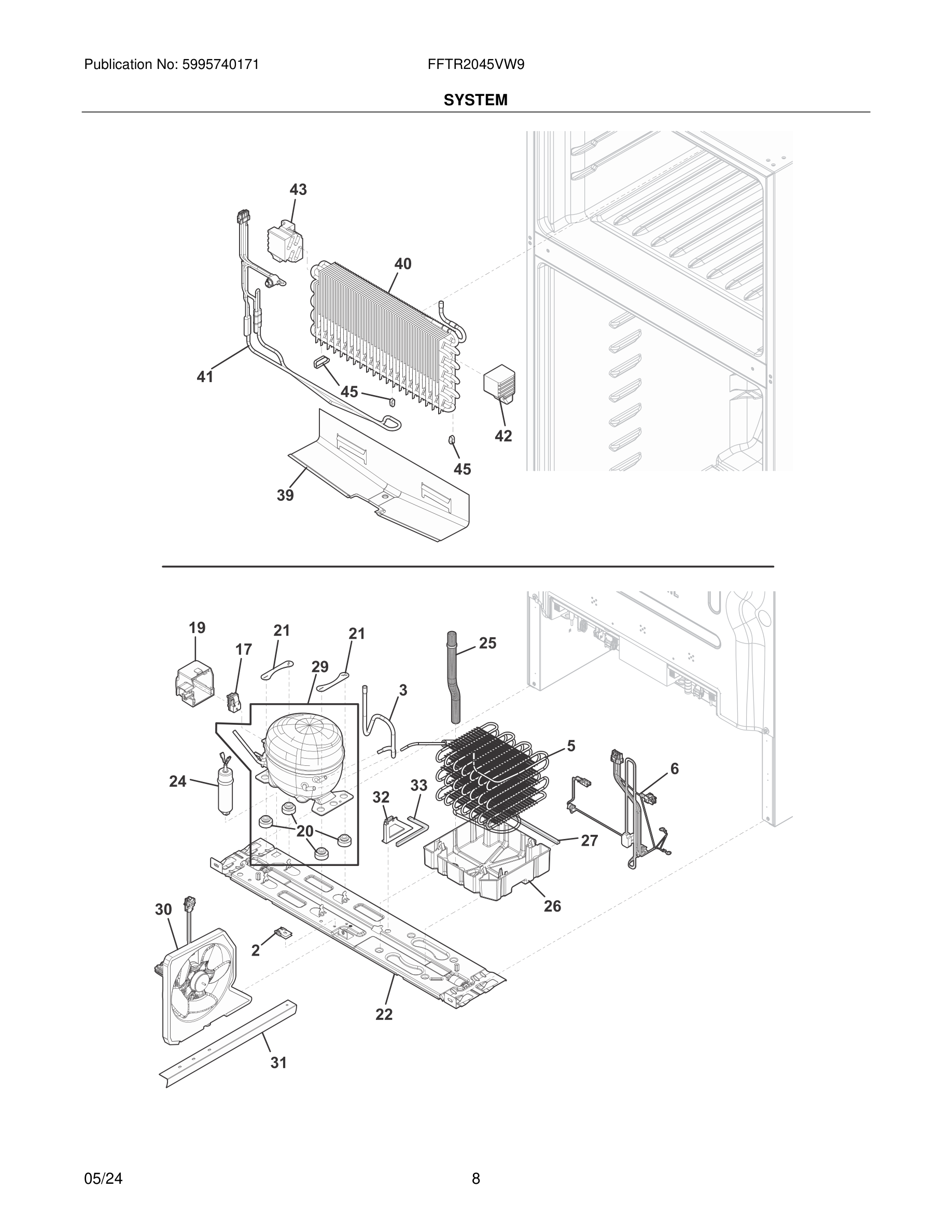

FFTR2045VW9 09 – SYSTEM

Products

Position	Product
*	240433204 Frigidaire Refrigerator Screw
*	241947701 Frigidaire Refrigerator Spacer
2	5304456288 Frigidaire Refrigerator Clamp
3#	TUBE-SUCTION JUMPER
4#	A19676501 Frigidaire Refrigerator Drier Filter
5#	5304530007 Frigidaire Refrigerator Condenser
6#	5304519649 Frigidaire Refrigerator Harness
17#	5304536666 Frigidaire Starter
19	5304528888 Frigidaire Refrigerator Cover
21	5304524607 Frigidaire Clamp
22	5304519667 Frigidaire Refrigerator Base Assembly
24#	297286812 Frigidaire Capacitor-Run Ngm 1
25	5304519743 Frigidaire Refrigerator Tube
26	5304519674 Frigidaire Refrigerator Pan
26	240569202 Frigidaire Refrigerator Screw
27	5304519750 Frigidaire Seal
29#	5304538118 Frigidaire Purifier Component Assembly Esx55Cbc Gen2 Mx
30#	5304519734 Frigidaire Refrigerator Fan Assembly
31	5304519668 Frigidaire Baffle Assembly
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
39	5304519679 Frigidaire Refrigerator Trough
40#	5304522324 Frigidaire Refrigerator Evaporator
41#	5304522340 Frigidaire Refrigerator Heater
42	5304522326 Frigidaire Refrigerator Support
43	5304522327 Frigidaire Refrigerator Support
45	241500305 Frigidaire Refrigerator Screw
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	5304519765 Frigidaire Refrigerator Screw
