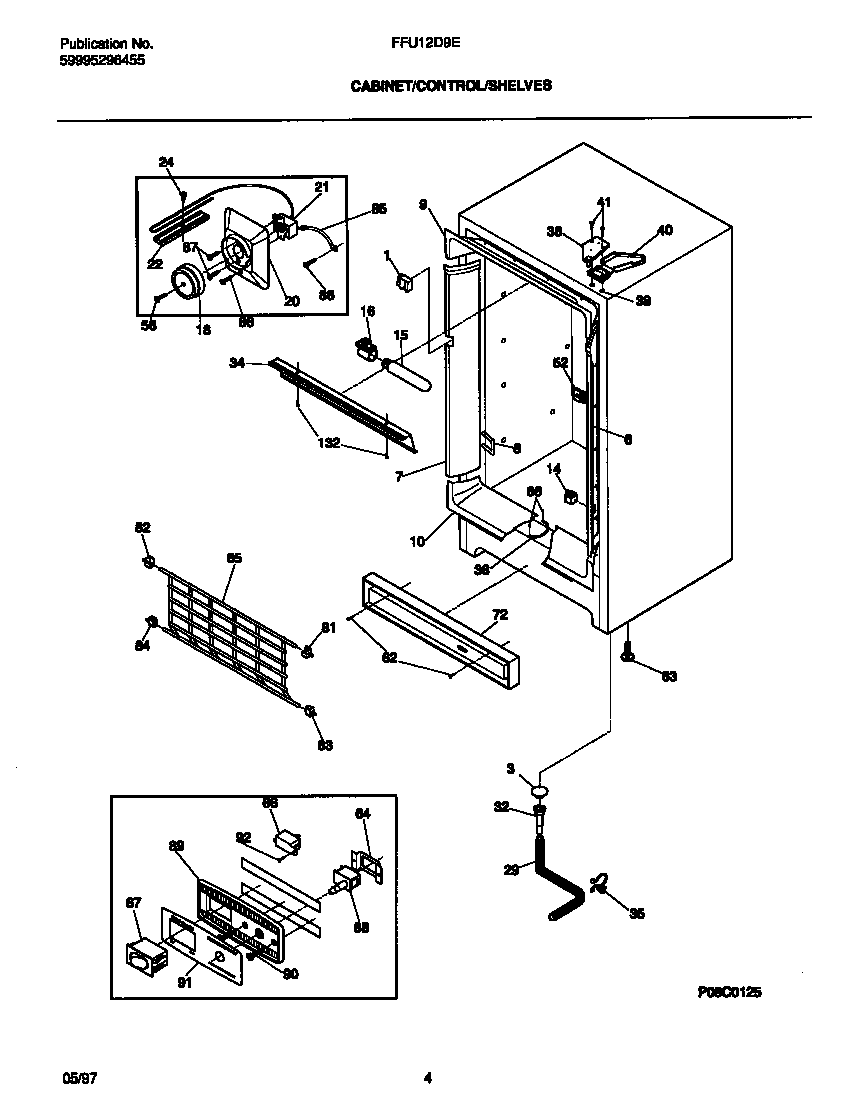

FFU12D9EW2 03 – CABINET/CONTROL/SHELVES

FFU12D9EW2 03 – CABINET/CONTROL/SHELVES

Written by

in

FFU12D9EW2 03 – CABINET/CONTROL/SHELVES

Products

PositionProduct
*56283WCI 09948773
*56282WCI 06594680
*562845303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 216013600
6WCI 216108401
7WCI 216108501
8CLIP, U, LOCK
9WCI 216073300
10WCI 216073200
145309918806 Frigidaire Refrigerator Light Switch Door
155304517886 Frigidaire Refrigerator Light
16SOCKET, LIGHT/LAMP
18WCI 216008602
20WCI 5303288184
21WCI 216405100
22CLAMP, CAP TUBE, COLD CONTROL
24SCREW, CLAMP, TRUSS HD CR, CONTROL
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 216312305
35216273000 Frigidaire Refrigerator Strap
36WCI 06594651
38WCI 5303925086
39WCI 5303294372
40COVER, HINGE
41WCI 5303212937
52RETAINER, WIRE, BREAKER
56WCI 09950853
62131420300 Frigidaire Screw
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
64WCI 216009200
65WCI 216250200
66WCI 5303212697
67WCI 5303212703
72WCI 216173900
81WCI 06599973
82WCI 06599974
83WCI 06599975
84WCI 06599976
85WIRE-GROUND, TEMP CONTROL
86216036601 Frigidaire Refrigerator Screw
87SCREW
88WCI 216380500
89BEZEL-NAMEPLATE,DEFROST
90SCREW, TH, 8-32 X 2-1/2
91WCI 216372000
92SCREW,HEX WASHER HEAD ,8-32 X 7/16 ,BUZZER
132WCI 5303283898
