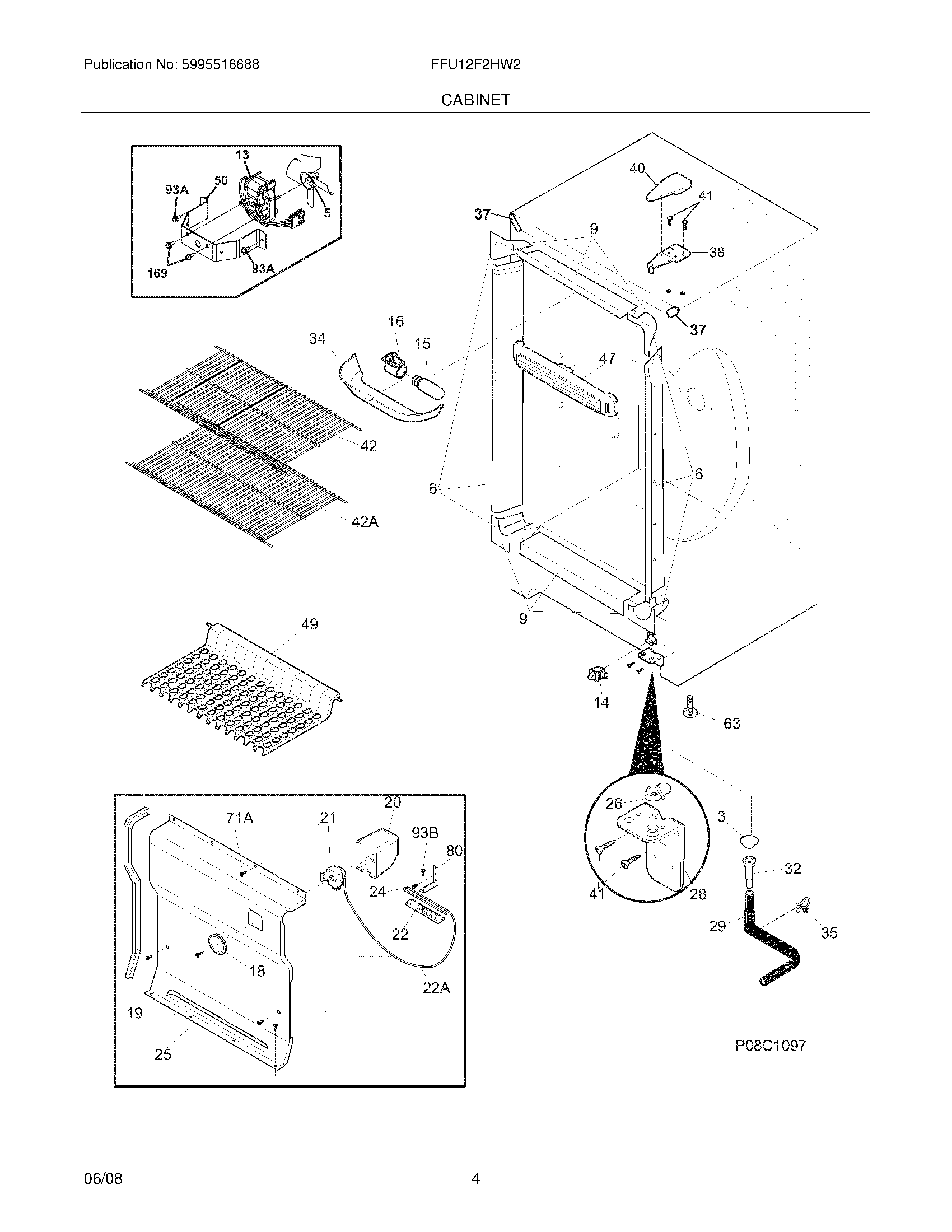

FFU12F2HW2 05 – CABINET

FFU12F2HW2 05 – CABINET

Written by

in

FFU12F2HW2 05 – CABINET

Products

Position	Product
NI	WCI 297221301
NI	297315800 Frigidaire Refrigerator Clip
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	WCI 297164600
NI	WCI 297164601
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 297200300
9	WCI 297200200
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204900
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	216788000 Frigidaire Freezer Temperature Control
22A	TUBE
22	CLAMP, CAP TUBE, COLD CONTROL
24	Screw,type A ,10-24 x 3/8
25	WCI 297098650
26	WCI 216503300
28	297283900 Frigidaire Refrigerator Hinge-Bottom
29	5304510365 Frigidaire Refrigerator Drain Hose
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
35	216273000 Frigidaire Refrigerator Strap
37	5303918606 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42	WCI 297120000
42A	WCI 297119900
47	297192903 Frigidaire Refrigerator Baffle
49	WCI 216937600
50	216394050 Frigidaire Refrigerator Bracket
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	WCI 297146800
80	WCI 06594601
93A	216629601 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
169	216912401 Frigidaire Refrigerator Screw
