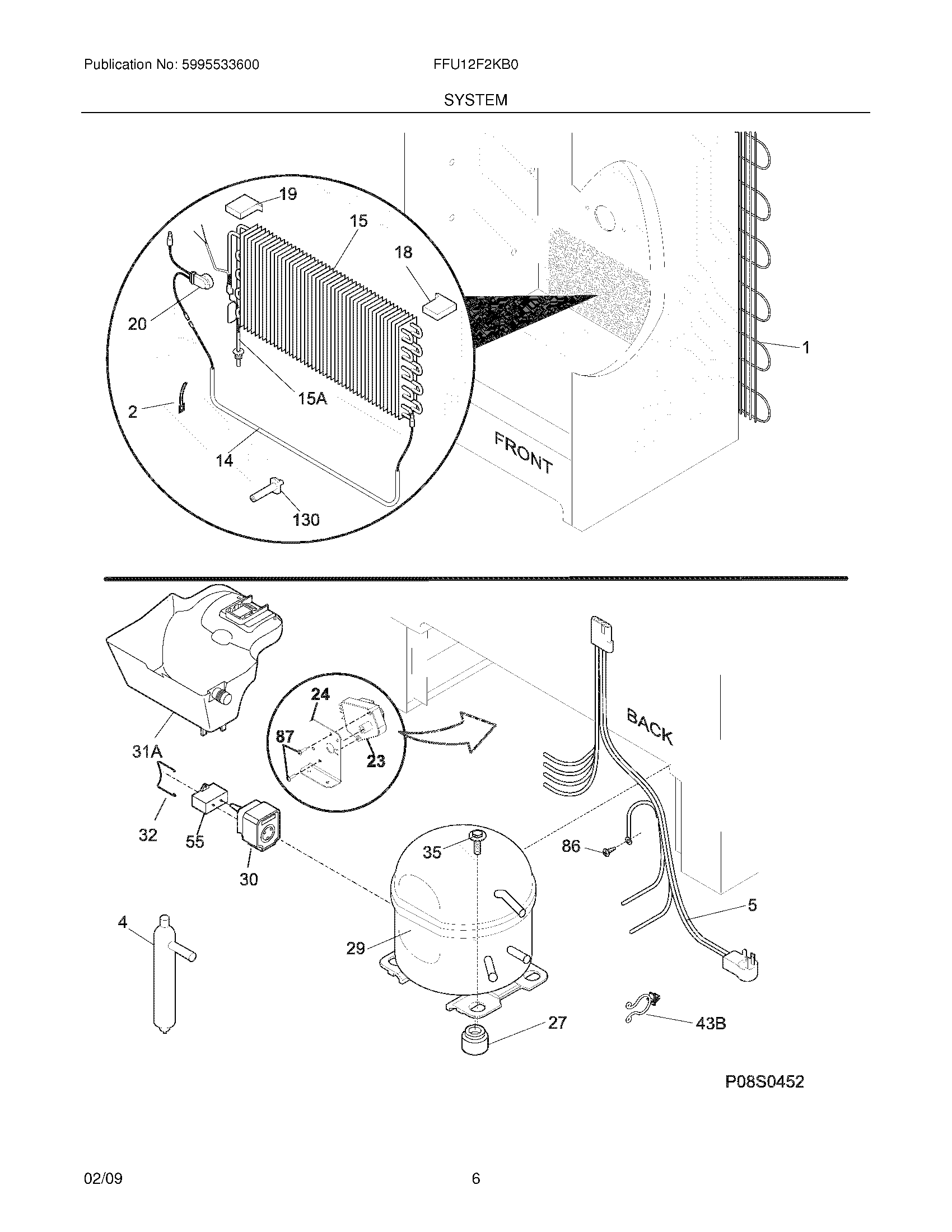

FFU12F2KB0 07 – SYSTEM

Products

Position	Product
NI	241853202 Frigidaire Refrigerator Screw
NI	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI	WCI 216502500
NI	297014702 Frigidaire Refrigerator Suction Line Plug
1	5300123788 Frigidaire Refrigerator Condenser
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297172200
14	5304496687 Frigidaire Refrigerator Defrost Heater
15	297414800 Frigidaire Refrigerator Evaporator
15A	297348500 Frigidaire Heat Exchange
18	297078701 Frigidaire Refrigerator Insulator-Evaporator
19	297078801 Frigidaire Refrigerator Evaporator Insulator
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 216968501
27	216498900 Frigidaire Refrigerator Grommet
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	216954214 Frigidaire Compressor Start Device
31A	WCI 297216900
32	Valve,breather ,door base
32	216954300 Frigidaire Refrigerator Clip
35	WCI 297177200
43B	297315800 Frigidaire Refrigerator Clip
55	5304464438 Frigidaire Compressor Run Capacitor
86	216036601 Frigidaire Refrigerator Screw
87	216858001 Frigidaire Refrigerator Screw
130	297244700 Frigidaire Refrigerator Support
