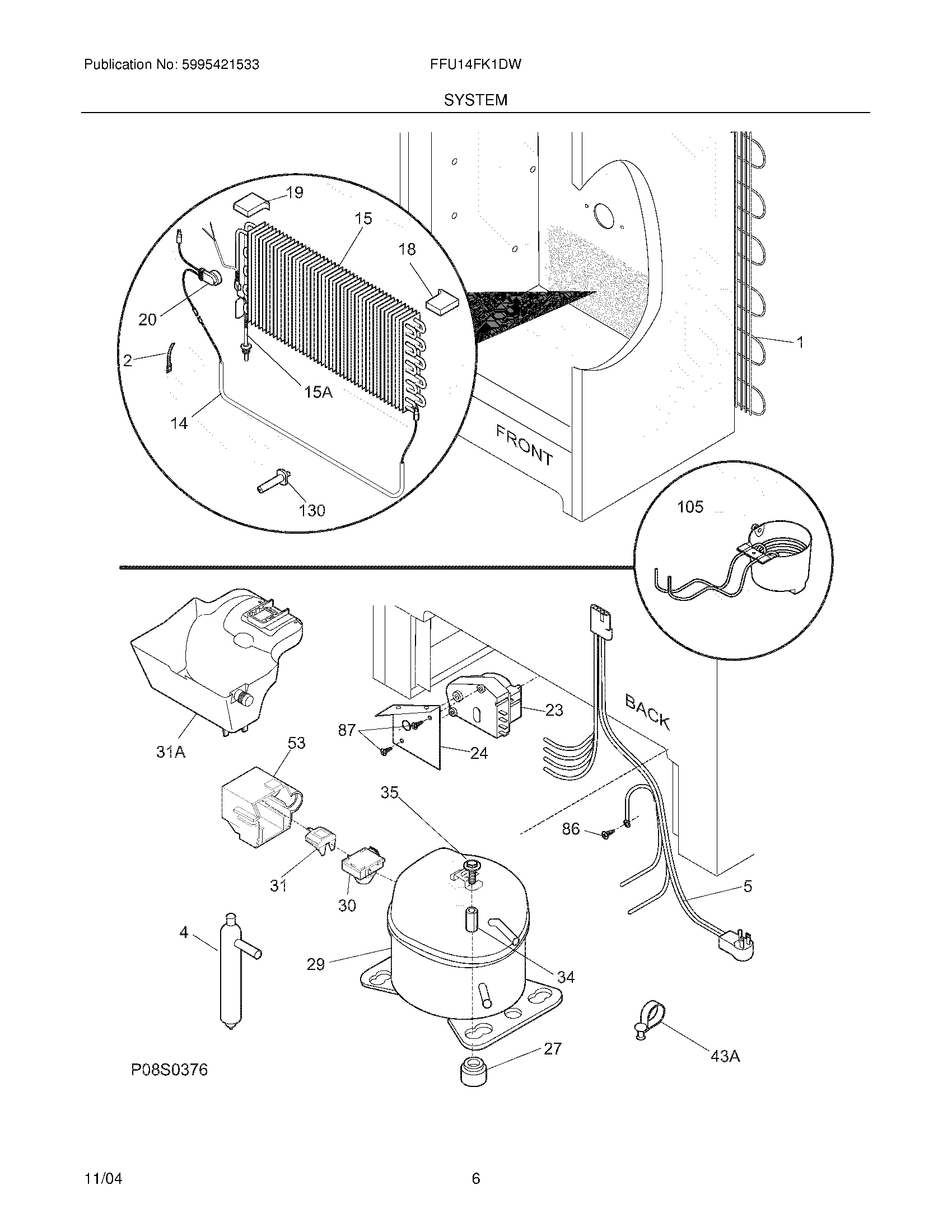

FFU14FK1DW2 07 – SYSTEM

Products

Position	Product
NI	WCI 216502500
1	5300123788 Frigidaire Refrigerator Condenser
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 216891300
14	5304496687 Frigidaire Refrigerator Defrost Heater
15A	297348500 Frigidaire Heat Exchange
15	297414800 Frigidaire Refrigerator Evaporator
18	WCI 216727600
19	WCI 216727700
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 08016580
27	216498900 Frigidaire Refrigerator Grommet
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	5304493950 Frigidaire Start Relay Kit
31A	WCI 216948700
31	216954208 Frigidaire Refrigerator Controller
34	SLEEVE-COMPRESSOR
35	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A	297315800 Frigidaire Refrigerator Clip
53	WCI 216347800
86	216036601 Frigidaire Refrigerator Screw
87	SCREW
130	297244700 Frigidaire Refrigerator Support
