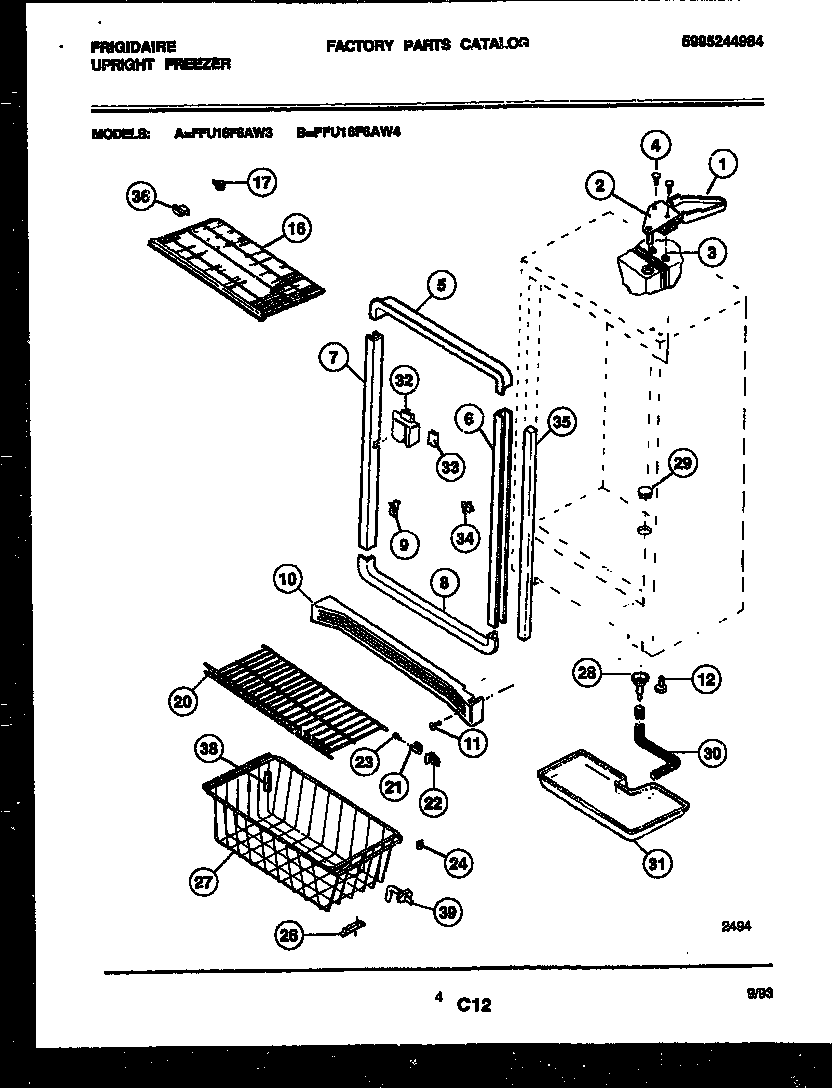

FFU16F6AL3 03 – CABINET PARTS

Products

Position	Product
2	HINGE, TOP
3	WCI 5303294372
4	SCREW
5	WCI 216085900
6	WCI 216108801
7	WCI 216108901
8	WCI 216085800
9	WCI 06594680
10	WCI 216249900
11	216858001 Frigidaire Refrigerator Screw
12	WCI 216218100
16	WCI 216159000
17	WCI 5306594584
20	WCI 216211600
21	WCI 5306594585
22	301036 Frigidaire Refrigerator Insert Nut
23	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
24	5305878546 Frigidaire Refrigerator Bumper-Basket
26	08009560 Frigidaire 0 Basket Glide
27	5304497658 Frigidaire Refrigerator Basket
28	5304511843 Frigidaire Refrigerator Sleeve
29	216503100 Frigidaire Refrigerator Screen-Drain
30	5304512272 Frigidaire Hose Drain
31	WCI 5308016387
32	WCI 216013600
33	CLIP, U, LOCK
34	5309918806 Frigidaire Refrigerator Light Switch Door
35	INSULATION (CUT TO SIZE)
36A	WCI 5306594707
36	WCI 5306594706
38	WCI 5303288196
39	WCI 09948791
