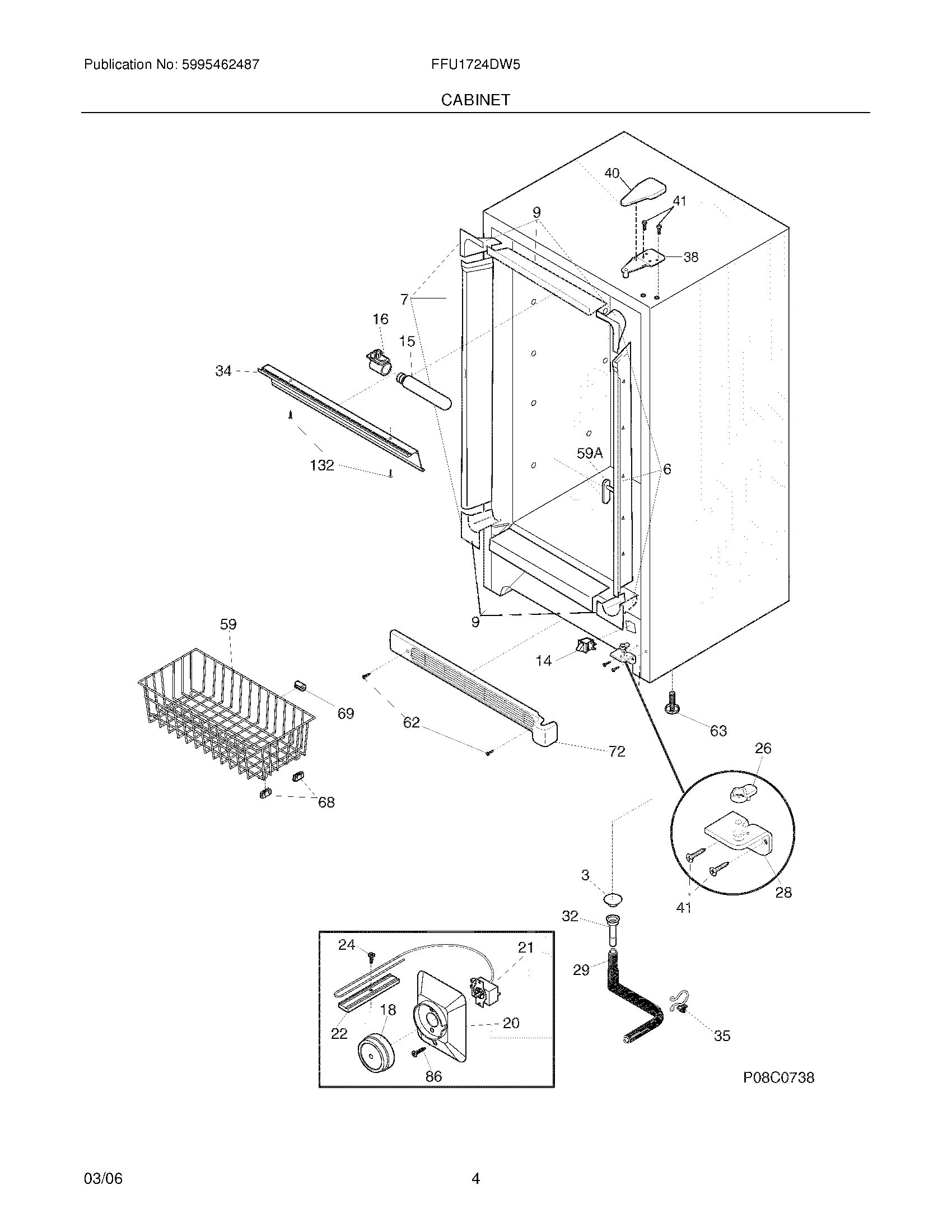

FFU1724DW5 05 – CABINET

Products

Position	Product
NI	WCI 216795006
NI	297001704 Frigidaire Refrigerator Insulation
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
3	PLUG-DRAIN,EXTERIOR
6	WCI 216604200
7	WCI 216603700
9	WCI 216603300
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
20	COVER-CONTROL HOUSING
21	297216004 Frigidaire Refrigerator Thermostat Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
26	WCI 216503300
28	WCI 216247400
29	5304510363 Frigidaire Refrigerator Hose-Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816200
35	216273000 Frigidaire Refrigerator Strap
38	WCI 216939100
40	297164400 Frigidaire Refrigerator Hinge Cover
41	Screw-hinge,12-24x.700 HWH
59	WCI 216154400
59A	STOP-BASKET, (2)
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
68	08009560 Frigidaire 0 Basket Glide
69	5305878546 Frigidaire Refrigerator Bumper-Basket
72	297036907 Frigidaire Refrigerator Grille Kickplate
86	216036601 Frigidaire Refrigerator Screw
132	WCI 5303283898
