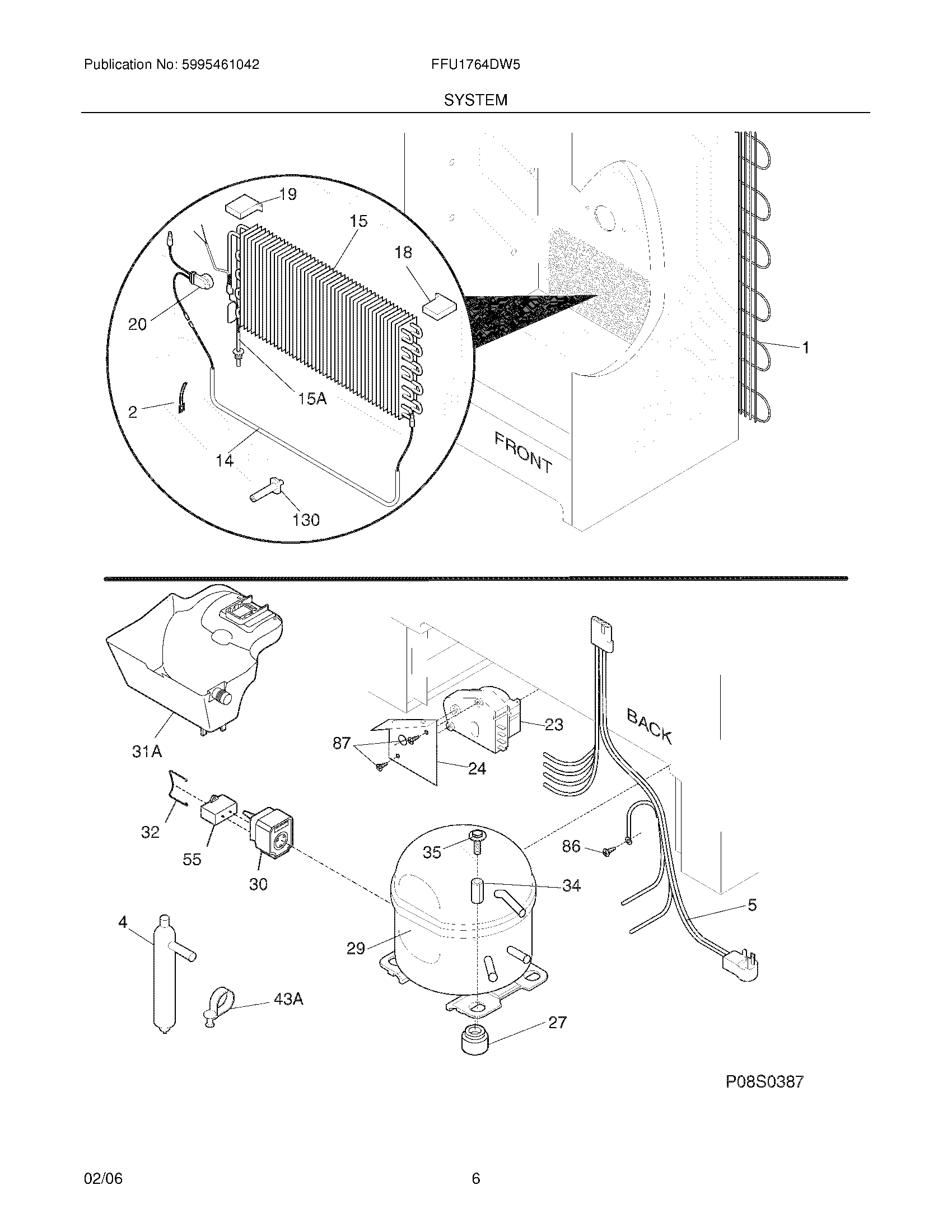

FFU1764DW5 07 – SYSTEM

Products

Position	Product
NI	297014702 Frigidaire Refrigerator Suction Line Plug
NI	WCI 216502500
NI	SPACER, COMPRESSOR
1	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 297021200
14	216730700 Frigidaire Refrigerator Defrost Heater
15	297414901 Frigidaire Refrigerator Evaporator
15A	216783200 Frigidaire Refrigerator P1-Heat Exchanger
18	WCI 216727600
19	WCI 216727700
20	297216600 Frigidaire Refrigerator Defrost Thermostat
23	5304518034 Frigidaire Refrigerator Defrost Timer
24	WCI 08016580
27	216498900 Frigidaire Refrigerator Grommet
29	5304511982 Frigidaire Refrigerator Compressor Kit
30	216954202 Frigidaire Refrigerator Controller
32	WCI 216649100
34	SLEEVE-COMPRESSOR
35	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A	297315800 Frigidaire Refrigerator Clip
55	218909912 Frigidaire Capacitor Run
86	216036601 Frigidaire Refrigerator Screw
87	SCREW
130	297244700 Frigidaire Refrigerator Support
