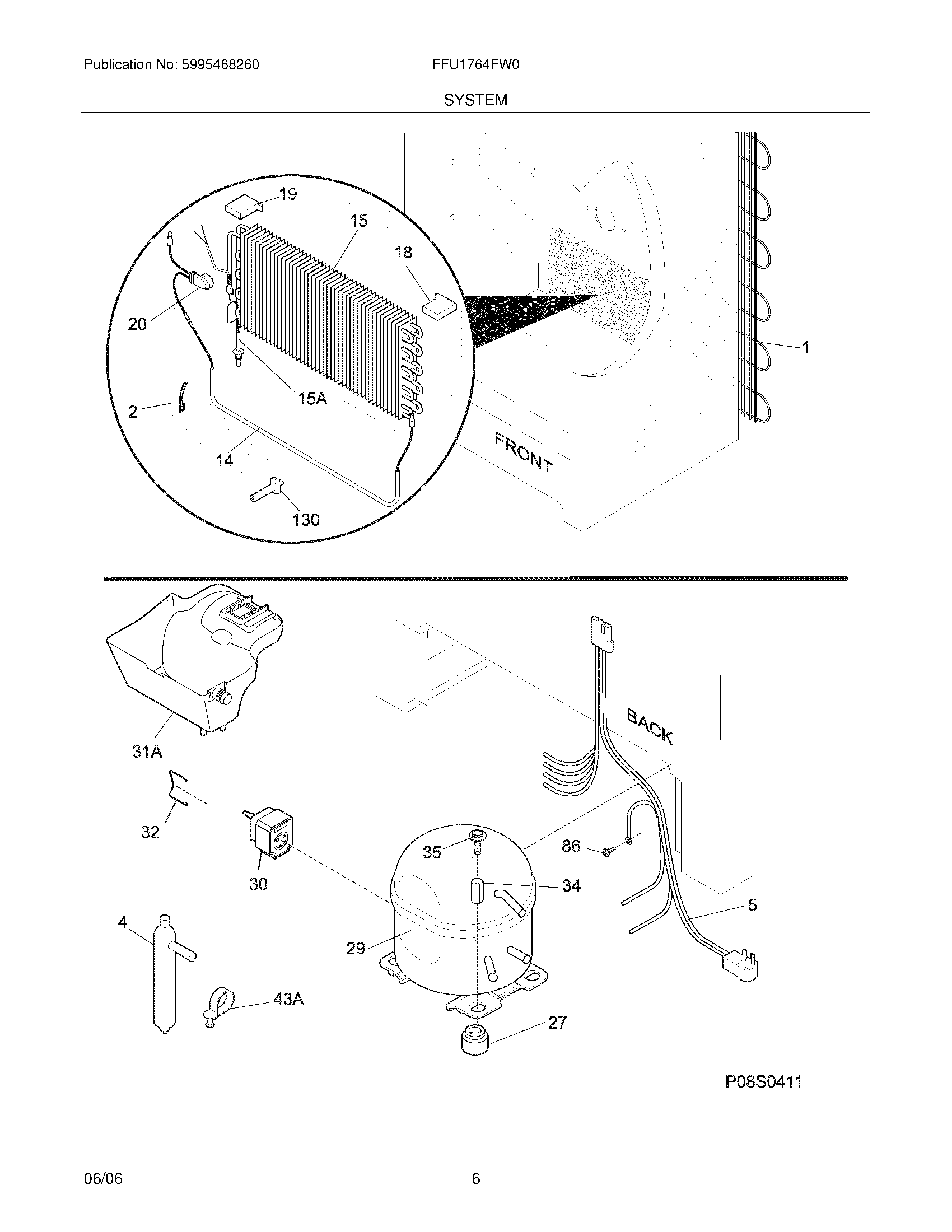

FFU1764FW0 07 – SYSTEM

Products

PositionProduct
NI297014702 Frigidaire Refrigerator Suction Line Plug
NIWCI 216502500
NISPACER, COMPRESSOR
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 297016300
14216730700 Frigidaire Refrigerator Defrost Heater
15A216783200 Frigidaire Refrigerator P1-Heat Exchanger
15297414901 Frigidaire Refrigerator Evaporator
18WCI 216727600
19WCI 216727700
20297216600 Frigidaire Refrigerator Defrost Thermostat
27216498900 Frigidaire Refrigerator Grommet
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 297051000
32CLAMP, ELEC CONT MTG, COMPRESSOR
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43A297315800 Frigidaire Refrigerator Clip
86216858001 Frigidaire Refrigerator Screw
130297244700 Frigidaire Refrigerator Support
