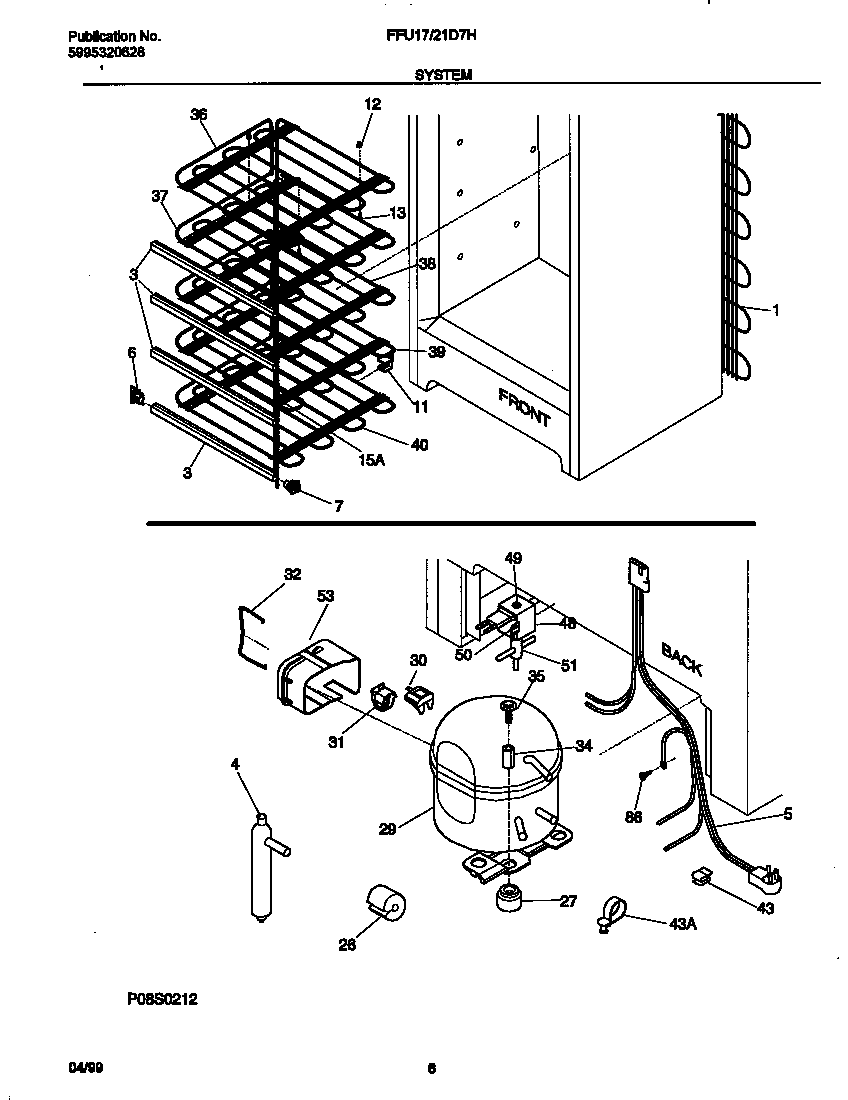

FFU17D7HW0 04 – SYSTEM

FFU17D7HW0 04 – SYSTEM

Written by

in

FFU17D7HW0 04 – SYSTEM

Products

PositionProduct
*62365CLIP
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216664000
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13WCI 216138900
15WCI 216468200
26WCI 216511900
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30216594300 Frigidaire Refrigerator Starter
31WCI 216100115
325303006412 Frigidaire Refrigerator Cover Mounting Strap
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
36297234500 Frigidaire Refrigerator Evaporator
38WCI 216070700
43297315800 Frigidaire Refrigerator Clip
48WCI 3201514
49WCI 3201513
50WCI 216533400
51WCI 5303210219
53WCI 08006982
86216036601 Frigidaire Refrigerator Screw
