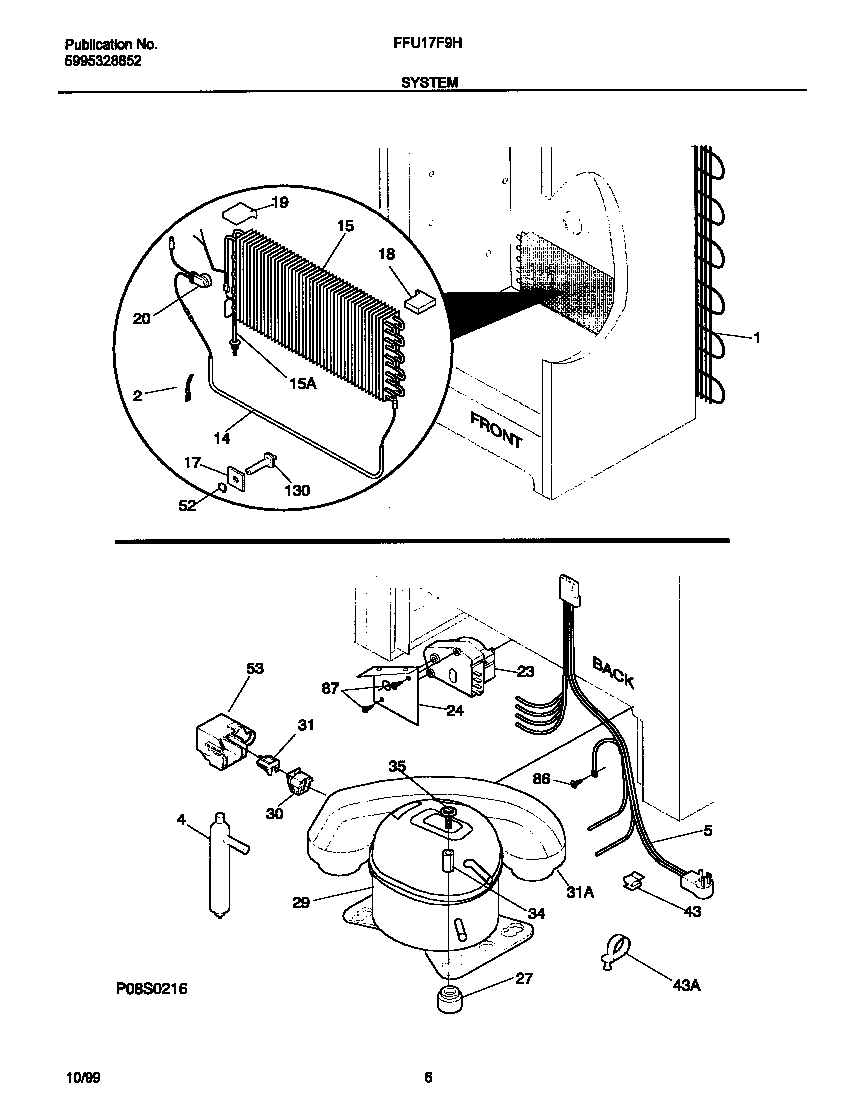

FFU17F9HW1 04 – SYSTEM

FFU17F9HW1 04 – SYSTEM

Written by

in

FFU17F9HW1 04 – SYSTEM

Products

PositionProduct
*08324WCI 216511900
*083255303006412 Frigidaire Refrigerator Cover Mounting Strap
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216660900
14216608500 Frigidaire Refrigerator Defrost Heater Assembly
15WCI 216385200
15WCI 216195900
17WCI 06599546
18WCI 06599531
19WCI 3017674
20297216600 Frigidaire Refrigerator Defrost Thermostat
235304518034 Frigidaire Refrigerator Defrost Timer
24WCI 08016580
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30216594300 Frigidaire Refrigerator Starter
315304428401 Frigidaire Refrigerator Pan Kit
31WCI 216100115
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
43WCI 09950610
43297315800 Frigidaire Refrigerator Clip
52WCI 08013198
53WCI 08006982
86216036601 Frigidaire Refrigerator Screw
87SCREW
130WCI 06599544
