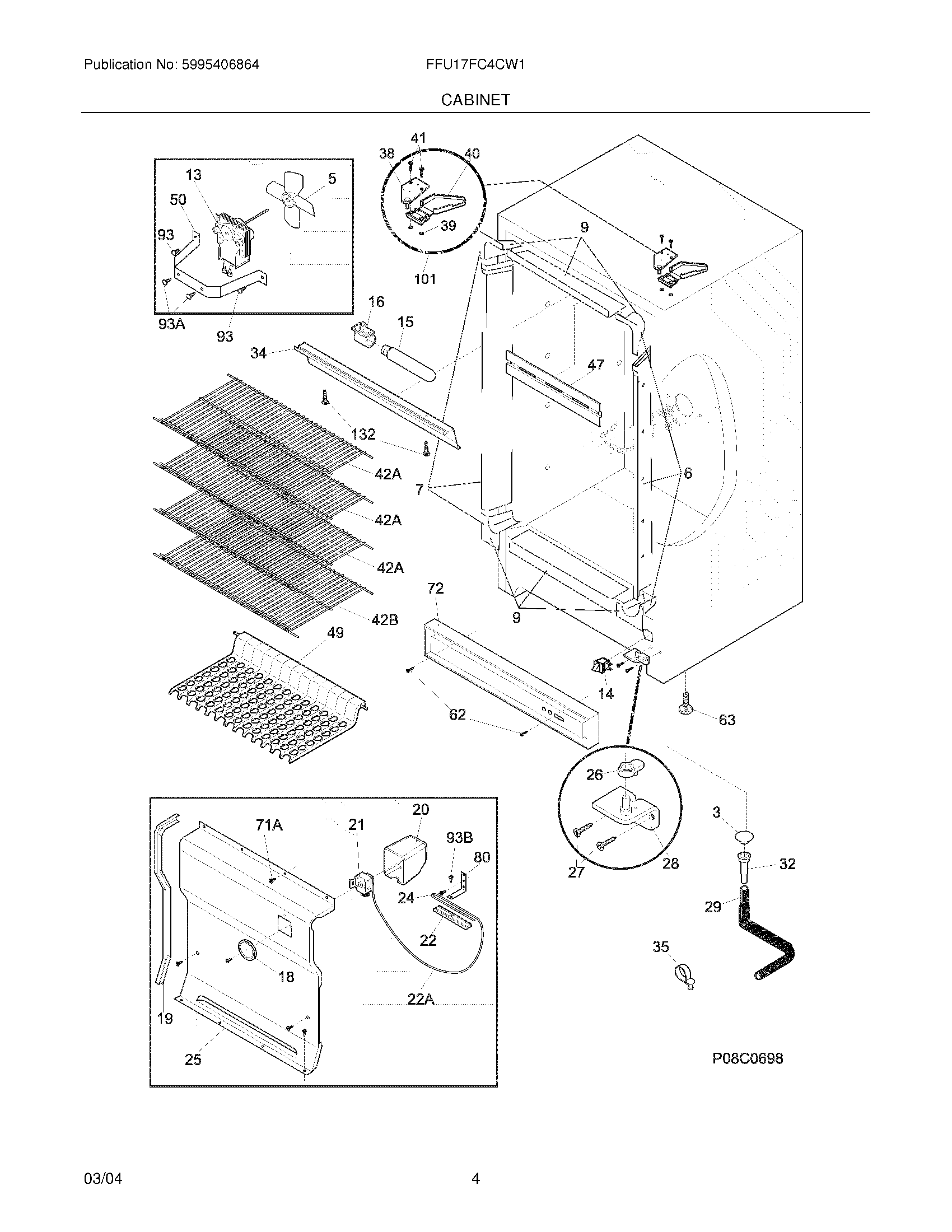

FFU17FC4CW1 05 – CABINET

Products

Position	Product
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	WCI 09948773
NI	WCI 216795405
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604200
7	WCI 216603700
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204900
20	WCI 216230300
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216820200
26	WCI 216503300
27	154518001 Frigidaire Refrigerator Screw
28	WCI 216247400
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816212
35	297315800 Frigidaire Refrigerator Clip
38	HINGE-UPPER
39	WCI 5303294372
40	297164400 Frigidaire Refrigerator Hinge Cover
41	241710601 Frigidaire Refrigerator Screw
42B	WCI 216458200
42A	WCI 216458400
47	297192903 Frigidaire Refrigerator Baffle
49	216937701 Frigidaire Refrigerator Trivet
50	WCI 216394000
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	134178901 Frigidaire Screw
72	WCI 216294400
80	WCI 06594601
93	216858001 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
101	KIT-TOP HINGE
132	WCI 5303283898
