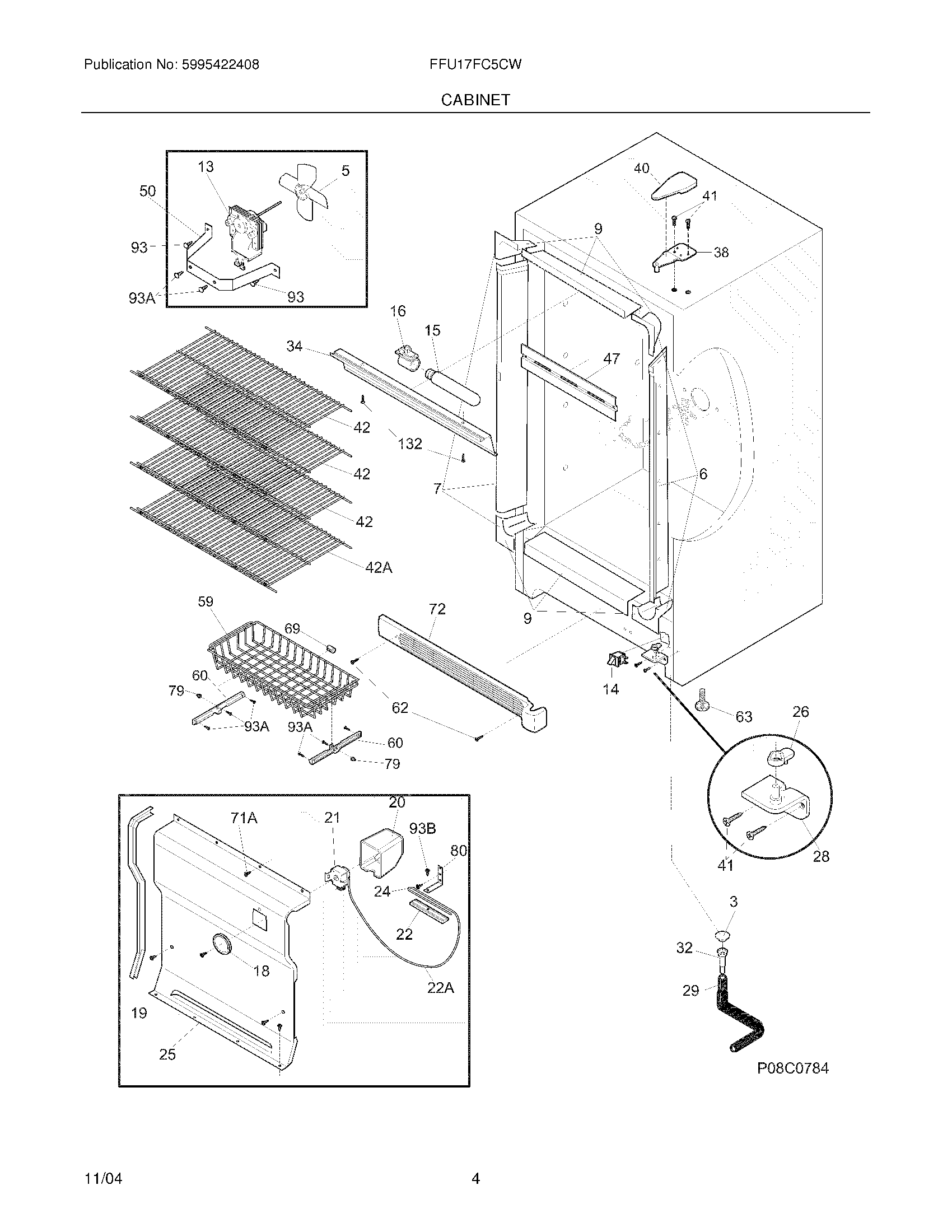

FFU17FC5CW3 05 – CABINET

Products

Position	Product
NI	WCI 216795405
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	297315800 Frigidaire Refrigerator Clip
NI	WCI 09948773
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 216604200
7	WCI 216603700
9	WCI 216603300
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	WCI 216204900
20	WCI 216230300
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	SCREW, CLAMP, TRUSS HD CR, CONTROL
25	WCI 216820200
26	WCI 216503300
28	WCI 216247400
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 216816200
38	WCI 216939100
40	297164400 Frigidaire Refrigerator Hinge Cover
41	WCI 216954400
42	WCI 216458400
42A	WCI 216458200
47	297192903 Frigidaire Refrigerator Baffle
50	WCI 216394000
59	WCI 216372800
60	297013500 Frigidaire Refrigerator Slide
62	131420300 Frigidaire Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
69	5305878546 Frigidaire Refrigerator Bumper-Basket
71A	134178901 Frigidaire Screw
72	297036907 Frigidaire Refrigerator Grille Kickplate
79	301036 Frigidaire Refrigerator Insert Nut
80	WCI 06594601
93B	216036601 Frigidaire Refrigerator Screw
93	216858001 Frigidaire Refrigerator Screw
93A	216629601 Frigidaire Refrigerator Screw
132	WCI 5303283898
