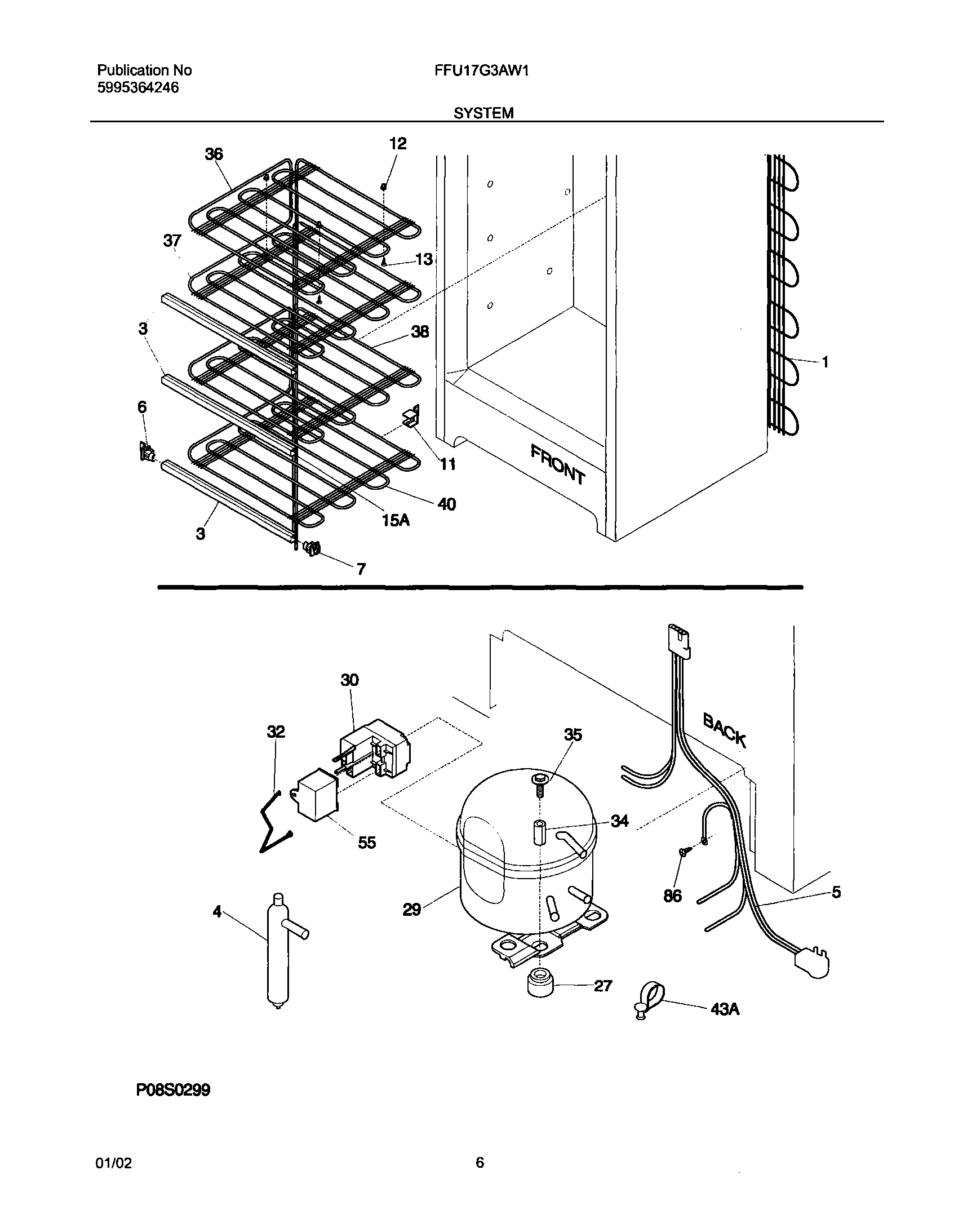

FFU17G3AW1 07 – SYSTEM

FFU17G3AW1 07 – SYSTEM

Written by

in

FFU17G3AW1 07 – SYSTEM

Products

PositionProduct
NIWCI 216502500
NIWCI 216511900
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216809900
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13WCI 216138900
15AWCI 216401400
27216498900 Frigidaire Refrigerator Grommet
295304507766 Frigidaire Refrigerator Compressor Kit
305304491941 Frigidaire Refrigerator Starter Relay and Plug Kit
32Valve,breather ,door base
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
36297234500 Frigidaire Refrigerator Evaporator
37WCI 216070600
38WCI 216070700
43A297315800 Frigidaire Refrigerator Clip
555304464438 Frigidaire Compressor Run Capacitor
86216036601 Frigidaire Refrigerator Screw
