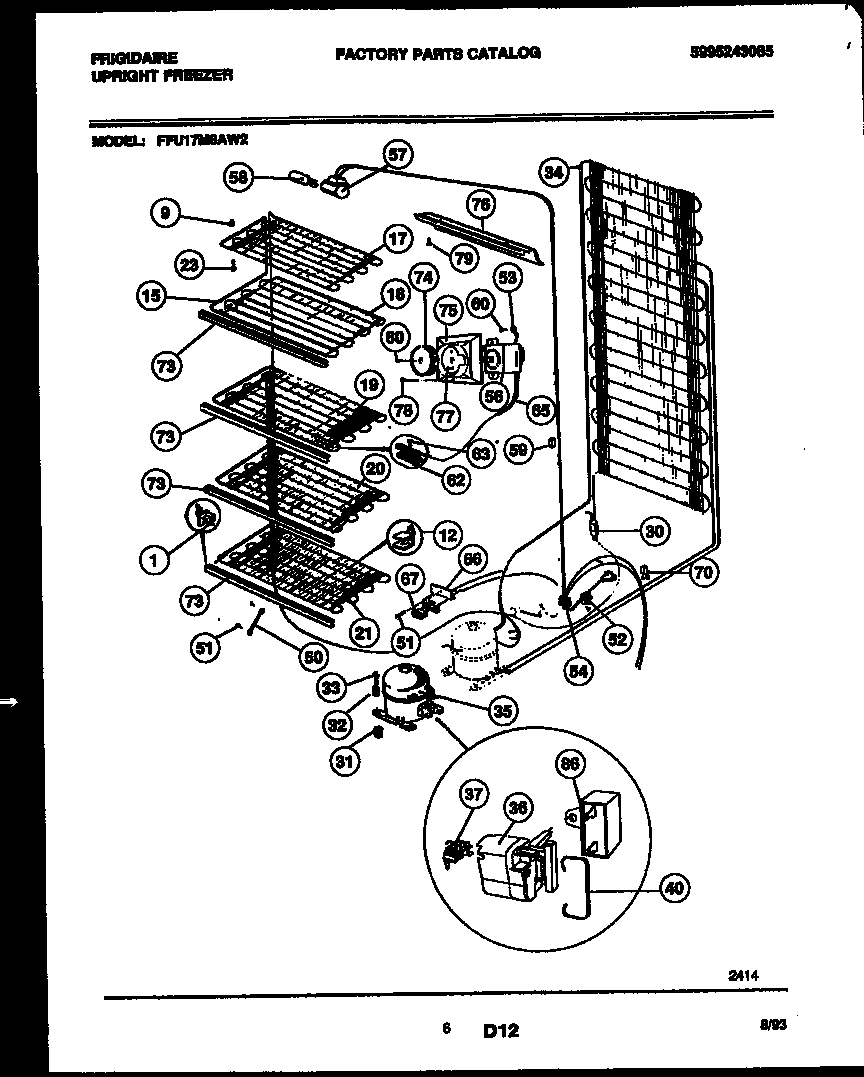

FFU17M6AW2 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
*84871	RETAINER POWER CORD (NOT ORIGINAL EQUIPMENT. CUSTOMER PU
1	297001600 Frigidaire Shelf Support
1A	297001500 Frigidaire Shelf Support
9	GROMMET-SPACER
12	WCI 216225600
15	WCI 08010753
17	297234500 Frigidaire Refrigerator Evaporator
18	WCI 216070600
19	WCI 216070700
23	WCI 216138900
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
34	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
35	WCI 216241500
36	WCI 216008900
37	WCI 5303206836
40	WCI 215012000
50	WCI 06594651
51	WCI 08037851
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WIRING HARNESS
56	WCI 216023000
57	SOCKET, LIGHT/LAMP
58	5304517886 Frigidaire Refrigerator Light
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
66	WCI 216009101
67	WCI 06594648
70	5303212614 Frigidaire Refrigerator Clip
73	5304509723 Frigidaire Refrigerator Trim
74	WCI 216008602
75	WCI 5303288184
76	WCI 216241601
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
79	WCI 5303283898
80	WCI 09950853
86	5304464438 Frigidaire Compressor Run Capacitor
