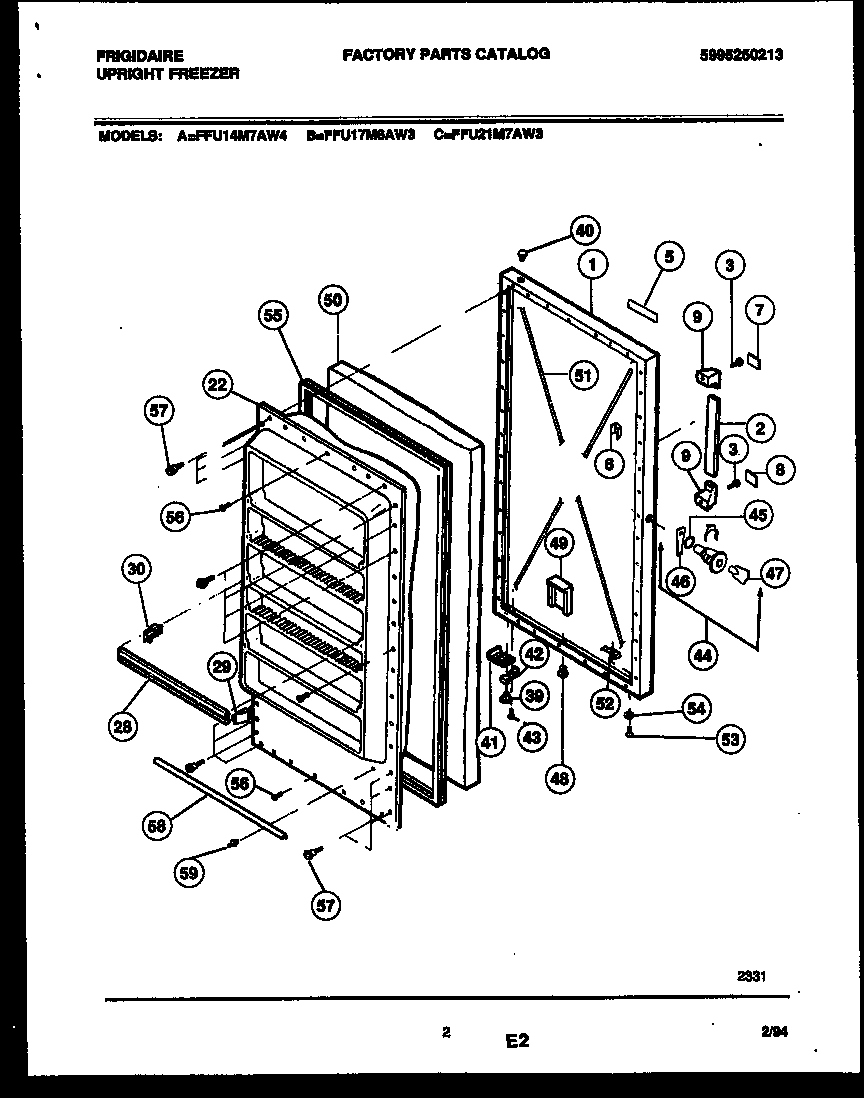

FFU17M6AW3 02 – DOOR PARTS

Products

Position	Product
*93585	WCI 09948971
*93585	WCI 216156800
*93585	WCI 5309948970
1	WCI 216011521
2	WCI 216087700
3	131420300 Frigidaire Screw
5	WCI 215008601
6	WCI 3202683
7	WCI 216208900
8	WCI 216209000
9	WCI 216209800
22	WCI 216063510
23	INSULATION (CUT TO SIZE)
28	SHELF FRONT NARROW (4)
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5303297490
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206256
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
