FFU17M7HWC 07 – SYSTEM

FFU17M7HWC 07 – SYSTEM

Written by

in

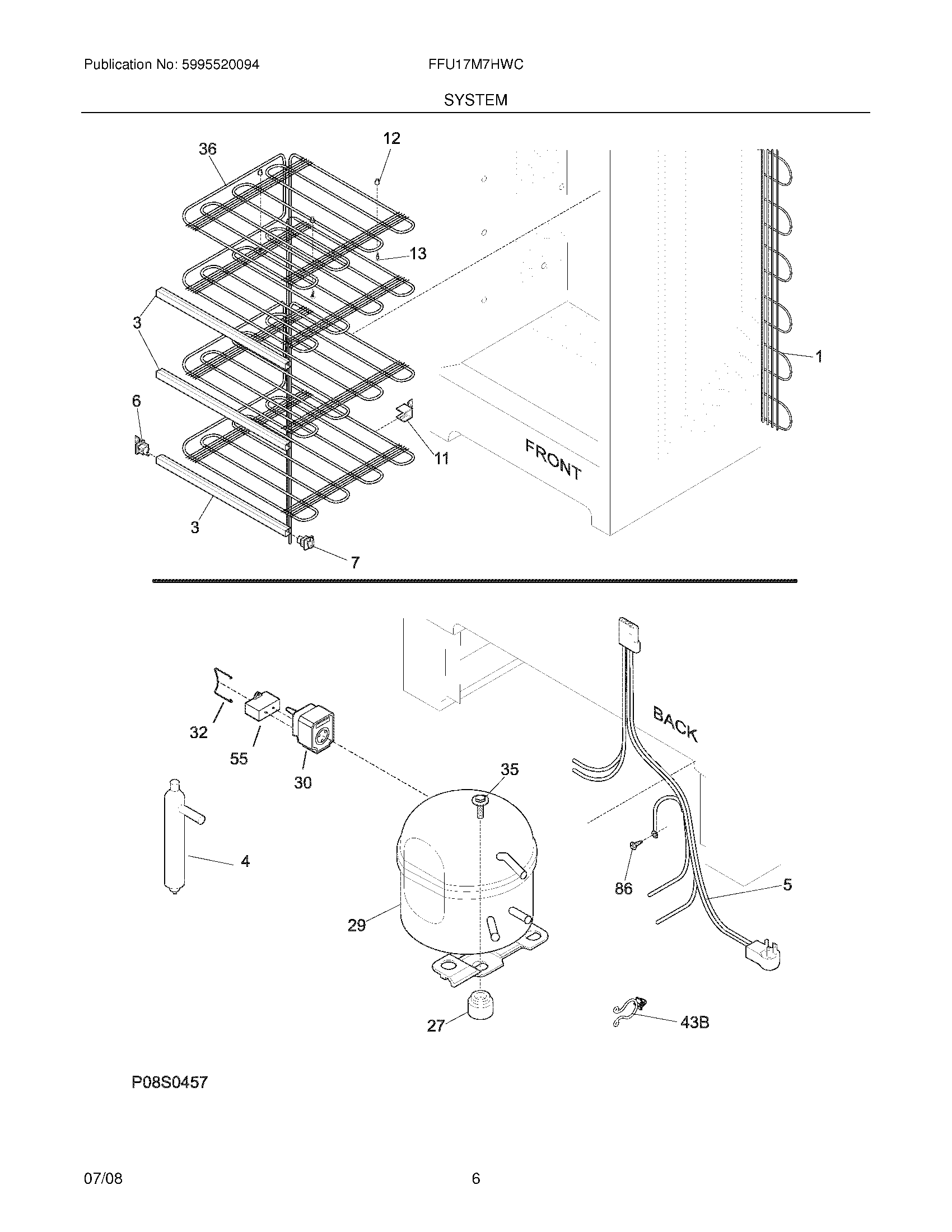

FFU17M7HWC 07 – SYSTEM

Products

PositionProduct
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI297366805 Frigidaire Refrigerator Cord
NIWCI 216502500
NIWCI 297102800
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5297171900 Frigidaire Refrigerator Main Harness
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13SCREW, HEX SEMS, 8-18AB X 1.00, EVAP
27216498900 Frigidaire Refrigerator Grommet
29No.5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30297051003 Frigidaire Start Relay
32CLAMP, ELEC CONT MTG, COMPRESSOR
35WCI 297177200
36WCI 297212000
43B297315800 Frigidaire Refrigerator Clip
55Capacitor-run,run ,12 MF
86216036601 Frigidaire Refrigerator Screw
