FFU17M7HWE 07 – SYSTEM

FFU17M7HWE 07 – SYSTEM

Written by

in

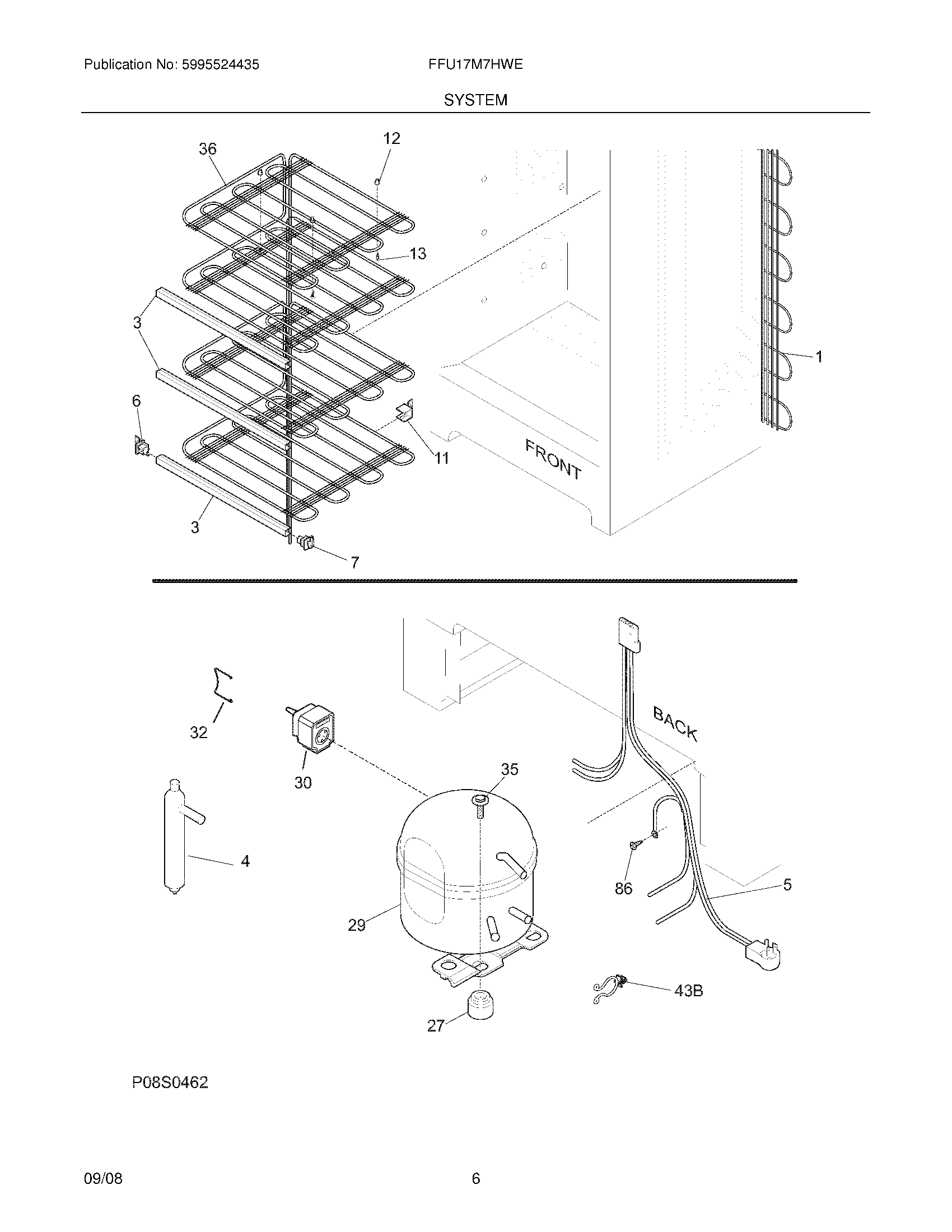

FFU17M7HWE 07 – SYSTEM

Products

PositionProduct
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NI297366805 Frigidaire Refrigerator Cord
NIWCI 216502500
NIWCI 297102800
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5297171900 Frigidaire Refrigerator Main Harness
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13SCREW, HEX SEMS, 8-18AB X 1.00, EVAP
27216498900 Frigidaire Refrigerator Grommet
29No.5304511983 Frigidaire Refrigerator Compressor Assembly Kit
30297051003 Frigidaire Start Relay
32CLAMP, ELEC CONT MTG, COMPRESSOR
35WCI 297177200
36WCI 297212000
43B297315800 Frigidaire Refrigerator Clip
86216036601 Frigidaire Refrigerator Screw
